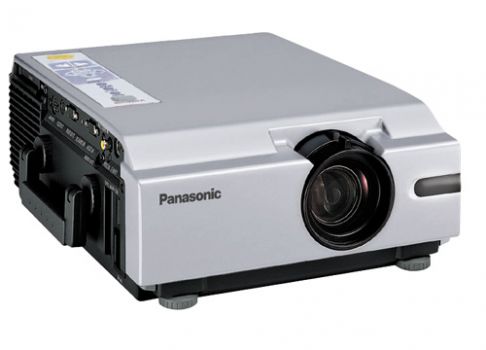

Known as the PT L759XE, this LCD projector by Panasonic features basic specs of 3100 ANSI lumens, a contrast of 450:1 at a XGA 1024 x 768 resolution. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. Looking at practical performance, up to 485 cm can be illuminated with 3100 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 323 cm. This is a discontinued model that is no longer officially distributed by Panasonic. Important maintenance note: It is no longer possible to procure replacement lamps for this model.
Display Type
3 x 1,3" psi TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3100
Screen
1033 Lux (200 cm Screen width)
Contrast
450:1 full on/off
450:1 full on/off
Black Level
6,8889 min. Lumen
2,311 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM Pal 60 NTSC 4,43
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Cinch Video in
D-sub 15pin in
VGA Ausgang
S Video Eingang
RS232C Controuler
Mini Jack in Aus.
USB in
RS 232 C
Maus Port
DVI Eingang
YUV über D-sub 15pin in
Freeze
