Panasonic PT F300NTE/U


PANASONIC PT-F300NTU

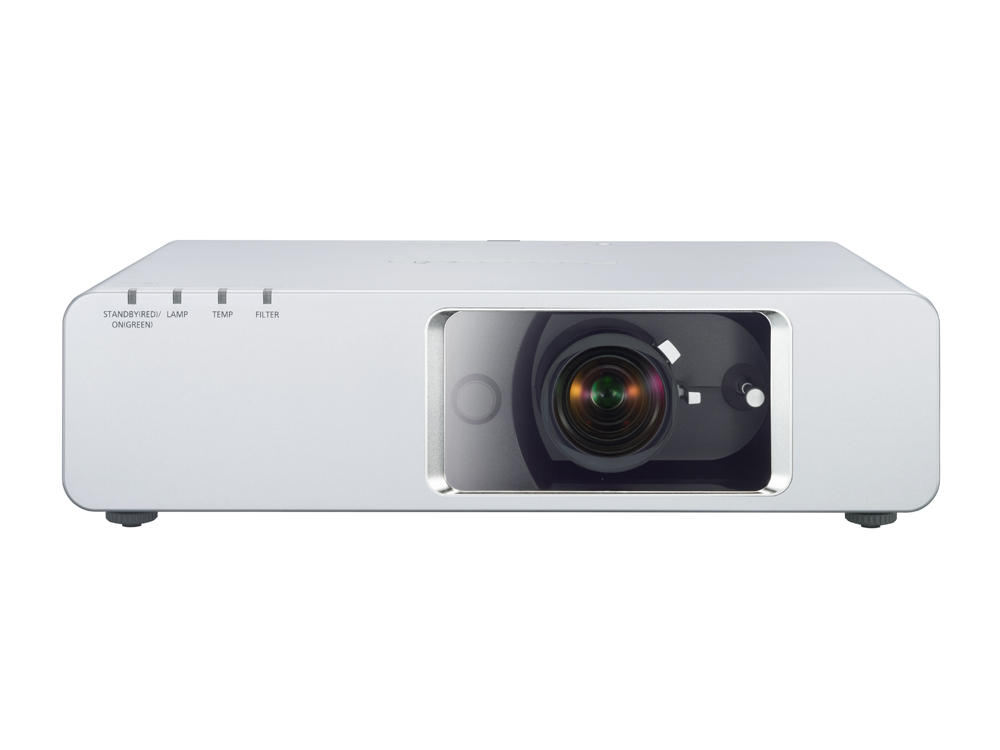

Image Panasonic PT F300NTE/U
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The equipment of the Panasonic PT F300NTE projector includes 4000 ANSI lumens, a contrast of 600:1 with a XGA 1024 x 768 display. According to Panasonic, the lamp has a durability of 5000 hours, achieving a lifespan of 6.8 years when used for 2 hours a day.
Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Lens Shift Calculator helps find the optimal installation dimensions.
A look at the light output reveals: The 4000 ANSI lumens are sufficient to illuminate an image width of up to 551 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 367 cm.
For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Since entering the market in 2008, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type       3 x 0,8" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
4000
Screen
1333 Lux (200 cm Screen width)
Contrast 600:1 full on/off 600:1 full on/off
Black Level 6,6667 min. Lumen 2,233 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-27%
 Lens shift
50%  75cm
50%  75cm
27%  54cm
27%  54cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 250W UHM Lamp
Article Nr.: ET-LAF100
Order Lamp
77,18 - 260,55 €
Light Life 5000 h.
Operating Costs
| cheap costly |
1
 11,63% / 0,05 €
Calculated brightness quality
The screen width may also be larger. Perfect
296 - 580 cm
Lux: 1333 Lux
Contrast: 600:1
Candela pro m²: 425 cd/m²
Foot-Lamberts: 124 fL
75 cm

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,2
Objective F=1,7-2,6 f=24,0-47,2 mm
Throw Ratio 1,48-2,9:1 show
Audio 1 x 5W Mono
Connections DVI-I in
D-sun 15pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RS232C
RJ45 in
Ceiling Mounting Yes, is possible.
Power 330W / 4,5W standby
Size WxHxD 432 x 128,5 x 323 mm (17"x5,1"x12,7") 17,86 L/dm³
Operating Noise -
Key: 171 cm
Shift: 75 cm

Shift: 54 cm

Shift: 54 cm
Key: 171 cm
Shift: 75 cm

Weight 6,20 kg / 13,67 lbs.
Keystone Vert.: +/-30°
Illumination 80%
Frequenz H-sync: 15-91 kHz
V-sync: 50-85 Hz
Range max.: 108 MHz
Foot-Lamberts 124 fL / max. 551 cm screen width
Candela m² 425 cd/m²
Features Direkt Power Off
Lens shift Funktion
Freeze
Blackboard Modus
User logo
Kensington Slot
Gamma correction
Password protection
Remote control with laser pointer
PJLink™
Control via web browser
Wi-Fi network compatible.
Lan network compatible.
Overscan adjustable
Digital Zoom
Picture-by-picture
Screen Mirroring -
In Comparison
The Panasonic PT F300NTE/U compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
49 Weight:
70
Contrast:
1 dB: 0
Black level:
75 Power cons.:
96
Picture Total Points:42 Projector Total Points:0
Popularity Top 100
4 popularity points 8 popularity points 8 popularity points 2 popularity points 3 popularity points 6 popularity points
Points:
6
Ranking: 1064 (From: 7737)
Optional accessories
lamp ruby Ruby-LMP20236118,20 €
lamp OriginalET-LAF100 / ET-LAP770 / ET-LAF100A260,55 €
Compatible lamp LMP-K1655077,18 €
air filter compatible Alternative zu:ET-ACF10050,28 €
Universal Remote Fernb-uni-V322,31 €
remote control OriginalN2QAYB000308EOL €
air filter OriginalET-ACF100EOL €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
