Model Overview

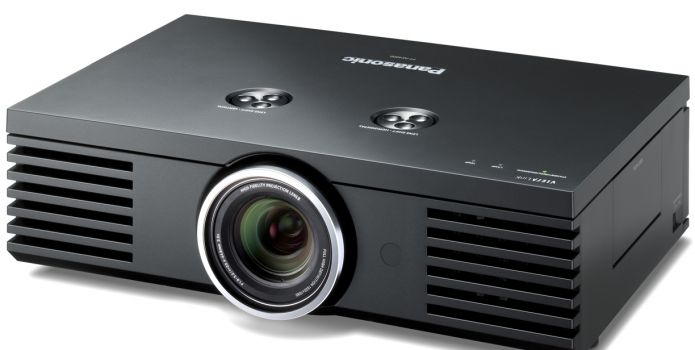

As a projector for the High-End Homecinema sector, the Panasonic PT AE4000E is equipped with 1600 ANSI lumens, a HDTV 1920 x 1080 resolution and a contrast of 100000:1. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
For distortion-free image alignment, the projector offers both a lens shift function and keystone correction. The amount of leeway the lens provides can be checked in the Distance Calculator.
Looking at practical performance, up to 406 cm can be illuminated with 1600 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 271 cm.
For media input, video signals up to 1080P are supported.
In the specifications, the operating noise is listed at a mere 22 decibels, indicating very quiet cooling. Since entering the market in 2009, production has been discontinued; the manufacturer no longer actively offers the model. In our projector directory, the device still generates high interest.

Display Type

3 x 0,74" D7 LCD TFT Panel
HDTV 16/9 Liquid Crystal Display

Ansi-Lumen

Projector

1600

Screen

711 Lux (200 cm Screen width)

Contrast

100000:1 full on/off

Black Level

0,0160 min. Lumen

0,007 min. Lumen

Lens shift

Vert.: +/-100% Hori.: +/-40%

Lens shift	100%	113cm
	100%	113cm
	40%	80cm
	40%	80cm

+ Projector

Resolution

HDTV 1920 x 1080
2.073.600 Pixel

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p

Disc Recognition

DVD | HD Blu-ray | ~~3D Blu-ray~~ | ~~4K UHD Blu-ray~~

Application

High-End Homecinema | Small screen width, rooms with very little ambient light below 50 lumens.

Light Source

170W UHM Lamp
Article Nr.: ET-LAE4000

Order Lamp
70,59 - 112,84 €

Light Life

2000 h. 3000 h. in eco Mode

Operating Costs

Calculated brightness quality Perfect

274 - 546 cm


	Lux:	711 Lux
	Contrast:	100000:1
	Candela pro m²:	226 cd/m²
	Foot-Lamberts:	66 fL

113 cm

•

Focus

Powered

Zoom

Powered 2

Objective

F=1,9-3,2 f=22,4-44,8 mm

Throw Ratio

1,37-2,73:1 show

Audio

Nein

Connections

3 x HDMI 1.3 in
D-sub 15pin in
2 x YUV in
S-Video in
Cinch Video in
RS232C Din 9pin in
2 x 12V Trigger out

Ceiling Mounting

Yes, is possible.

Power

240W

Size WxHxD

460 x 130 x 300 mm (18,1"x5,1"x11,8") 17,94 L/dm³

Operating Noise

22dB

Key: 158 cm Shift: 113 cm
Shift: 80 cm		Shift: 80 cm
	Key: 158 cm Shift: 113 cm

Weight

7,30 kg / 16,09 lbs.

Keystone

Vert.: +/-30°

Illumination

Frequenz

Foot-Lamberts

66 fL / max. 406 cm screen width

Candela m²

226 cd/m²

Features

Full HD 1080P compatible

Lens shift Funktion

Freeze

Eco Mode

Kensington Slot

Gamma correction

Dynamic iris

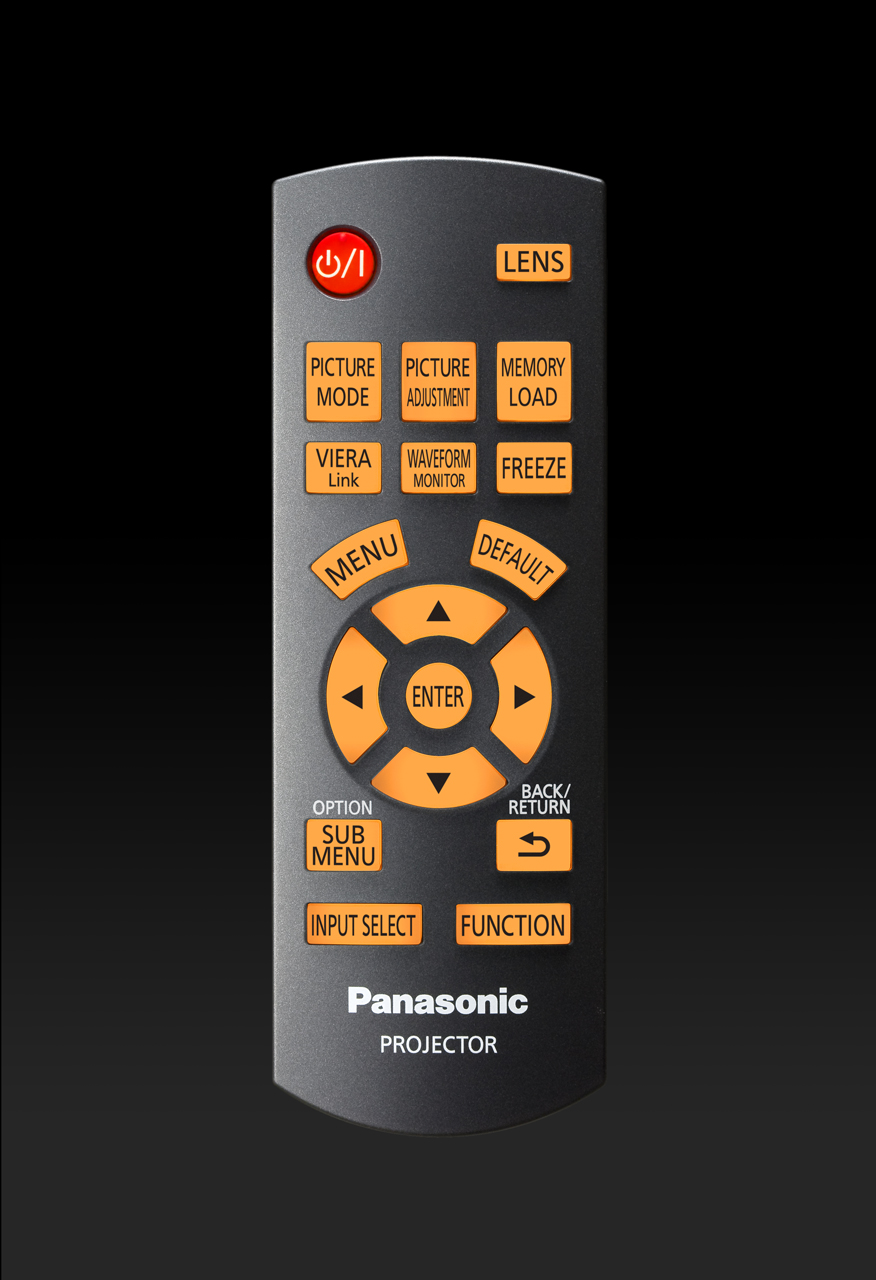

Remote control with backlight

Overscan adjustable

De-interlacer with 3:2 pull down.

Screen Mirroring

Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads

In Comparison

The Panasonic PT AE4000E/U compared to others not current "High-End Homecinema" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

100

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

6 (From: 508)

In Test

Optional accessories
	lamp ruby	Ruby-LMP19319	112,84 €
	lamp incl. air filter Original	ET-LAE4000	EOL €
	Compatible lamp	LMP-K19319	70,59 €
	Universal Remote	Fernb-uni-V3	22,31 €
	remote control Original	N2QAYB000450	EOL €
	air filter Original	TXFKN01VKF5	EOL €
	Ceiling Mount 100-120	Halterung100	47,86 €

Status

2009 Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Panasonic Website

Product Sheet english "E"

Product Sheet english "U"

Product Sheet english HC

User Manual english (6.51 MB)
