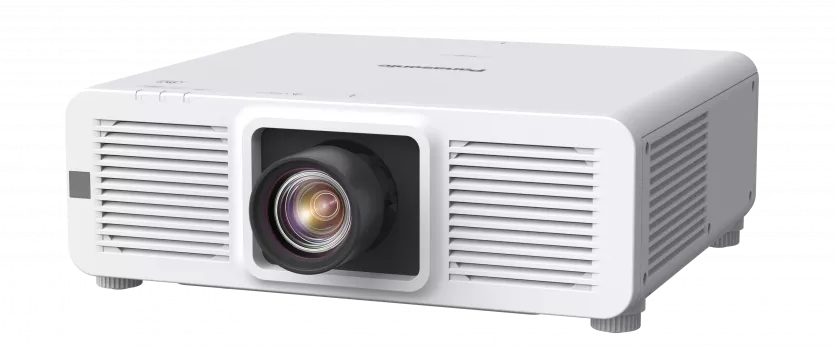

Based on DLP technology, the Panasonic PT-RZ7L device delivers 7500 ANSI lumens, a resolution of WUXGA 1920 x 1200 and a contrast of 15000:1 as a projector. Using this laser phosphor technology, the light source runtime is rated at 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Distance Calculator. Looking at practical performance, up to 880 cm can be illuminated with 7500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 587 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. Thanks to support for optional Miracast and Airplay, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen.
Display Type
1 x 0,67" DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
7500
Screen
3333 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,5000 min. Lumen
0,222 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel UHD (4K2K) 3840 x 2160 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3333 Lux
Contrast:
15000:1
Candela pro m²:
1062 cd/m²
Foot-Lamberts:
310 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2x HDMI (Deep Color, HDCP 2.3, 4K/60p input5)
D-sub 9-pin in und out (RS-232C compliant)
Audio Mini Jack in und out (for wired Remote)
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Type A (for power supply, DC 5 V, 2 A)
RS232C Din 9 pin in
RJ45 in
HDBaseT (100Base- TX)
Open slot for function boards, Intel® SDM
Full HD 1080P compatible
