Panasonic PT F200NTE/U/A


PANASONIC PT-F200NTU
Image Panasonic PT F200NTE/U/A
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on LCD technology, the Panasonic PT F200NTE projects images in a Standard-Portabel environment, with technical specs listing 3500 ANSI lumens, a contrast of 400:1 and a XGA 1024 x 768 resolution. The manufacturer specifies a runtime of 3000 hours for this projector's lamp.
To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction. Precise setup distances can be determined in the Projection Calculator.
A look at the light output reveals: The 3500 ANSI lumens are sufficient to illuminate an image width of up to 515 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 343 cm. Additionally, a built-in ambient light sensor measures the room lighting and automatically adjusts the projection settings.
For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
This model dates back to 2008 and is no longer part of Panasonic's current product range.
Display Type       3 x 0,7" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
3500
Screen
1167 Lux (200 cm Screen width)
Contrast 400:1 full on/off 400:1 full on/off
Black Level 8,7500 min. Lumen 2,939 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-32%
 Lens shift
50%  75cm
50%  75cm
32%  64cm
32%  64cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 250W UHM Lamp
Article Nr.: ET-LAF100
Order Lamp
77,18 - 260,55 €
Light Life 3000 h.
Operating Costs
| cheap costly |
1
 20,93% / 0,09 €
Calculated brightness quality
The screen width may also be larger. Perfect
278 - 554 cm
Lux: 1167 Lux
Contrast: 400:1
Candela pro m²: 370 cd/m²
Foot-Lamberts: 108 fL
75 cm

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,2
Objective F=1,7-2,6 f=21,6-43,0 mm
Throw Ratio 1,39-2,77:1 show
Audio 1 x 3W Mono

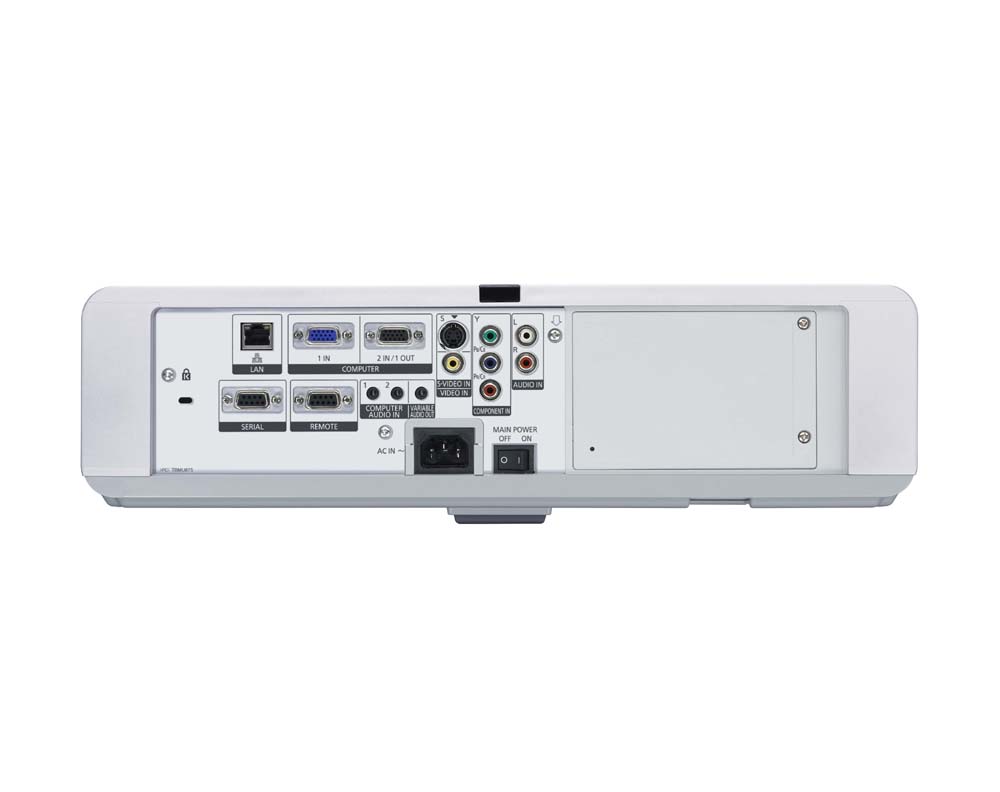

Connections D-sun 15pin in und out
YUV in
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RJ45
RS232C
Ceiling Mounting Yes, is possible.
Power 330W / 4,5W standby
Size WxHxD 432 x 124,5 x 319 mm (17"x4,9"x12,6") 17,09 L/dm³
Operating Noise -
Key: 161 cm
Shift: 75 cm

Shift: 64 cm

Shift: 64 cm
Key: 161 cm
Shift: 75 cm

Weight 6,20 kg / 13,23 lbs.
Keystone Vert.: +/-30°
Illumination -
Frequenz H-sync: 15-91 kHz
V-sync: 50-85 Hz
Range max.: 108 MHz
Foot-Lamberts 108 fL / max. 515 cm screen width
Candela m² 370 cd/m²
Features Direkt Power Off
Lens shift Funktion
Freeze
Blackboard Modus
User logo
Kensington Slot
sRGB
Gamma correction
Password protection

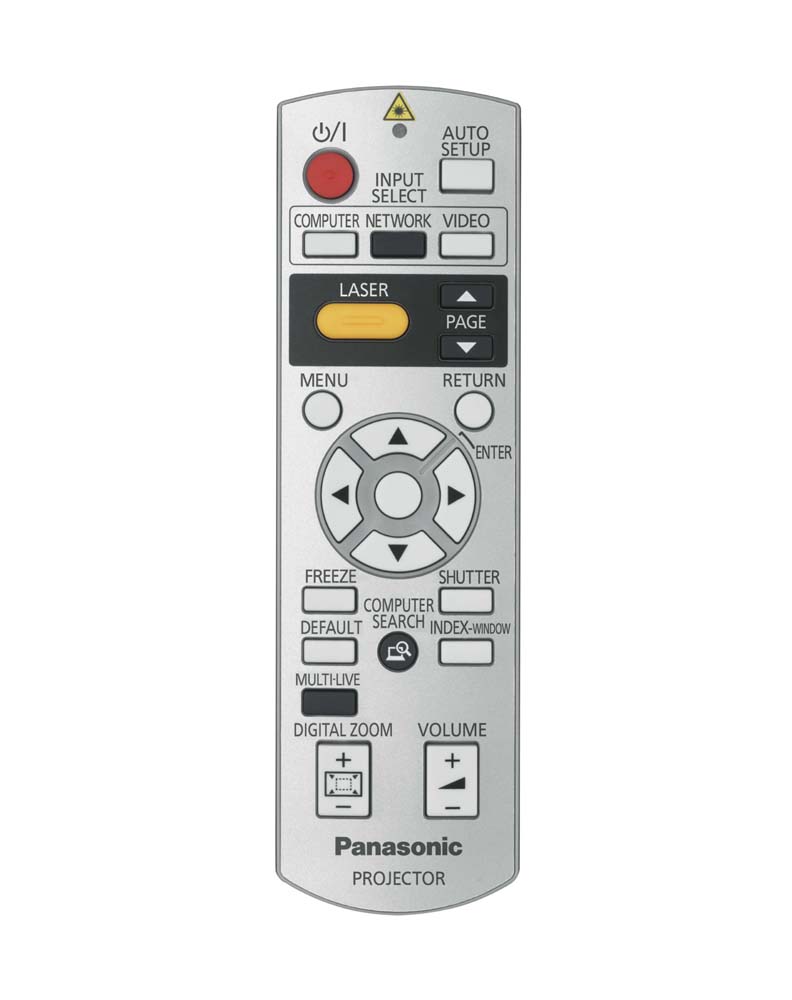

Remote control with laser pointer
PJLink™
Control via web browser
Wi-Fi network compatible.
Lan network compatible.
Ambient Light Sensor.
Screen Mirroring -
In Comparison
The Panasonic PT F200NTE/U/A compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
42 Weight:
70
Contrast:
1 dB: 0
Black level:
67 Power cons.:
96
Picture Total Points:37 Projector Total Points:0
Popularity Top 100
2 popularity points 14 popularity points 10 popularity points 1 popularity points 3 popularity points 7 popularity points
Points:
7
Ranking: 967 (From: 7737)
Optional accessories
lamp ruby Ruby-LMP20236118,20 €
lamp OriginalET-LAF100 / ET-LAP770 / ET-LAF100A260,55 €
Compatible lamp LMP-K1655077,18 €
Universal Remote Fernb-uni-V322,31 €
remote control OriginalN2QAYB000152EOL €
air filter OriginalET-RFF100EOL €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
