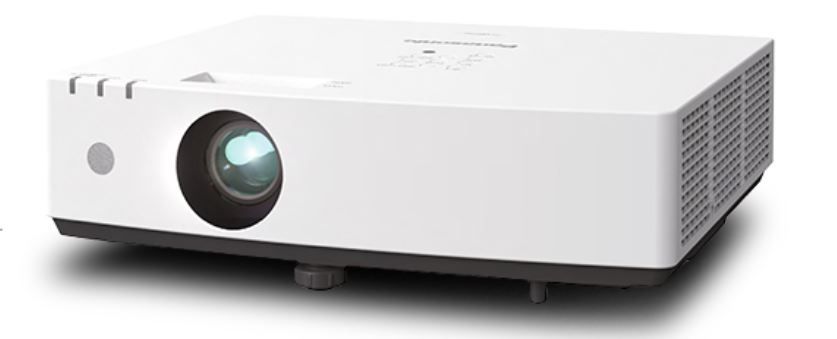

Based on LCD technology, the Panasonic PT-LMX420 device delivers 4200 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 3000000:1 as a projector. With its laser unit, the projector offers a specified light lifespan of 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. Regarding projection size, the value of 4200 ANSI lumens allows for an image width of up to 564 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 376 cm. For media input, video signals up to 1080P are supported. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Display Type
3 x 0,63" LCD Panel XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
4200
Screen
1400 Lux (200 cm Screen width)
Contrast
3000000:1 full on/off
3000000:1 full on/off
Black Level
0,0014 min. Lumen
0 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p Media player formats: jpeg, bmp, png, gif, tif,
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
2x HDMI in (with HDCP, Deep Color, 4K/30p)
D-sub 15pin in und out
2x Mini Jack Audio in
1x Mini Jack Audio out
RS232C Din 9 pin in
RJ45 (10Base-T, 100Base-TX) in
USB TYP A in
Full HD 1080P compatible
