Brief Introduction
Beta 2.5 |

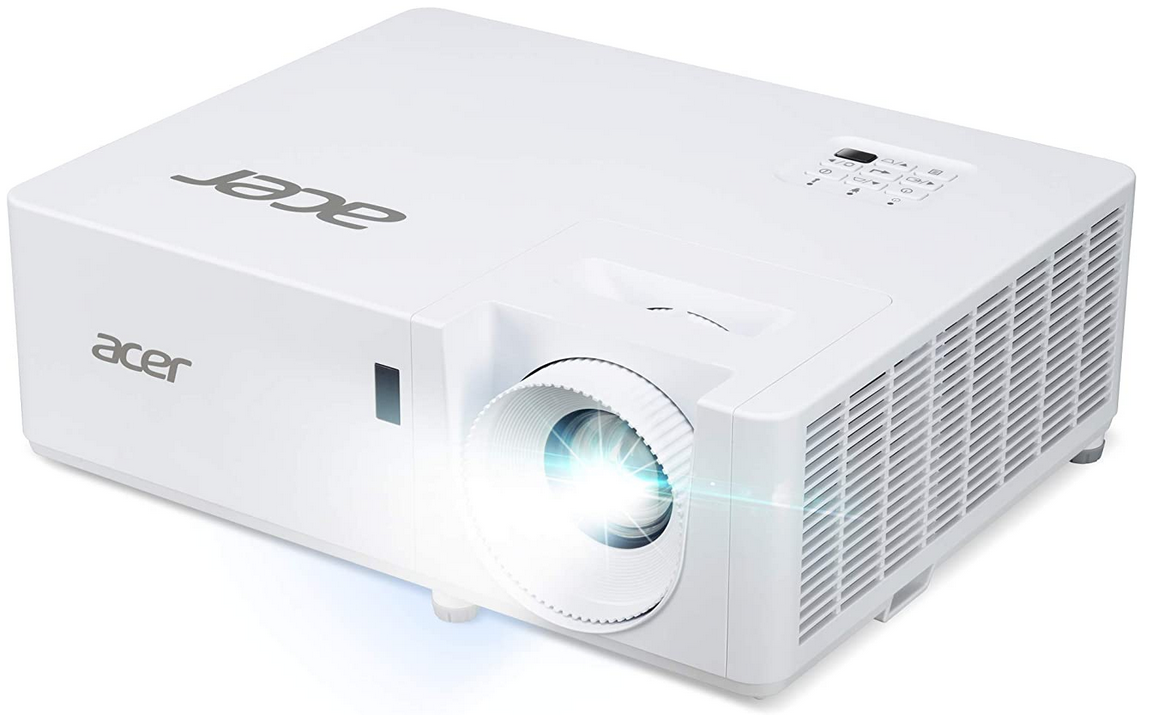

The Acer model PL1320W is a DLP laser projector with WXGA 1280 x 800 resolution and a contrast of 2000000:1. The service life is 30000 hours due to the laser, which is over 20.5 years if enjoyed for four hours a day. A built-in horizontal and vertical keystone correction provides freedom when positioning the projector. Thanks to the brightness of 4500 Ansi lumens, a picture width of 682 cm is possible. The projector can also handle slightly brighter rooms with a narrower image width (we recommend max. 455 cm). A smartphone with an MHL connection can be connected directly to the MHL/HDMI port for 1080p / 60 Hz image mirroring (screen mirroring). Playback of 1080P and 4K (compressed) is also no problem for the projector. The projector was launched in 2019 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,65" DLP
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4500 / 3600 im Eco Mode |
Screen |
1800 Lux (200 cm Screen width) |
| Contrast |
2000000:1 |
2000000:1
|
| Black Level |
0,0023 min. Lumen |
0,001 min. Lumen |
| Offset |
62% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p |
| 3D Compatibility |
Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser
|
|
| Light Life |
30000 h. |
| Operating Costs |
0,00 € Laser
|
|
238 - 308 cm
|
 |
|
Lux: |
1800 Lux |
|
Room light max.: |
360 Lux |
|
Candela pro m²: |
572 cd/m² |
|
Foot-Lamberts: |
167 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
F=2,5-2,78 f=16,91-21,60 mm |
| Throw Ratio |
1,19-1,54:1 show |
| Audio |
10W |

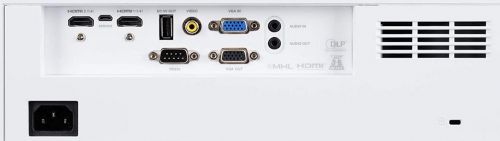

| Connections |
1x HDMI 1.4a
1x HDMI 2.0b mit MHL 2.2
1x D-Sub 15 pin in
1x Cinch Video in
1x Mini Jack Audio in
1x Micro-USB
1x USB Type A für WiFi
1x RS232
1x RJ45
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
337 x 119 x 265 mm (13,3"x4,7"x10,4") 10,63 L/dm³
|
| Operating Noise |
31 / 28 dB in Eco Mode |
Key: 215 cm |
Key: 137 cm |
| Key: 137 cm |
| |
|
|
| Weight |
4,50 kg / 8,82 lbs. |
| Keystone |
Vert.: +/-30° automatisch
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
167 fL
/ max. 682 cm screen width |
| Candela m² |
572 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Automatic and manual vertical keystone correction
Optional Wi-Fi network compatible.
Lan network compatible.
Wireless Screen Mirroring for iOS/Android/Win10/MacOS.
|
|
über HDMI MHL |
In Comparison
The Acer PL1320W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
55 |
Weight: |
|
78 |
| Contrast: |
|
40 |
dB: |
|
46 |
| Black level: |
|
100 |
Power cons.: |
|
0 |
| Picture Total Points: | 65 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
1948 (From: 7662) |
|
|
|
|
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2024-10-02
Created: 2021-06-30 11:18:14
|
