Brief Introduction
Beta 2.5 |
The Acer H5370BD 3D BrilliantColor DLP home cinema projector has 2500 Ansi lumens, a contrast of 13000:1 and an HDTV 1280 x 720 resolution. The lamp in the projector is specified with a lamp life of 5000 hours, which converts to over 6.8 years at 2 hours per day. Due to the brightness of 2500 Ansi lumens, a picture width of 508 cm is possible. In room light, the picture should be max. 339 cm wide. The HDMI MHL (Mobile High-Definition Link) port allows 1080p / 60 Hz image mirroring (screen mirroring) to be transmitted from a smartphone while it is being charged at the same time via the connection. The projector can also play 1080P and 3D without any problems. The projector is very quiet compared to other projectors with an operating noise of 29 decibels. The model built in 2013 is no longer offered by Acer.
|
| Display Type |
1 x 0,62" DC3 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 / 2000 im Eco Mode |
Screen |
1111 Lux (200 cm Screen width) |
| Contrast |
13000:1 full on/off |
13000:1 full on/off
|
| Black Level |
0,1923 min. Lumen |
0,085 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
| Application |
Homecinema | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

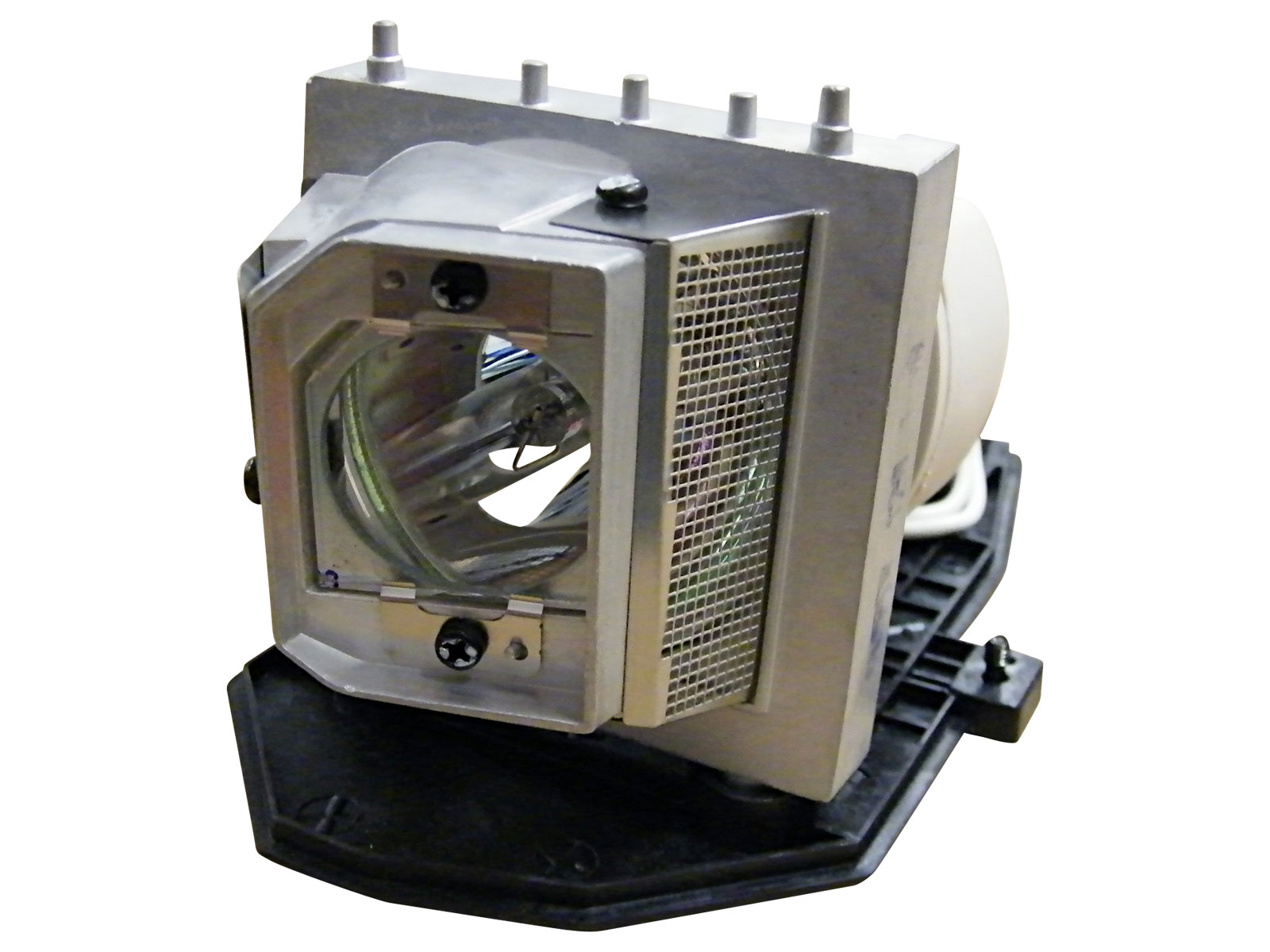

190W P-VIP Lamp
Article Nr.: MC.JG511.001
|
|
| Light Life |
5000 h. 6000 in Eco Mode |
| Operating Costs |
|
|
310 - 340 cm
|
 |
|
Lux: |
1111 Lux |
|
Room light max.: |
222 Lux |
|
Candela pro m²: |
353 cd/m² |
|
Foot-Lamberts: |
103 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,5-2,6 f=21,86-24,00 mm |
| Throw Ratio |
1,55-1,70:1 show |
| Audio |
1 x 2W |
| Connections |
2 x HDMI 1.4a mit MHL in
D-sub 15 pin in
YUV in
S-Video in
Cinch Video in
Mini Jack Audio in
USB Typ B
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
288 x 83 x 225 mm (11,3"x3,3"x8,9") 5,38 L/dm³
|
| Operating Noise |
29 / 26 dB in Eco Mode |
|
| Weight |
2,40 kg / 5,29 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 30-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
103 fL
/ max. 508 cm screen width |
| Candela m² |
353 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
BrilliantColor™
6-segment colour wheel
2x digital zoom
|
|
über HDMI MHL |
In Comparison
The Acer H5370BD compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
70 |
| Black level: |
|
98 |
Power cons.: |
|
0 |
| Picture Total Points: | 41 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
226 (From: 984) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-09-20
|
