Brief Introduction
Beta 2.5 |
The X125H 3D BrilliantColor DLP projector from Acer has 3300 Ansi lumens, a contrast of 20000:1 and an XGA 1024 x 768 resolution. The service life of the lamp is up to 10000 hours, which equates to over 13.7 years at 2 hours per day. 3300 Ansi lumens ensure that a picture width of 500 cm is also possible. However, if room light is available, the picture should be a maximum of 333 cm wide. Playing 1080P and 3D is also no problem for the projector. This model is no longer offered by Acer.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3300 / 2640 im Eco Mode |
Screen |
1100 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,1650 min. Lumen |
0,055 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

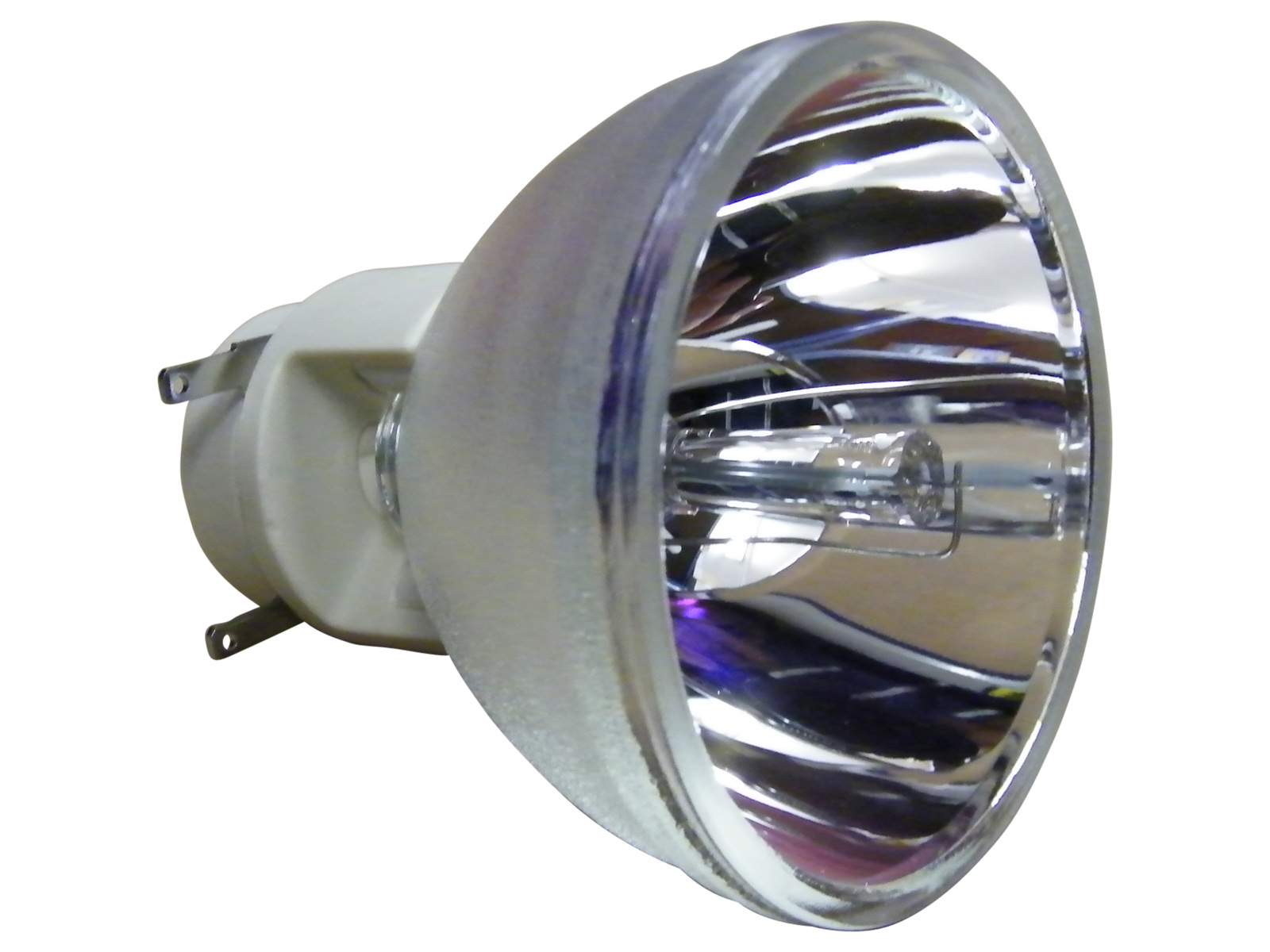

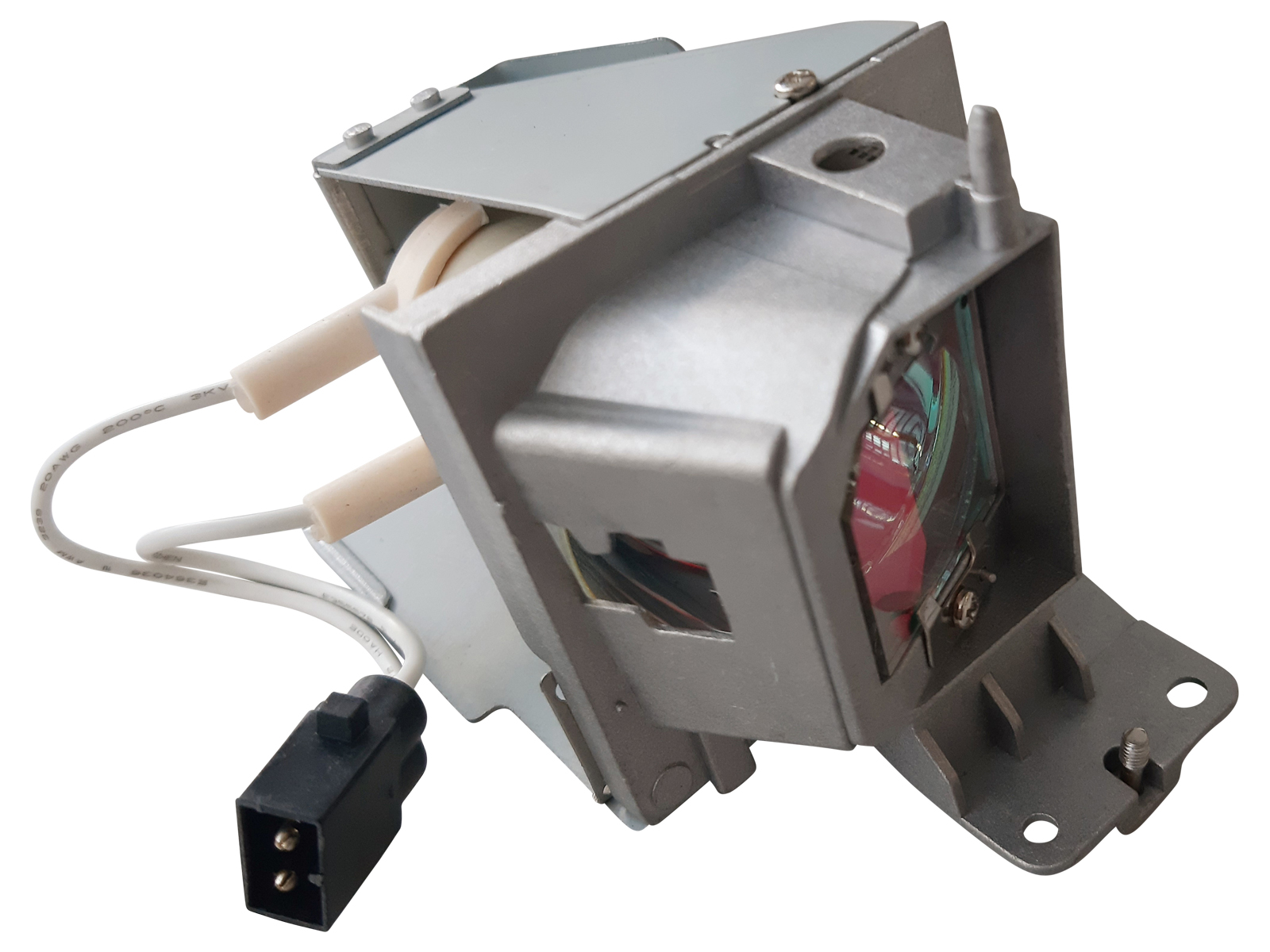

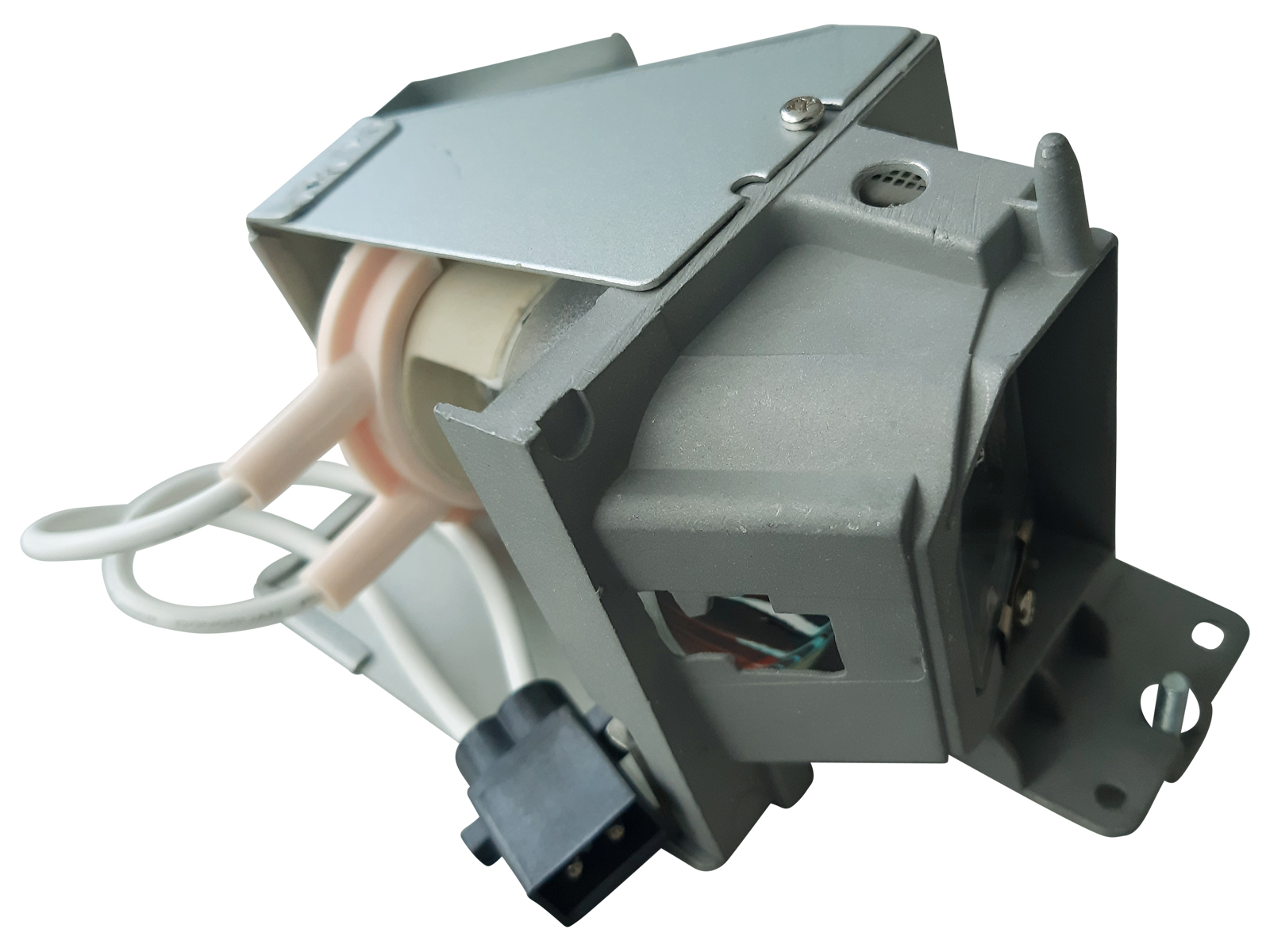

195W P-VIP Lamp
Article Nr.: MC.JN811.001
|
|
| Light Life |
5000 h. 10000 h. in Eco Mode |
| Operating Costs |
|
|
388 - 432 cm
|
 |
|
Lux: |
1100 Lux |
|
Room light max.: |
220 Lux |
|
Candela pro m²: |
349 cd/m² |
|
Foot-Lamberts: |
102 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,11 |
| Objective |
F=2,41-2,53 f=21,85-24,01 mm |
| Throw Ratio |
1,94-2,16:1 show |
| Audio |
1 x 3W |
| Connections |
HDMI 1.4a in
D-sub 15pin in
Mini Jack Audio in
USB Typ B in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
235W |
| Size WxHxD |
314 x 93 x 223 mm (12,4"x3,7"x8,8") 6,51 L/dm³
|
| Operating Noise |
34 / 31 dB in Eco Mode |
|
| Weight |
2,50 kg / 5,51 lbs. |
| Keystone |
- |
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
102 fL
/ max. 500 cm screen width |
| Candela m² |
349 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
BrilliantColor™
6-segment colour wheel
Zoom/Digital 1:1.1/2x
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer X125H compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
40 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 47 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
1118 (From: 7662) |
|
|
|
|
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2016-07-08 16:13:22
|
| Data |
 Product Sheet english HC
User Manual english (2.38 MB)

|
Acer Website
