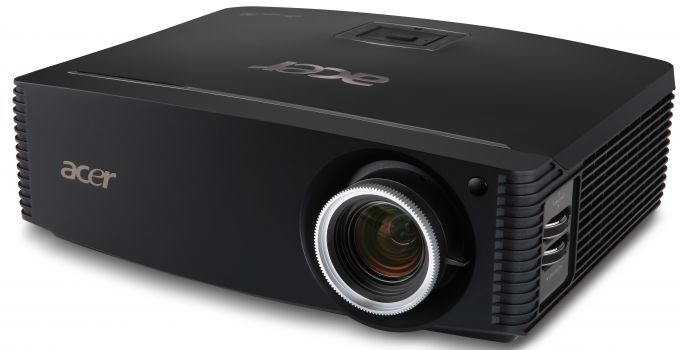

The projector P7203 by Acer operates as a BrilliantColor-DLP device with 5000 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 3200:1. The manufacturer specifies a runtime of 2000 hours for this projector's lamp. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Projector Calculator helps find the optimal installation dimensions. Regarding projection size, the value of 5000 ANSI lumens allows for an image width of up to 616 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 411 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. The projector was released in 2010 and is officially no longer distributed by Acer.
Display Type
1 x 0,7" DC3 DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5000 / 4000 im Eco Mode
Screen
1667 Lux (200 cm Screen width)
Contrast
3200:1 full on/off
3200:1 full on/off
Black Level
1,5625 min. Lumen
0,521 min. Lumen
Lens shift
Vert.: +65% --52% Hori.: +/-15%
Lens shift
13%
20cm
15%
30cm
15%
30cm
+
Projector 3 cm over screen top edge.
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Full HD 1080P compatible
