Brief Introduction
Beta 2.5 |
A brief introduction to the S1283WHne: The Acer 3D DLP projector offers 3200 Ansi lumens, a contrast of 13000:1 and a WXGA 1280 x 800 resolution. The lamp in the projector is specified with a lamp life of 4000 hours, which is over 5.5 years with a daily viewing time of 2 hours. With a projection ratio of just 0.617:1, this projector never gets in the way. For a 2m wide image, the projector only needs to be 123 cm away from the screen. As the S1283WHne is equipped with a microphone jack plug and 10W speaker, no additional audio system is required for presentations or training sessions. The HDMI MHL (Mobile High-Definition Link) port allows 1080p / 60 Hz image mirroring (screen mirroring) to be transmitted from the smartphone while it is being charged at the same time via the connection. Even 1080P video signals are no problem for the projector. The model built in 2015 is no longer offered by Acer.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3200 / 2560 im Eco Mode |
Screen |
1280 Lux (200 cm Screen width) |
| Contrast |
13000:1 full on/off |
13000:1 full on/off
|
| Black Level |
0,2462 min. Lumen |
0,098 min. Lumen |
| Offset |
-
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
210W P-VIP Lamp
Article Nr.: MC.JK211.00B
|
|
| Light Life |
4000 h. 6000 h. in Eco Mode |
| Operating Costs |
-
|
|
123 cm (no Zoom)
|
 |
|
Lux: |
1280 Lux |
|
Room light max.: |
256 Lux |
|
Candela pro m²: |
408 cd/m² |
|
Foot-Lamberts: |
119 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,8 f=7,51mm |
| Throw Ratio |
0,617:1 |
| Audio |
1 x10W |

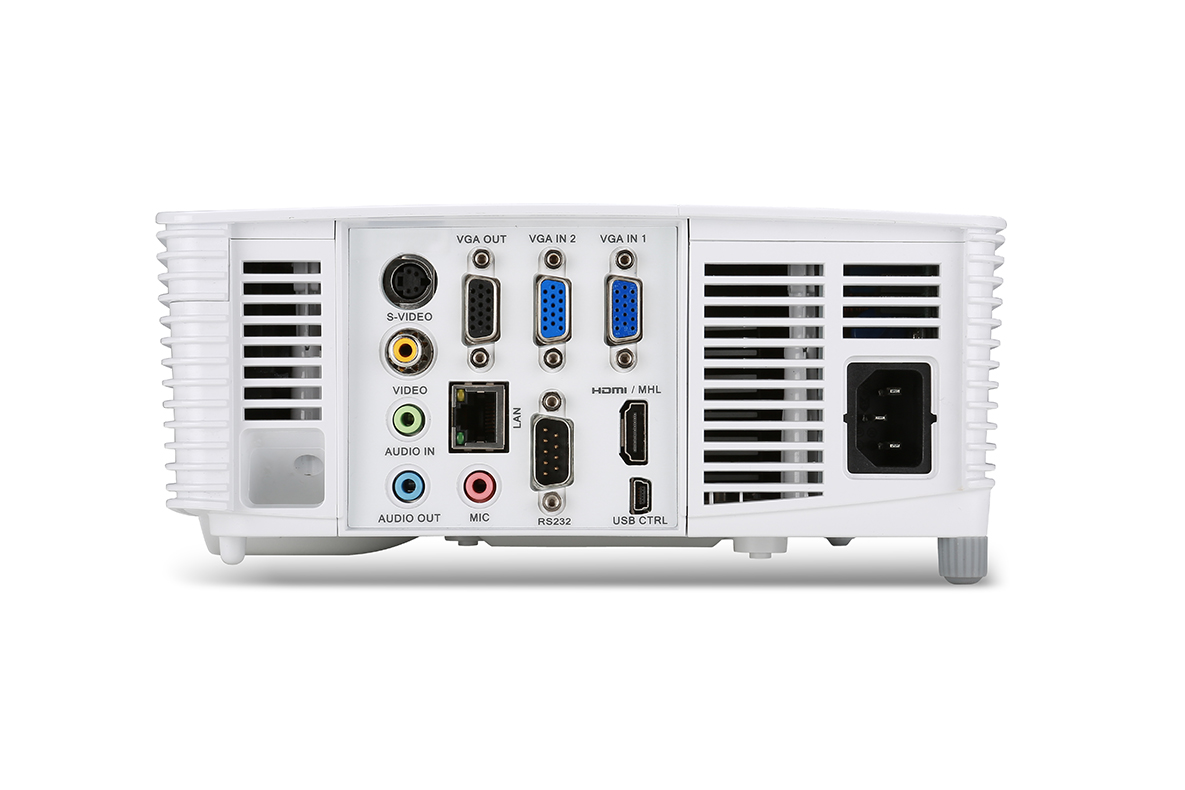

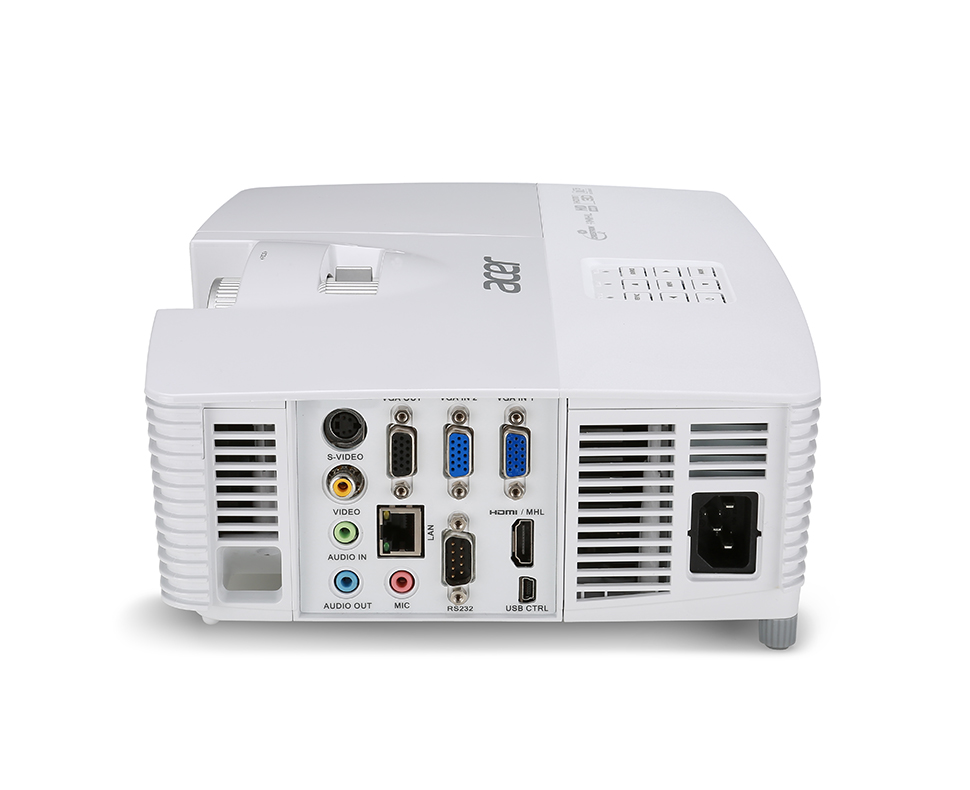

| Connections |
HDMI mit MHL in
2 x D-sub 15pin in 1 x out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB Typ B in
RS232C Din 9 pin in
Mikrofon in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
290W |
| Size WxHxD |
314 x 93 x 223 mm (12,4"x3,7"x8,8") 6,51 L/dm³
|
| Operating Noise |
31 / 28 dB in Eco Mode |
|
| Weight |
2,80 kg / 6,17 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
119 fL
/ max. 575 cm screen width |
| Candela m² |
408 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Kensington Slot
Lan network compatible.
Short-throw projector
Digital Zoom 2x
6 Segment Colour Wheel and ACBII+
|
|
über HDMI MHL |
In Comparison
The Acer S1283WHne compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
38 |
Weight: |
|
95 |
| Contrast: |
|
1 |
dB: |
|
59 |
| Black level: |
|
100 |
Power cons.: |
|
94 |
| Picture Total Points: | 46 |
Projector Total Points: | 83 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
694 (From: 974) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2015-01-19 11:16:20
|
