Brief Introduction
Beta 2.5 |

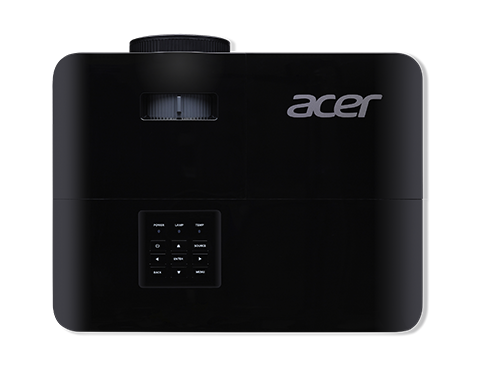

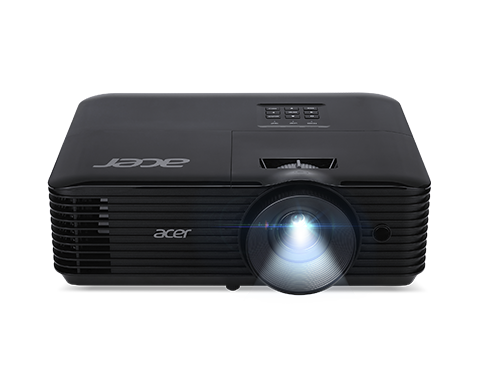

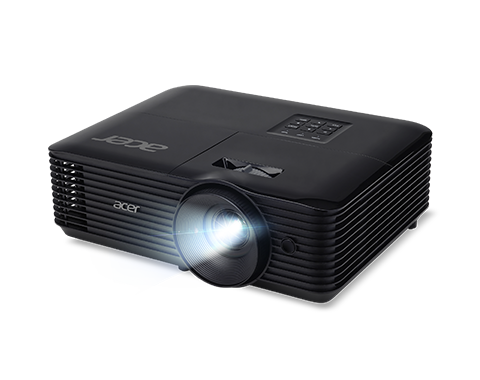

A brief introduction to the X1328WHK: The Acer 3D DLP projector offers 4500 Ansi lumens, a contrast of 20000:1 and a WXGA 1280 x 800 resolution. The lamp in the projector is specified with a lamp life of 10000 hours, which converts to over 13.7 years at 2 hours per day. Thanks to the brightness of 4500 Ansi lumens, a picture width of 682 cm is possible. The projector can also handle slightly brighter rooms with a narrower picture width (we recommend max. 455 cm). Video signals 1080P and 3D are also no problem for the projector.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4500 |
Screen |
1800 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,2250 min. Lumen |
0,09 min. Lumen |
| Offset |
65% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
UHP 220W Lamp
Article Nr.: UC.JR711.002
|
|
| Light Life |
6000 h. / 10000 h. Eco / 15000 Extrem Eco |
| Operating Costs |
|
|
308 - 344 cm
|
 |
|
Lux: |
1800 Lux |
|
Room light max.: |
360 Lux |
|
Candela pro m²: |
572 cd/m² |
|
Foot-Lamberts: |
167 fL |
|
 |
| 81 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 2x Digital |
| Objective |
F=2,41-2,53 f=21,85-24,00 mm |
| Throw Ratio |
1,54-1,72:1 show |
| Audio |
1 x 3W Mono |

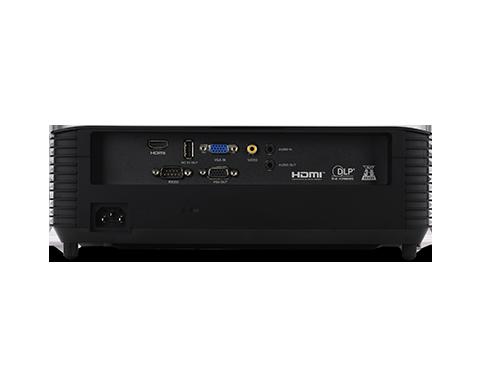

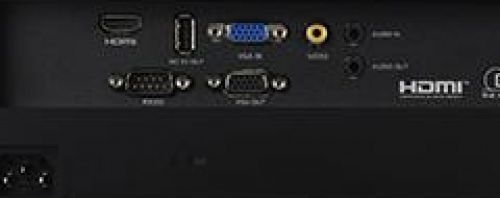

| Connections |
HDMI 1.4a in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
313 x 113,7 x 240 mm (12,3"x4,5"x9,4") 8,49 L/dm³
|
| Operating Noise |
32 / 24 dB in Eco Mode |
|
| Weight |
2,80 kg / 6,17 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
167 fL
/ max. 682 cm screen width |
| Candela m² |
572 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer X1328WHK compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
63 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
72 |
| Black level: |
|
97 |
Power cons.: |
|
0 |
| Picture Total Points: | 54 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
2727 (From: 7662) |
|
|
|
|
|
| Status |
2021 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (6.83 MB)

|
Acer Website
