Brief Introduction
Beta 2.5 |
The Acer P1173 standard portable 3D DLP projector has 3000 Ansi lumens, a contrast of 17000:1 and an SVGA 800 x 600 resolution. The service life of the lamp is up to 5000 hours, which is over 6.8 years with a daily viewing time of 2 hours. 3000 Ansi lumens ensure that a picture width of 477 cm is also possible. However, if room light is available, the picture should be max. 318 cm wide. A smartphone with MHL connection can be connected directly to the MHL/HDMI port and transmit a 1080p / 60 Hz image mirroring (screen mirroring) while the smartphone is being charged at the same time. The projector can also play 1080P and 3D without any problems. With an operating noise of just 30 decibels, the model is very quiet compared to others. The projector was launched in 2014 and is no longer sold by the manufacturer, but is still very popular in our projector database.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 / 2400 im Eco Mode |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
17000:1 full on/off |
17000:1 full on/off
|
| Black Level |
0,1765 min. Lumen |
0,059 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
-

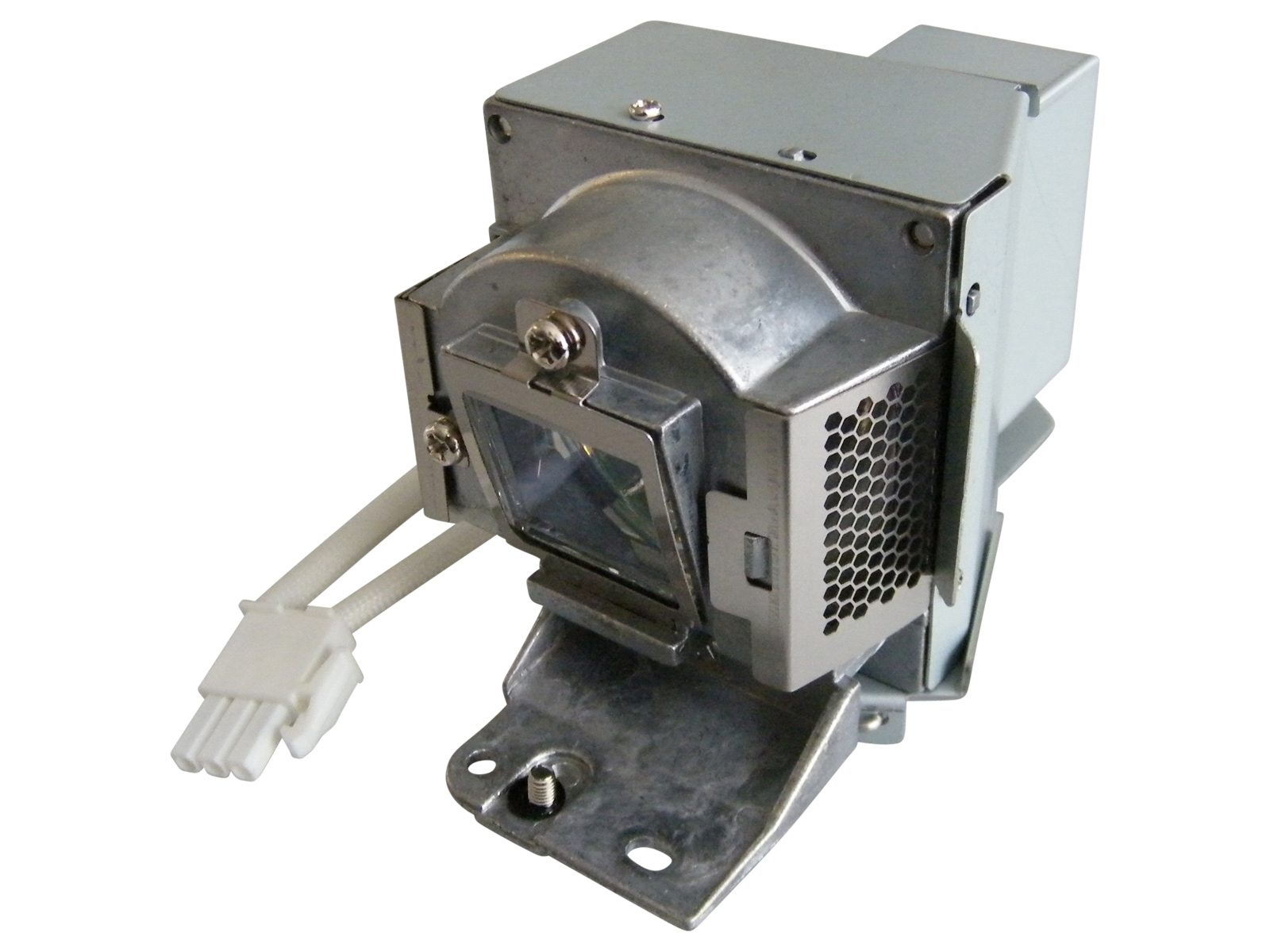

Article Nr.: MC.JH511.004
|
|
| Light Life |
5000 h. 6000 h. in Eco Mode |
| Operating Costs |
|
|
372 - 408 cm
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom 1,1 |
| Objective |
F=2,57-2,65 f=21,00-23,10 mm |
| Throw Ratio |
1,86-2,04:1 show |
| Audio |
1 x 3W |
| Connections |
HDMI mit MHL in
2 x D-sub 15pin in 1 x out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB Typ B in
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
240W |
| Size WxHxD |
264 x 78 x 220 mm (10,4"x3,1"x8,7") 4,53 L/dm³
|
| Operating Noise |
30 / 26 dB in Eco Mode |
|
| Weight |
2,00 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 30-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
93 fL
/ max. 477 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
6-segment colour wheel
2x digital zoom
|
|
über HDMI MHL |
In Comparison
The Acer P1173 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
49 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 45 |
Projector Total Points: | 79 |
|
| Popularity Top 100 |
|
| Points: |
|
30 |
| Ranking: |
30 (From: 7662) |
|
|
|
|
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2014-01-14 14:06:55
|
| Data |
 Product Sheet english HC
User Manual english (2.59 MB)

|
Acer Website
