Brief Introduction
Beta 2.5 |
The Acer P5403 standard portable 3D BrilliantColor DLP projector has 3500 Ansi lumens, a contrast of 3000:1 and an SXGA+ 1400 x 1050 resolution. The projector can illuminate a screen width of 515 cm well. Rooms with residual light can be created by the projector with a smaller image width, max. 343 cm is recommended here. The model is also Full HD 1080P compatible. The model was built by Acer in 2010 and is no longer current.
|
| Display Type |
1 x 0,52" DC DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3500 / 2800 im Eco Mode |
Screen |
1167 Lux (200 cm Screen width) |
| Contrast |
3000:1 full on/off |
3000:1 full on/off
|
| Black Level |
1,1667 min. Lumen |
0,389 min. Lumen |
| Offset |
71,33% show
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

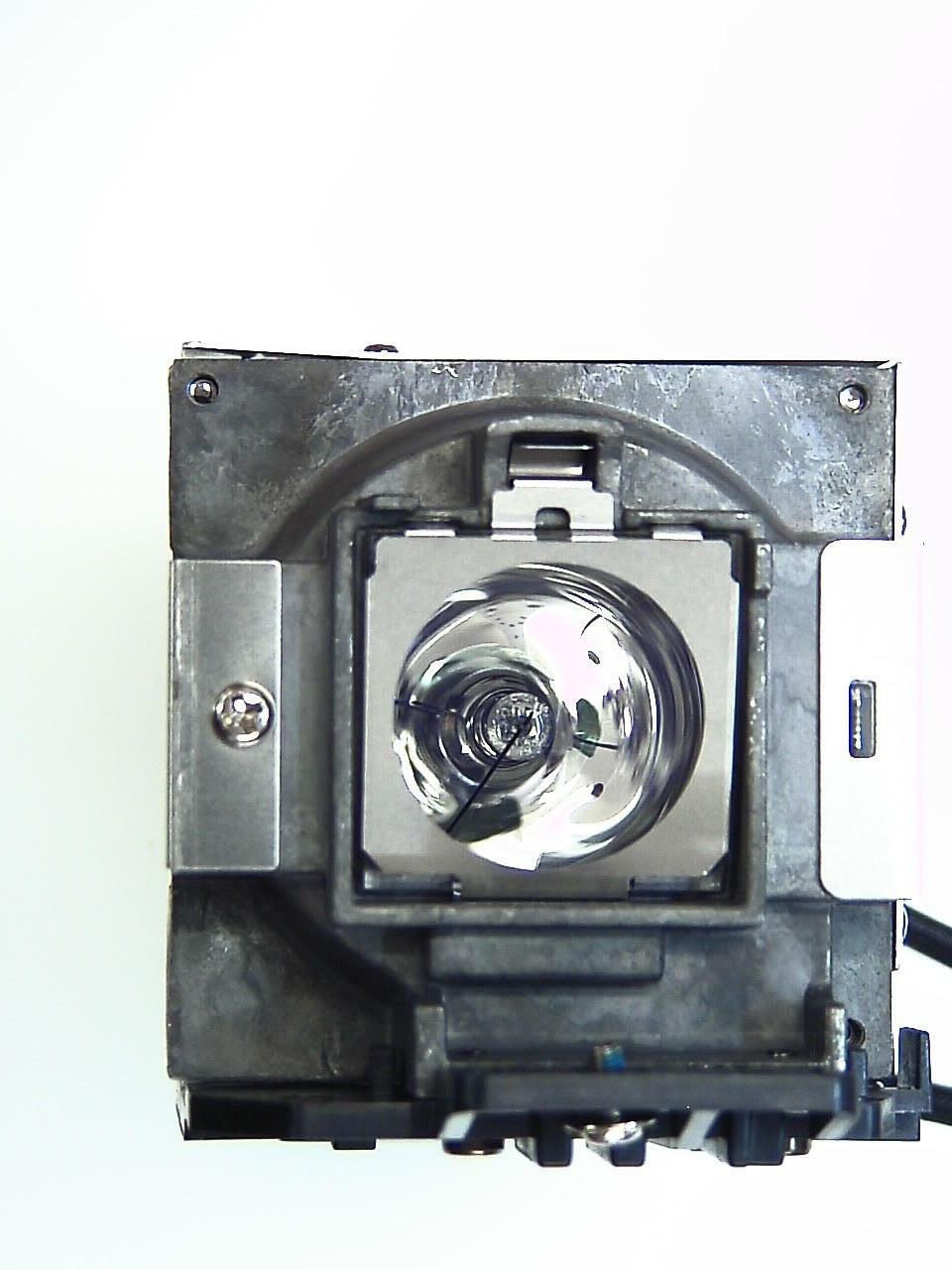

30W UHP Lamp
Article Nr.: EC.JC100.001
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
316 - 412 cm
|
 |
|
Lux: |
1167 Lux |
|
Room light max.: |
233 Lux |
|
Candela pro m²: |
370 cd/m² |
|
Foot-Lamberts: |
108 fL |
|
 |
| 107 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
F=2,59-2,87 f=16,88-21,88 mm |
| Throw Ratio |
1,58-2,06:1 show |
| Audio |
2 x 5W |
| Connections |
HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack audio in und out
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
390W |
| Size WxHxD |
290 x 99 x 254 mm (11,4"x3,9"x10") 7,29 L/dm³
|
| Operating Noise |
34 / 29 dB in Eco Mode |
|
| Weight |
3,30 kg / 7,28 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
90% |
| Frequenz |
H-sync: 30-100 kHz
V-sync: 56-85 Hz
|
| Foot-Lamberts |
108 fL
/ max. 515 cm screen width |
| Candela m² |
370 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Gamma correction
BrilliantColor™

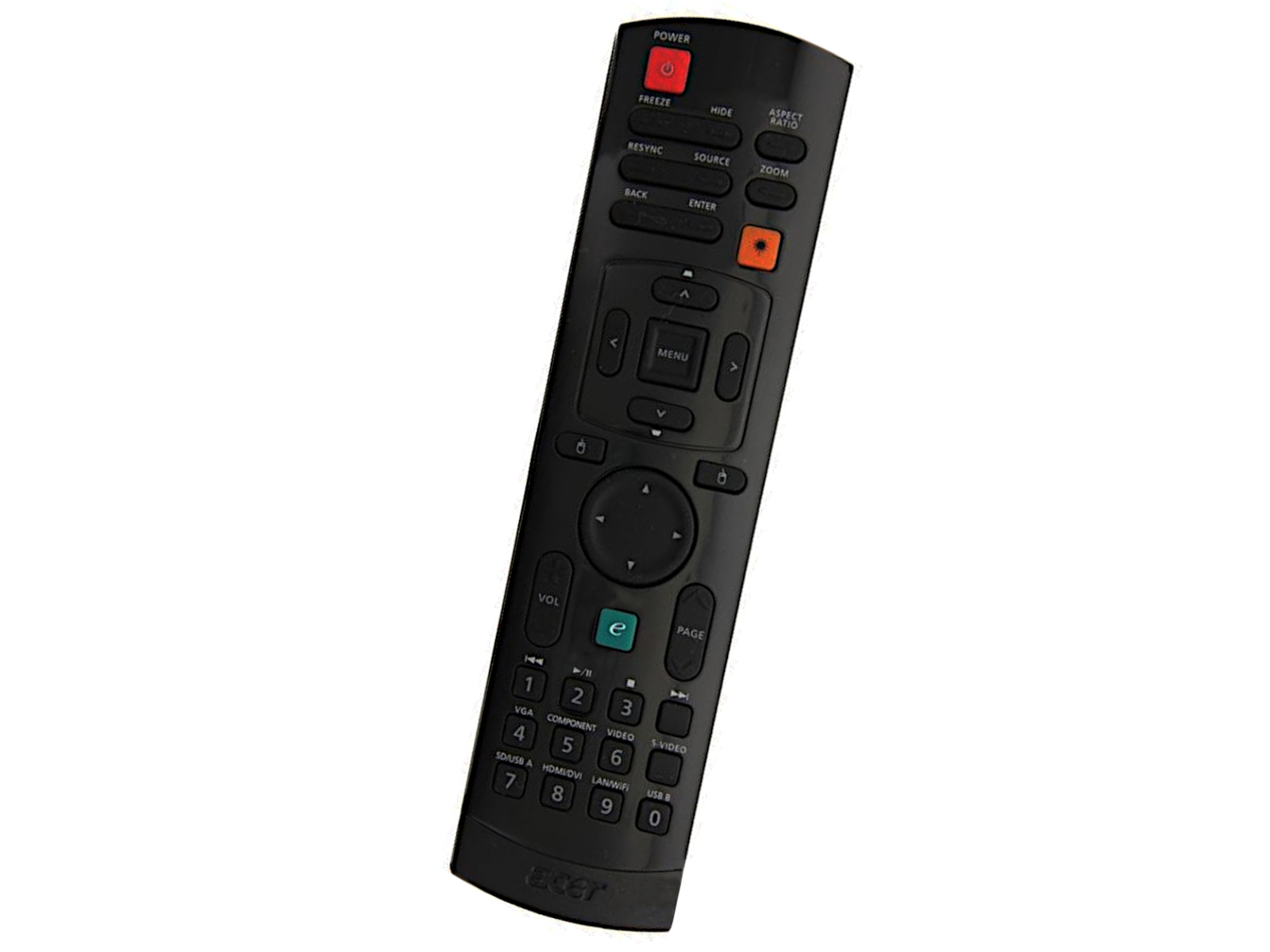

Remote control with laser pointer
Lan network compatible.
Crestron®-Software compatible.
UNISHAPE™
Digital Zoom
6-segment colour wheel
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer P5403 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
84 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
96 |
Power cons.: |
|
96 |
| Picture Total Points: | 46 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
630 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
Quick Start Guide
User Manual english (3.84 MB)
|
|
|
Autor:
Günter 11.01.12 |
|
5 Stars |
Best projector for 1,000 € |
|
Absolutely top class.
This device is unique for this money.
I have already tested very expensive projectors and they were all not worth it.
This one fascinates my whole neighborhood with really good 3D movies...
I would buy it again immediately.
|
|
|
Autor:
Yanisch 10.01.12 |
|
5 Stars |
TOP in all areas!!! |
|
I also have this projector and can only say: TOP!!!
I tested several projectors before deciding to buy (up to 2,500 EUro), none could hold a candle to this one.
Brilliant pictures, super bright (suitable for daylight), 3D capable, great contrast, what more could you want?
It‘s a super price/performance ratio.
Warmly recommended...
|
|
|
Autor:
Thomas 31.12.11 |
|
1 Stars |
I am disappointed |
|
I bought this projector because it is supposed to have a good price/performance ratio...
It looks really bad compared to my old Toshiba, it is 3D ready, but everything else leaves a lot to be desired.
Also the stated 3500 Ansilumen... somehow all so theoretically good but the practice then very lean. I‘m simply disappointed and will be reinstalling my old Toshiba, which is clearly the better projector in all respects (image sharpness, brightness, contrast, simply worlds better).
|
|
|
|
