Acer H6810


Artikelnummer: MR.JQK11.003 |

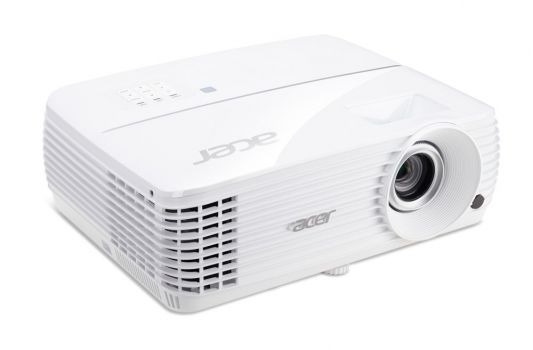

Image Acer H6810
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview This projector is named H6810, originates from Acer, and its data sheet shows 3500 ANSI lumens, a contrast of 10000:1 and a resolution of UHD (4K2K) 3840 x 2160. The manufacturer specifies a runtime of 4000 hours for this projector's lamp, which amounts to roughly 5.5 years at 2 hours of daily use.
Regarding projection size, the value of 3500 ANSI lumens allows for an image width of up to 601 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 401 cm.
Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly.
In the specifications, the operating noise is listed at a mere 30 decibels, indicating very quiet cooling. This model dates back to 2018 and is no longer part of Acer's current product range. In our projector directory, the device still generates high interest.
Display Type       1 x 0,47" DLP UHD DMD Chip
      HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3500
Screen
1556 Lux (200 cm Screen width)
Contrast 10000:1 full on/off 10000:1 full on/off
Black Level 0,3500 min. Lumen 0,156 min. Lumen
Offset 52,5% 3 cm over screen top edge →
SCREEN
+ Projector
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p)
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Homecinema | Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 240W UHP Lamp
Article Nr.: MC.JQE11.001
Order Lamp
74,79 - 208,36 €
Light Life 4000 h. / 10000 h. in Eco Mode
Operating Costs
| cheap costly |
1
 6,76% / 0,05 €
Calculated brightness quality
The screen width may also be larger. Perfect
294 - 352 cm
Lux: 1556 Lux
Contrast: 10000:1
Candela pro m²: 497 cd/m²
Foot-Lamberts: 145 fL
59 cm


Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,2
Objective F=1,94-2,06 f=5,57-18,67 mm
Throw Ratio 1,47-1,76:1 show
Audio 10W
Connections 2 x HDMI in (HDCP 2.2 , 1.4 a)
D-sub 15pin in
Mini Jack Audio in und out
USB
RS232C Din 9 pin in
12V Trigger out
Ceiling Mounting Yes, is possible.
Power 335W
Size WxHxD 343 x 124 x 258 mm (13,5"x4,9"x10,2") 10,97 L/dm³
Operating Noise 30 / 24 dB in Eco Mode
Key: 306 cm
Key: 188 cm

Weight 3,50 kg / 7,72 lbs.
Keystone Vert.: +/-40°
Illumination 85%
Frequenz H-sync: 15-135 kHz
V-sync: 24-120 Hz
Foot-Lamberts 145 fL / max. 601 cm screen width
Candela m² 497 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
High Dynamic Range (HDR)
BrilliantColor™
TI XPR technology
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Acer H6810 compared to others not current "Homecinema" projectors.
Ansi-Lumen:
33 Weight:
100
Contrast:
1 dB:
67
Black level:
96 Power cons.:
92
Picture Total Points:43 Projector Total Points:86
Popularity Top 100
11 popularity points 21 popularity points 19 popularity points 11 popularity points 16 popularity points 16 popularity points
Points:
16
Ranking: 98 (From: 990)
Optional accessories
Osram bulb only NLMP2480074,79 €
lamp ruby Ruby-LMP24800109,43 €
lamp OriginalMC.JQ211.005208,36 €
Compatible lamp LMP-K2441384,47 €
Remote MC.JMV11.00G27,67 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2018 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Acer Website
Product Sheet english HC
User Manual english (3.63 MB)
