Brief Introduction
Beta 2.5 |

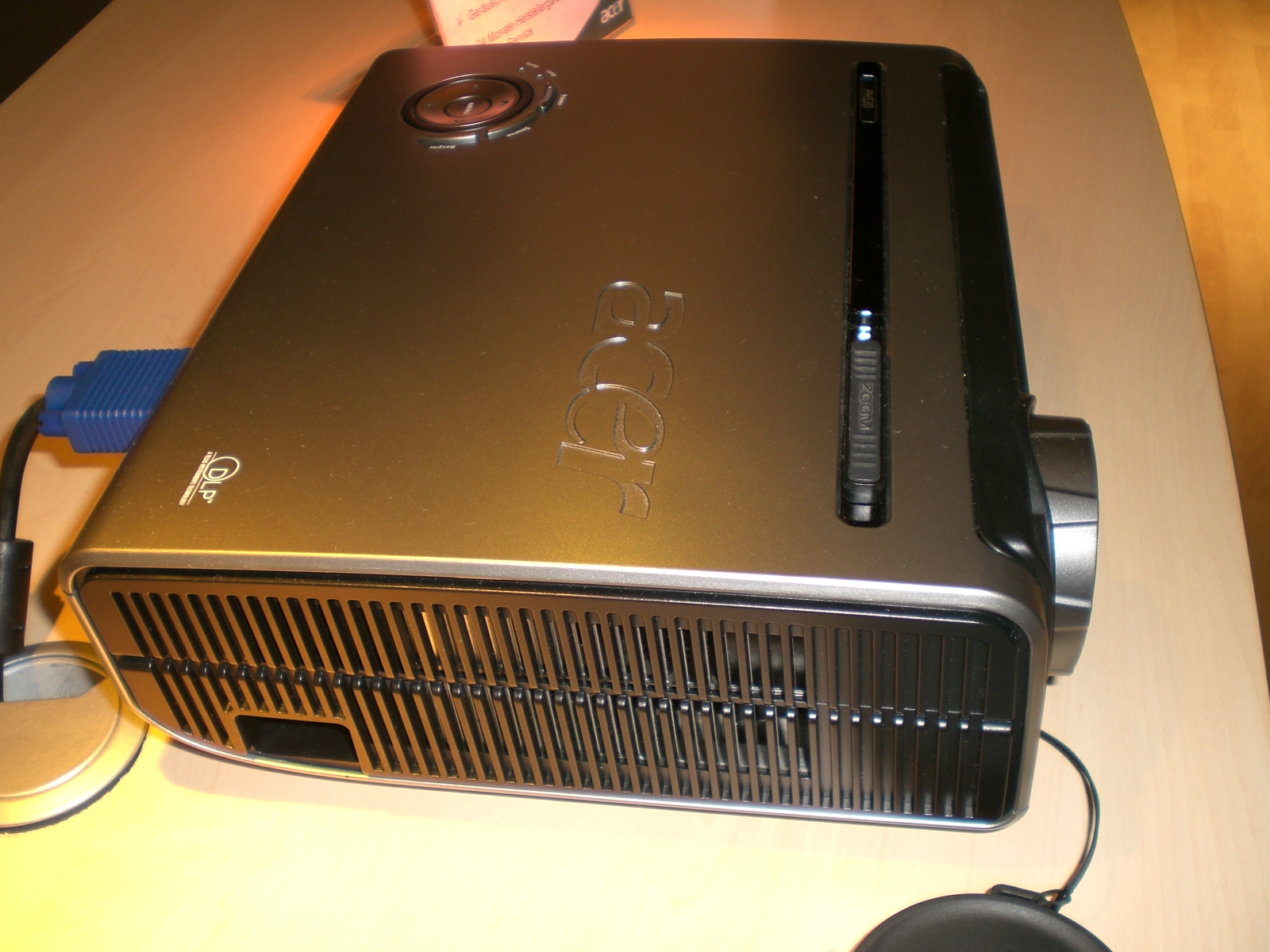

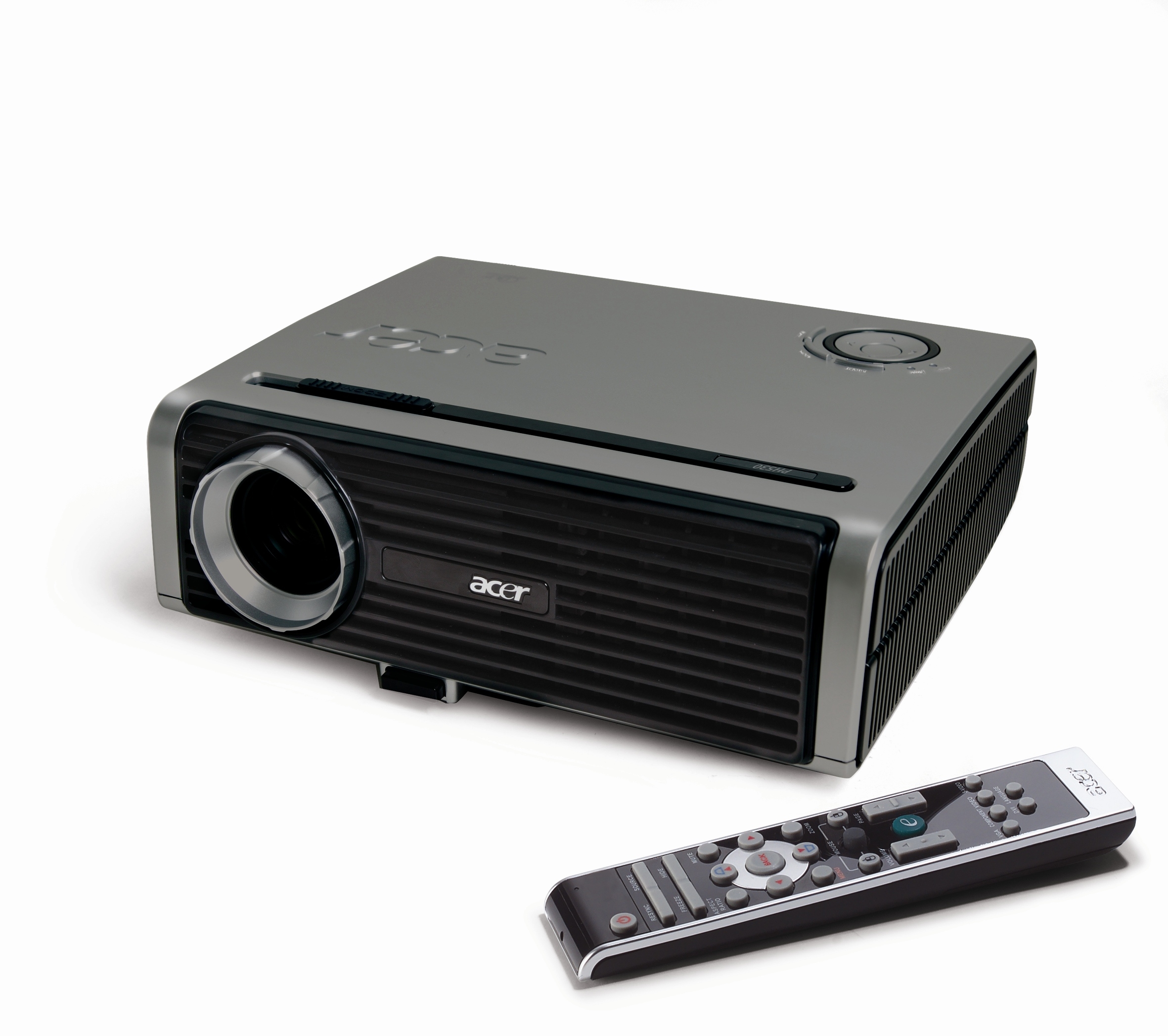

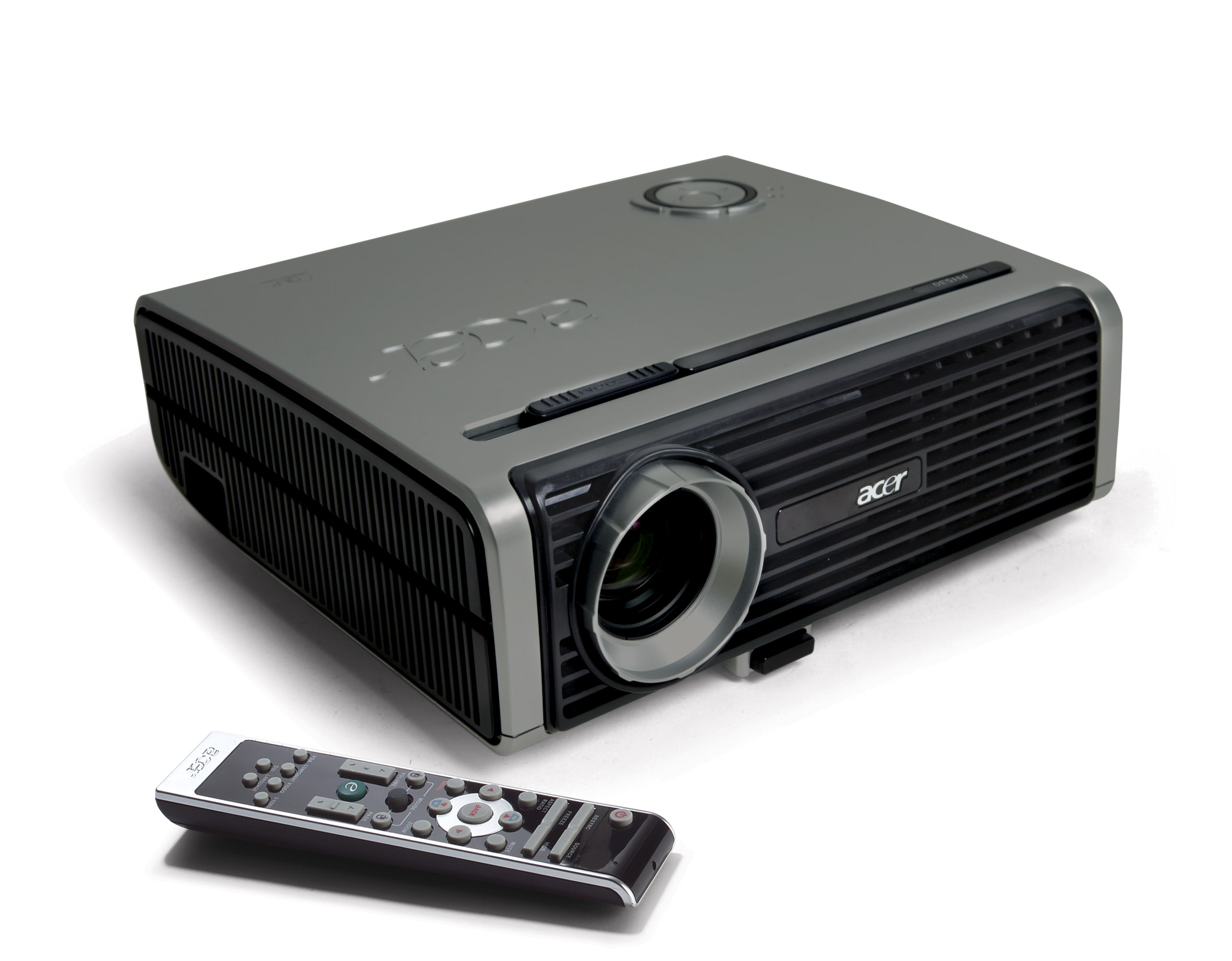

With the PH530, manufacturer Acer offers a DLP projector with HDTV 1280 x 720 resolution and a contrast of 2500:1. The projector can illuminate an image width of up to 321 cm thanks to its 1000 Ansi lumens. In room light, however, the picture width should ideally be less than 214 cm. On the market since 2006, the model is no longer offered by the manufacturer Acer.
|
| Display Type |
1 x DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1000 / 800 im Eco Mode |
Screen |
444 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
0,4000 min. Lumen |
0,178 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

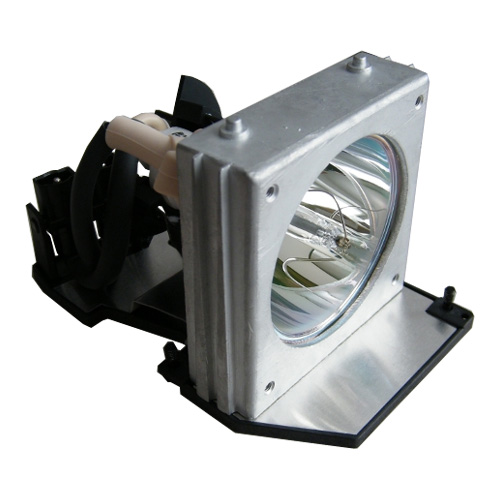

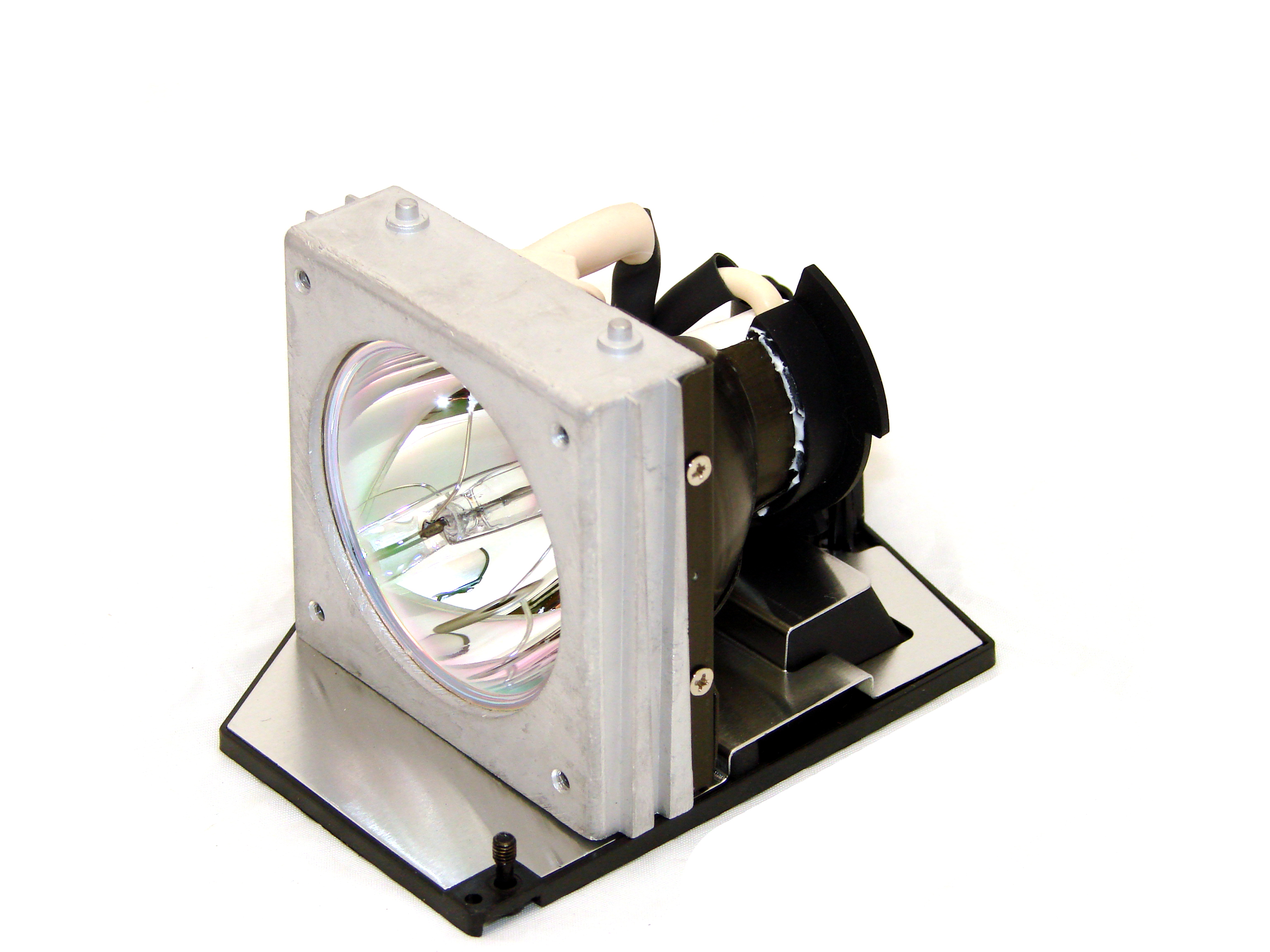

200W SHP Lamp
Article Nr.: EC.J4401.001
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
|
|
316 - 378 cm
|
 |
|
Lux: |
444 Lux |
|
Room light max.: |
89 Lux |
|
Candela pro m²: |
140 cd/m² |
|
Foot-Lamberts: |
41 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,5-2,8 f=22,29-26,27 mm |
| Throw Ratio |
1,58-1,89:1 show |
| Audio |
Nein |
| Connections |
HDMI in
D-sub 15pin in
YUV in
S-Video in
Cinch Video in
USB |
| Ceiling Mounting |
Yes, is possible. |
| Power |
265W / 9W standby |
| Size WxHxD |
283 x 104 x 256 mm (11,1"x4,1"x10,1") 7,53 L/dm³
|
| Operating Noise |
31 / 28 dB in Eco Mode |
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vert.: +/-16°
|
| Illumination |
90% |
| Frequenz |
H-sync: 31,5-100 kHz
V-sync: 56-85 Hz
|
| Foot-Lamberts |
41 fL
/ max. 321 cm screen width |
| Candela m² |
140 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Gamma correction
BrilliantColor™
Kalkulationstabelle in der Anleitung ist für 4:3 Bilder.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer PH530 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
8 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
63 |
| Black level: |
|
95 |
Power cons.: |
|
95 |
| Picture Total Points: | 35 |
Projector Total Points: | 86 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
301 (From: 984) |
|
|
|
| In Test
|
-
|
| Please note |
The spreadsheet in the manual is for 4:3 images.
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2025-02-26
|
| Data |
 Product Sheet english HC
User Manual english (8.23 MB)

|
|
|
Autor:
Jimbo Johnes 19.11.07 |
|
5 Stars |
Great thing |
|
Can anyone tell me where it is best to buy one?
I would prefer a retailer that can be found in many areas.
The price should be around €600 - €680.
Thanks for the help in advance.
|
|
|
Autor:
Daffy 19.11.07 |
|
4.5 Stars |
Simply great ! |
|
Since I have to deal with a lot of projectors professionally, my requirements were already quite high. However, when I connected the PH 530 to the mains, I was simply thrilled. In combination with a PS3 (Blue Ray) it was a real treat. Even a normal DVD goes through smoothly.
A super device (although the room should be darkened a little).
|
|
|
Autor:
M@DM@N 09.11.07 |
|
4 Stars |
PH530 Super price performance |
|
Hello first of all I spent 2 days looking at projectors with HD output and I have to say I actually wanted the Mitsubishi HD 1000 but it wasn‘t available yet and was actually too expensive for €1200. except for more brightness the technical data were not better so now the old NEC with 800-600 resolution has been retired and with HDMI connection to the PC the PH 530 just looks good I got a 16-9 screen 240 m and mainly play with 1280-720 which the Peamer can do really well but Full HD is also possible I don‘t see any difference anymore but I‘m really satisfied with the device with the price of 6XX €. greetings and your site is super informative
M@DM@N
|
|
|
Autor:
Kaerf 02.11.07 |
|
5 Stars |
Unbeatable price/performance ratio!! |
|
Im totally thrilled with the quality!!! And at that price.. Currently unbeatable in my opinion! PC signal is processed perfectly, DVDs via the composite input are really fun! And once you get to enjoy connecting the Xbox 360 via YUV and processing HD signals, youll be amazed!
|
|
|
Autor:
Lancelot 19.09.07 |
|
5 Stars |
umwerfend! |
|
Unglaublich! How is that possible at this price?
|
|
|
Autor:
PH350 fan 29.05.07 |
|
5 Stars |
Super part |
|
I got mine too. I have to say that you can get a super HD projector for XXX€ as of 18.06.2007. Watching movies in HD resolution is a must. Unfortunately, the players and movies are still quite expensive and you don‘t get the taste of HD movies. I watched HD trailers on my PC. You can‘t see a pixel from a distance of 1.20m on a 2.30m wide screen. Unfortunately, the resolution of DVDs is too low and I‘m already looking forward to my first HD DVD player (which will probably take a while yet). HD is a dream, but DVDs are fun too. No PIXEL, no fly screen, and almost no rainbow effect. Except for B/W movies. Get it while it‘s still so cheap.
|
|
|
Autor:
haba 11.01.07 |
|
4.5 Stars |
super!!! |
|
just got mine..great picture for the price only to recommend...
|
|
|
|
