Model Overview

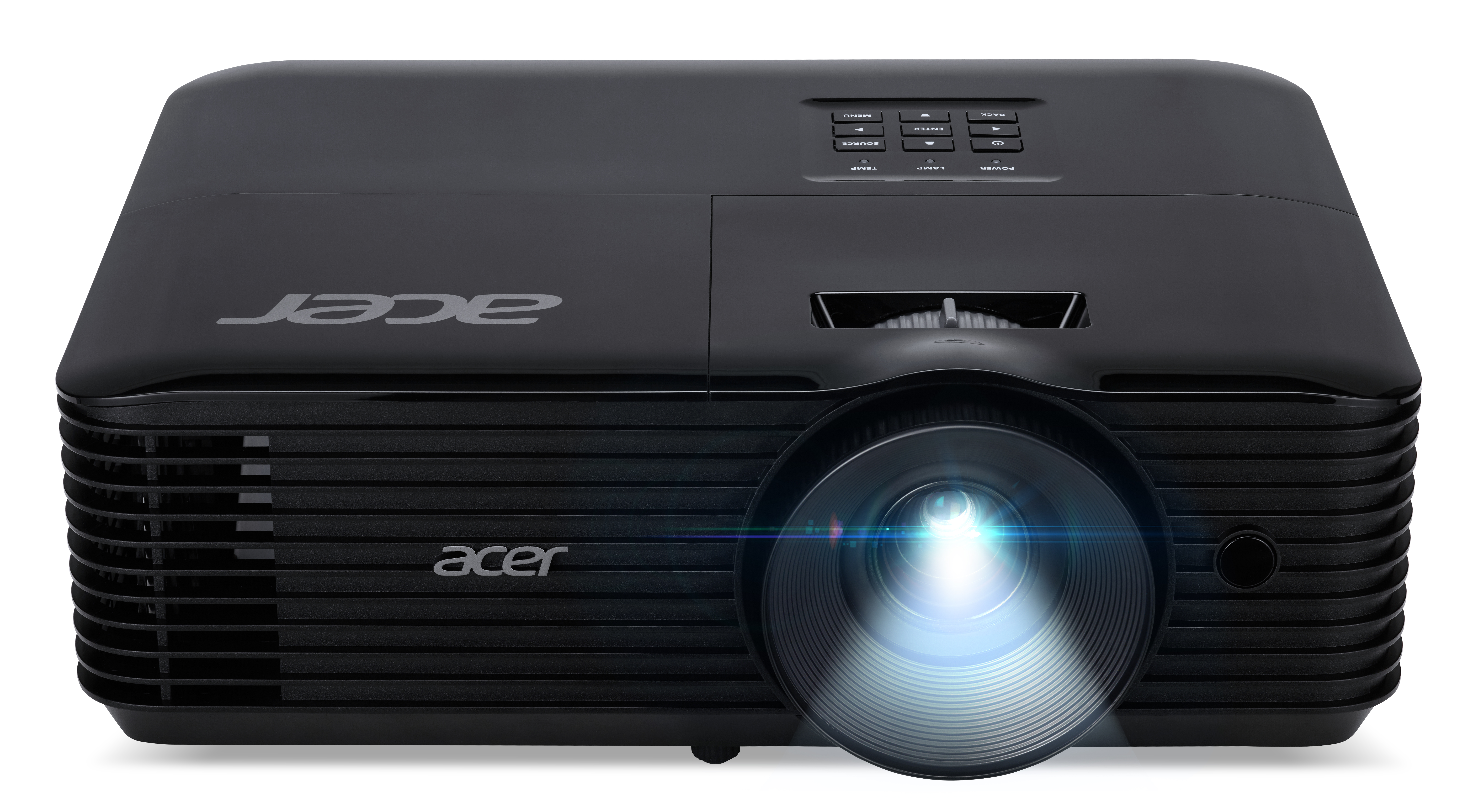

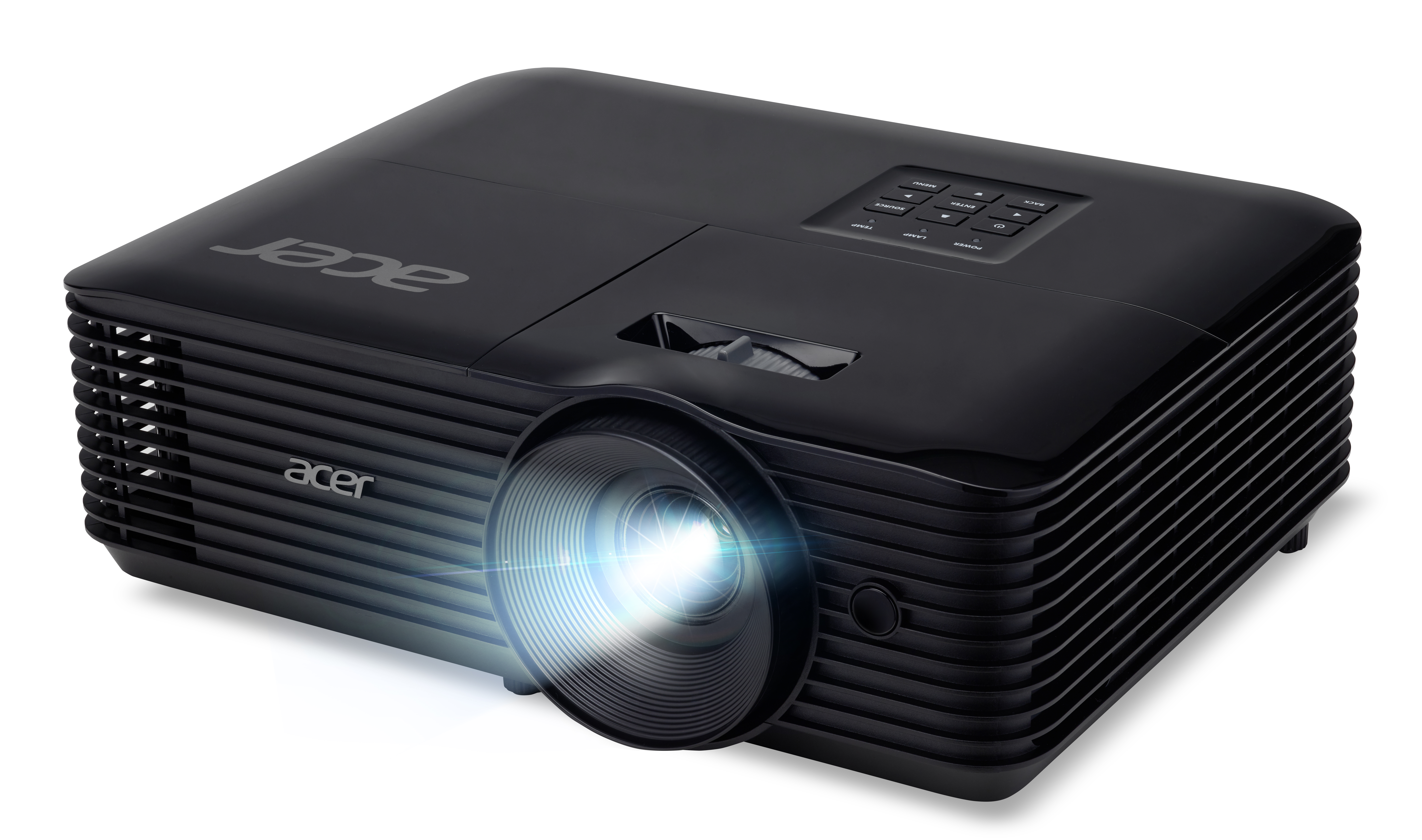

The H5385BDi model is a 3D-Laser-DLP projector from Acer, intended for Homecinema applications, offering 4000 ANSI lumens, a contrast of 20000:1 at HDTV 1280 x 720. The manufacturer specifies a runtime of 6000 hours for this projector's lamp. A daily usage of 2 hours makes an operational lifespan of 8.2 years possible. Looking at practical performance, up to 643 cm can be illuminated with 4000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 429 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D.
Display Type
1 x 0,65" DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
4000 / 3200 im Eco Mode
Screen
1778 Lux (200 cm Screen width )
Contrast
20000:1 full on/off
20000:1 full on/off
Black Level
0,2000 min. Lumen
0,089 min. Lumen
Offset
69% 21 cm over screen top edge →
Resolution
HDTV 1280 x 720
921.600 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Disc Recognition
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray
3D Compatibility
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application
Homecinema | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
220W Philips UHP Lamp Article Nr.: UC.JR711.002
Light Life
6000 h. 15000 h. in Eco Mode
Operating Costs
Calculated brightness quality The screen width may also be larger. Perfect
308 - 344 cm
Lux:
1778 Lux
Contrast:
20000:1
Candela pro m²:
565 cd/m²
Foot-Lamberts:
165 fL
•
Focus
Manual
Zoom
Manual 1,12
Objective
F=2,41-2,53 f=21,85-24,01 mm
Throw Ratio
1,54-1,72:1 show
Audio
1 x 3W
Connections
HDMI 1.4a in
D-sub 15pin in
Cinch Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
Ceiling Mounting
Yes, is possible.
Size WxHxD
313 x 113 x 240 mm (12,3"x4,4"x9,4") 8,49 L/dm³
Power
265W
Keystone
Operating Noise
35 / 27 dB in Eco Mode
Weight
2,75 kg / 4,41 lbs.
Keystone
Vert.: +/-30° automatisch
80%
Frequenz
H-sync: 15-100 kHz V-sync: 24-120 Hz
Foot-Lamberts
165 fL
/ max. 643 cm screen width
Candela m²
565 cd/m²
Features
Real Full HD 3D
Blackboard Mode
Eco Mode
Automatic and Manual Vertical Keystone Correction
Kensington Slot
Password Protection
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads
In Comparison
The Acer H5385BDi compared to others current "Homecinema" projectors.
Ansi-Lumen:
35
Weight:
98
Contrast:
1
dB:
43
Black level:
94
Power cons.:
75
Picture Total Points: 43
Projector Total Points: 72
Popularity Top 100
Points:
Ranking:
107 (From: 153)
Live-Trend (Last 3 days)
LIVE
Points:
11
+2%
Status
2020 Current model // Last update of the data: 2026-06-09 Created: 2020-02-20 09:00:28
Data
Product Sheet english HC User Manual english (6.83 MB)
