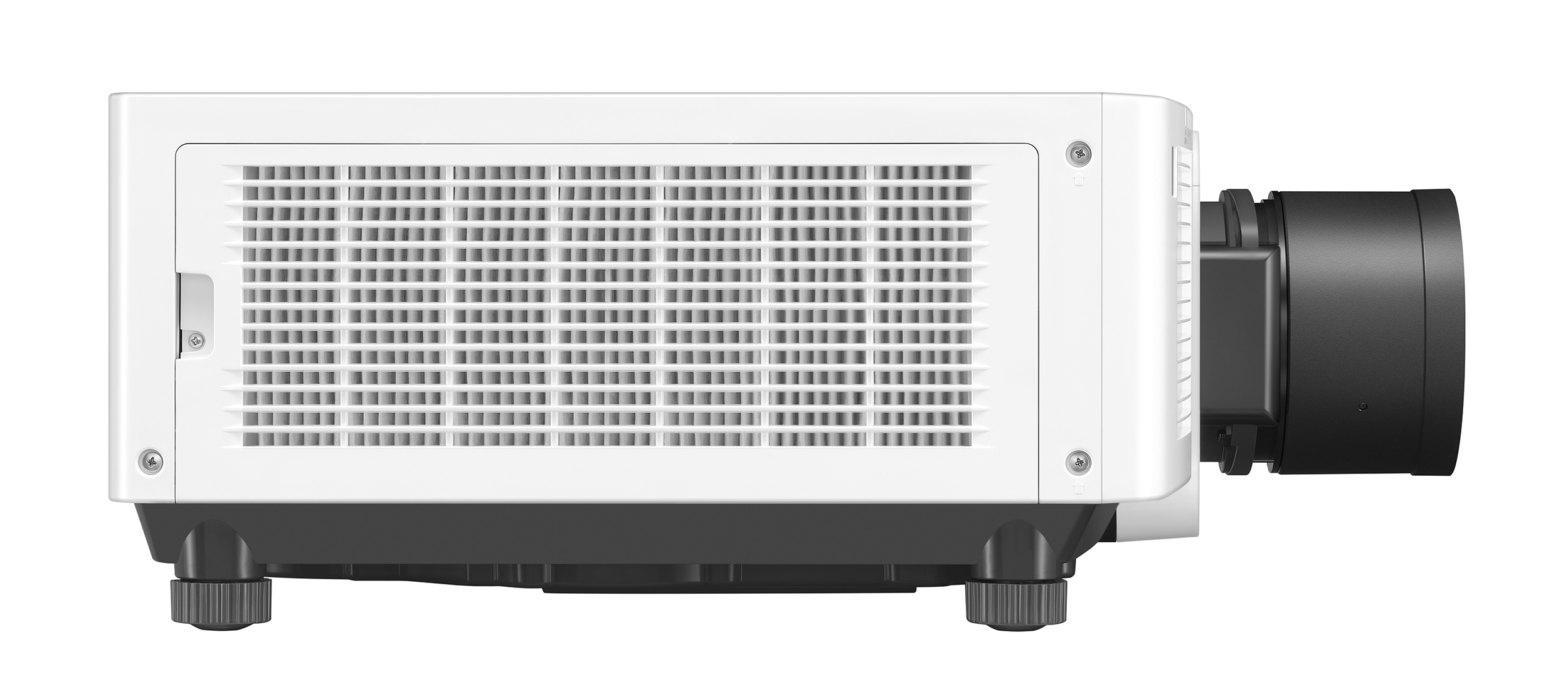

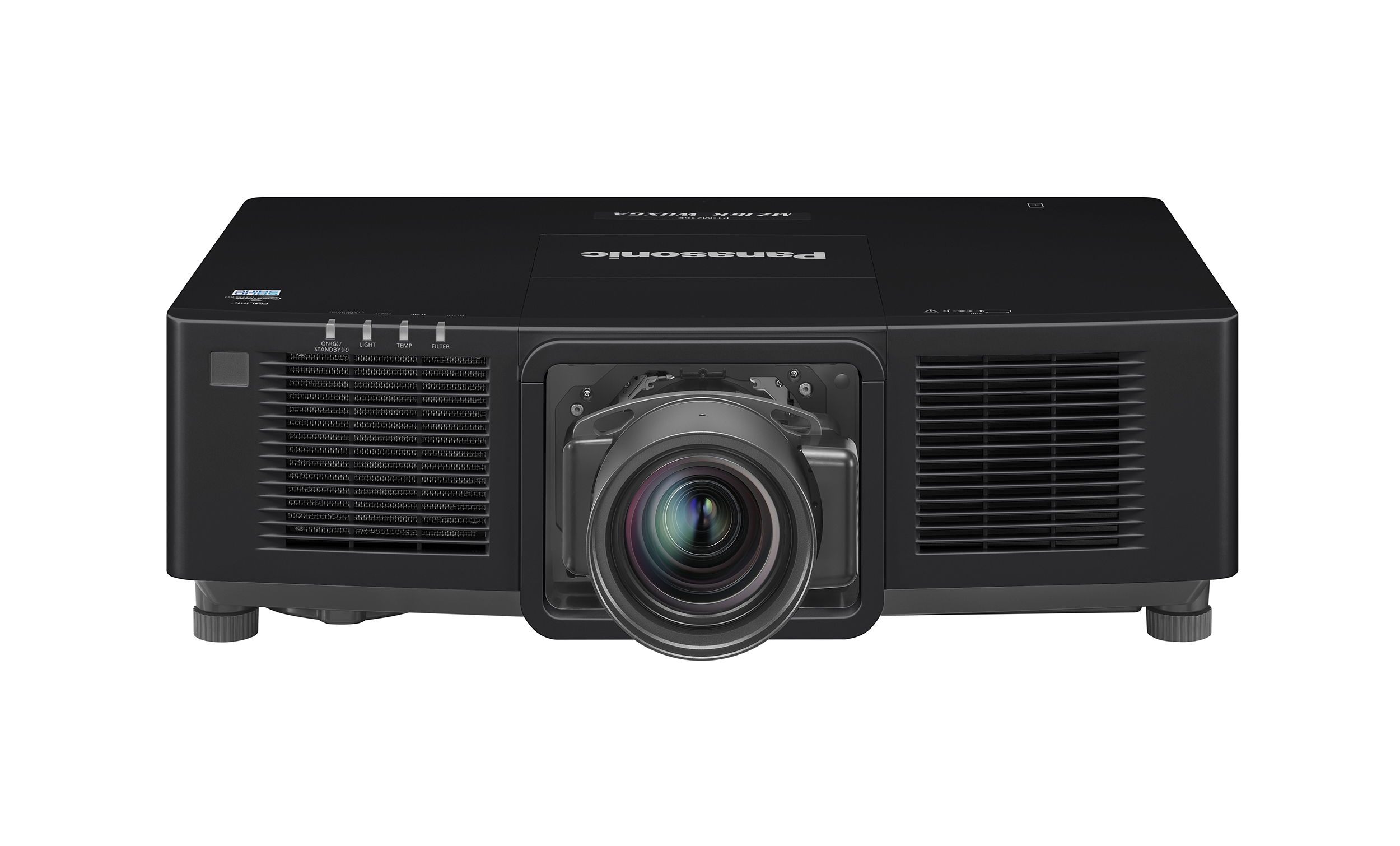

Designed for the Stationary sector, the PT-MZ10KL model from Panasonic features 10000 ANSI lumens, a native WUXGA 1920 x 1200 resolution and a contrast ratio of 3000000:1. The manufacturer lists the lifespan for this model at 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Lens Calculator. A look at the light output reveals: The 10000 ANSI lumens are sufficient to illuminate an image width of up to 1016 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 677 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D, and also offers the technical capability for 360° projection. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. The projector was released in 2019 and is officially no longer distributed by Panasonic. In our projector directory, the device still generates high interest.
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
4444 Lux
Contrast:
3000000:1
Candela pro m²:
1415 cd/m²
Foot-Lamberts:
413 fL
68 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
BNC x 1: 3G/HD/SD-SDI input
HDMI 19-pin x 1 (Compatible with HDCP, Deep Color, 4K/60p signal input)
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
D-Sub 15pin in und out
RS232c in
Wired Remote
Remote out
RJ45
USB
HDBaseT
Real Full HD 3D
Panasonic Website
Product Sheet english
