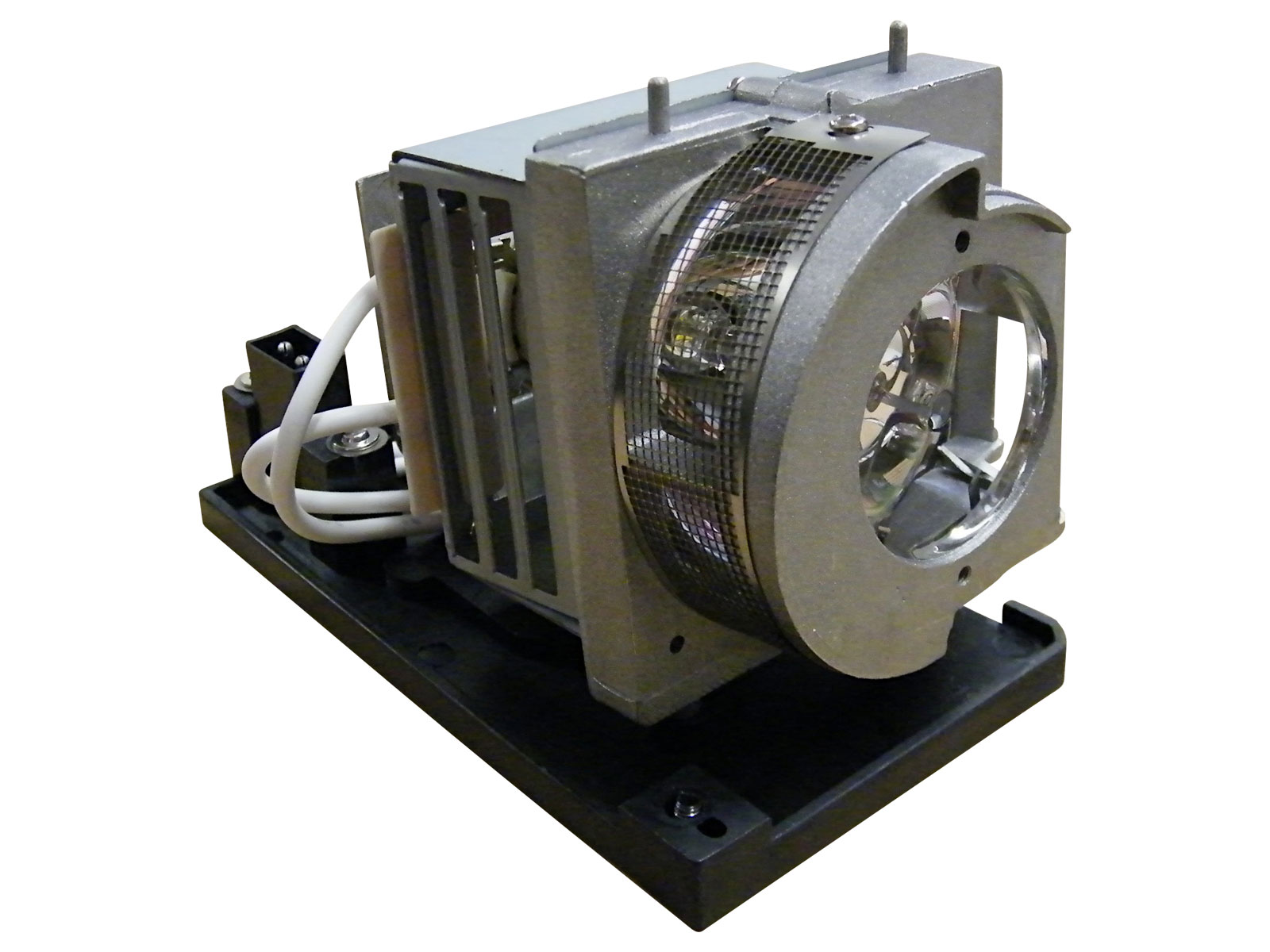

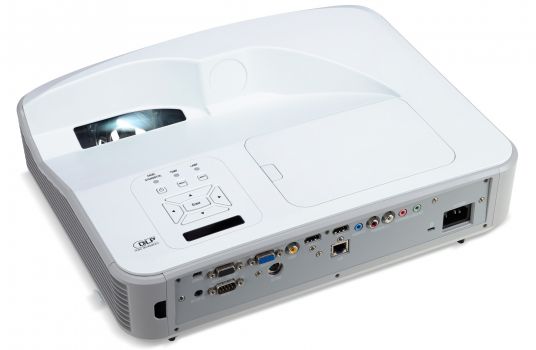

The equipment of the Acer U5330W projector includes 3300 ANSI lumens, a contrast of 18000:1 with a XGA 1024 x 768 display. In operating mode, the installed projector lamp offers a lifespan of 4000 hours. With two hours of daily operation, this corresponds to a period of 5.5 years. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 54 cm. A look at the light output reveals: The 3300 ANSI lumens are sufficient to illuminate an image width of up to 500 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 333 cm. For media input, video signals up to 1080P as well as 3D are supported. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Equipped with a microphone jack and built-in speakers (16W), audio signals during presentations can be played back directly without an external audio system. The projector was released in 2019 and is officially no longer distributed by Acer.
Display Type
0,65" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Calculated brightness quality The screen width may also be larger. Perfect
54 cm (no Zoom)
Lux:
1100 Lux
Contrast:
18000:1
Candela pro m²:
349 cd/m²
Foot-Lamberts:
102 fL
98 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,4 f=3,72mm
Throw Ratio
0,27:1
Audio
1 x 16W
Connections
2 x HDMI
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
Microphone
USB in
3DSync
12V Trigger out
RS232C Din 9 pin in
RJ45 in
Real Full HD 3D Full HD 1080P compatible Eco Mode Automatic and manual vertical keystone correction Kensington Slot BrilliantColor™ Optional Wi-Fi network compatible. Lan network compatible. Short-throw projector
Real Full HD 3D
