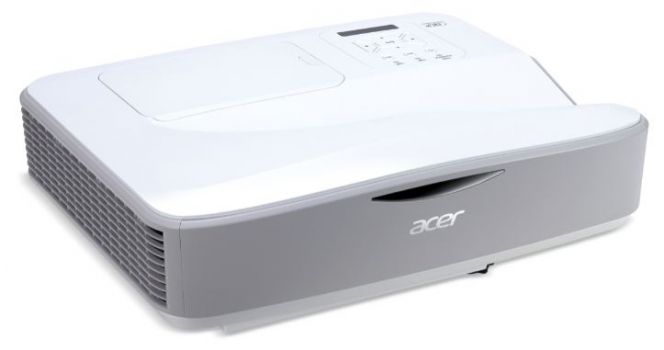

Categorized in the Short Distance segment, the U5530 projector from Acer projects with a HDTV 1920 x 1080 resolution, alongside 3000 ANSI lumens and a contrast of 18000:1. According to Acer, the included lamp lasts up to 3000 hours. Thanks to its low throw ratio, the model is excellently suited for rooms with limited space. A distance of just 50 cm is sufficient to generate an image width of 2 meters. A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 556 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 371 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Equipped with a microphone jack and built-in speakers (16W), audio signals during presentations can be played back directly without an external audio system. This model dates back to 2019 and is no longer part of Acer's current product range.
Display Type
0,65" DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Calculated brightness quality The screen width may also be larger. Perfect
50 cm (no Zoom)
Lux:
1333 Lux
Contrast:
18000:1
Candela pro m²:
425 cd/m²
Foot-Lamberts:
124 fL
77 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,4 f=3,72mm
Throw Ratio
0,25:1
Audio
1 x 16W
Connections
2 x HDMI
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
Microphone
USB in
3DSync
12V Trigger out
RS232C Din 9 pin in
RJ45 in
Real Full HD 3D Full HD 1080P compatible Eco Mode Automatic and manual vertical keystone correction Kensington Slot BrilliantColor™ Optional Wi-Fi network compatible. Lan network compatible. Short-throw projector
Real Full HD 3D
