A projector from Mitsubishi is the XL1550U, whose LCD model delivers 3100 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 400:1. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Distance Calculator. Looking at practical performance, up to 485 cm can be illuminated with 3100 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 323 cm. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Regarding noise emissions, the model proves to be exceptionally quiet during operation, producing just 29 decibels. The projector was released in 2008 and is officially no longer distributed by Mitsubishi. However, it remains frequently searched within our database.
Display Type
3 x 0,8" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3100
Screen
1033 Lux (200 cm Screen width)
Contrast
400:1 full on/off
400:1 full on/off
Black Level
7,7500 min. Lumen
2,602 min. Lumen
Offset
40% 15 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source

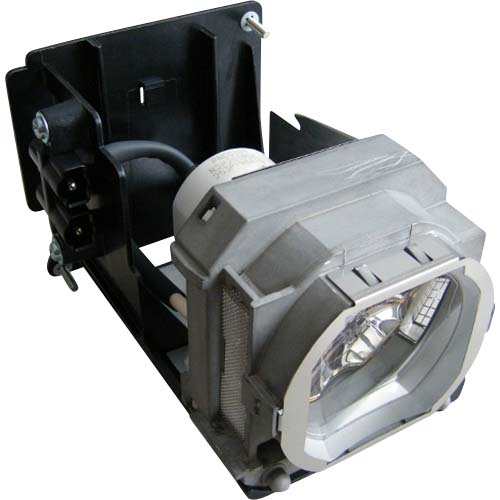

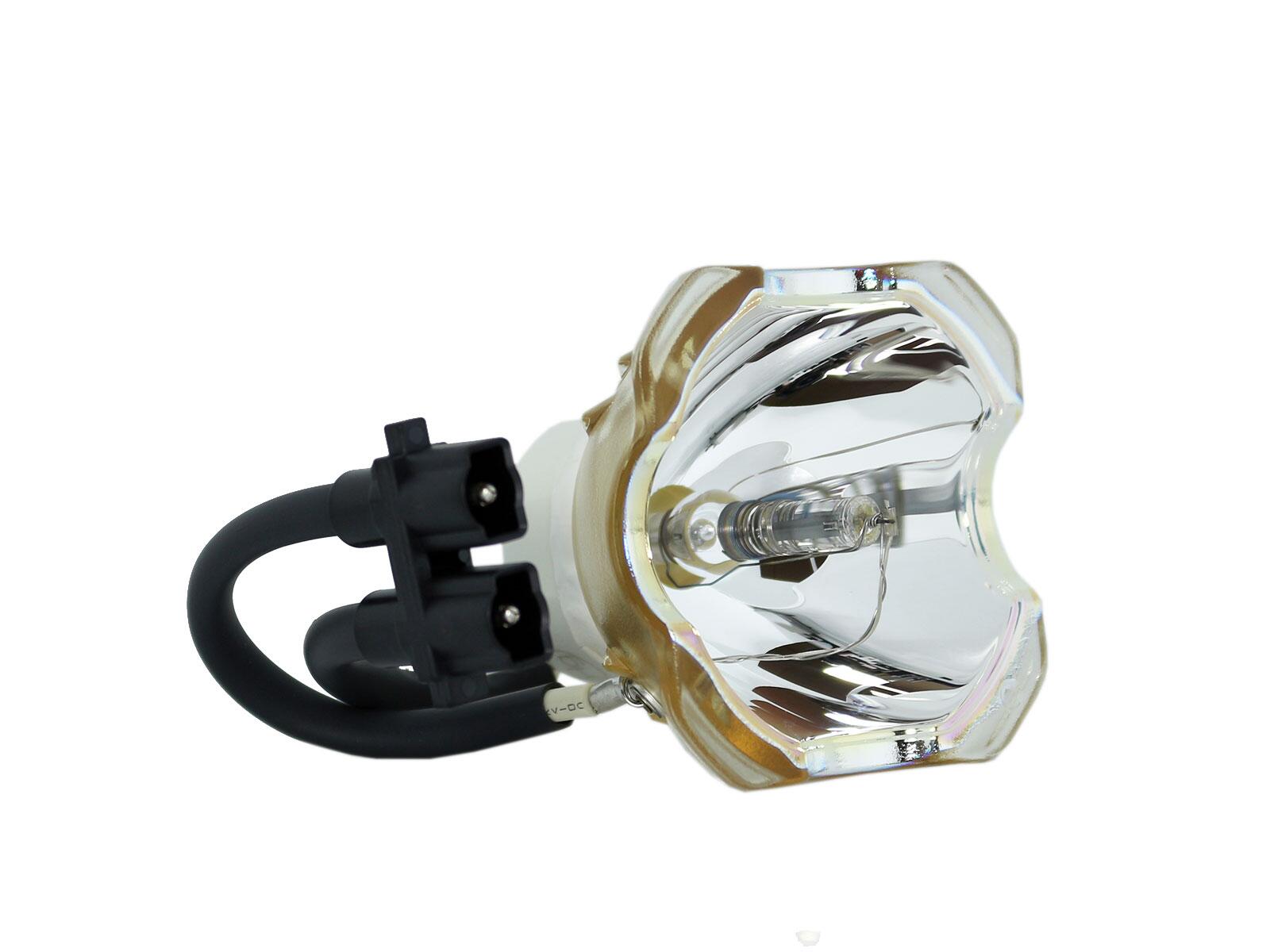

200/ 160W im Eco Mode Lamp Article Nr.: VLT-XL550LP
DVI-D mit HDCP in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Áudio in und out
USB in
5V Trigger out
RS232C Din 9pin in
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
-
Size WxHxD
333 x 113 x 272 mm (13,1"x4,4"x10,7") 10,24 L/dm³
Operating Noise
29 / 22 dB in Eco Mode
Weight
4,70 kg / 10,36 lbs.
Keystone
-
Illumination
-
Frequenz
H-sync: 15-100 kHz V-sync: 50-120 Hz Range max.: 140 MHz
Eco Mode Kensington Slot sRGB Gamma correction Picture-in-Picture Password protection Remote control with laser pointer und mouse control PJLink™ Control via web browser Optional Wi-Fi network compatible. Lan network compatible.
Eco Mode
