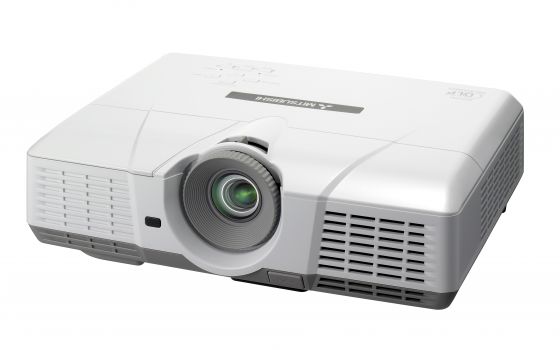

Categorized in the Standard-Portabel segment, the SD510U projector from Mitsubishi projects with a SVGA 800 x 600 resolution, alongside 2600 ANSI lumens and a contrast of 2000:1. The manufacturer rates the durability of the included lamp at 2000 hours. Regarding projection size, the value of 2600 ANSI lumens allows for an image width of up to 444 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 296 cm. This model dates back to 2008 and is no longer part of Mitsubishi's current product range.
Display Type
1 x 0,55" 12 Grad DDP2230 LVDS DLP Chip SVGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2600
Screen
867 Lux (200 cm Screen width)
Contrast
2000:1 full on/off
2000:1 full on/off
Black Level
1,3000 min. Lumen
0,434 min. Lumen
Offset
57% 11 cm over screen top edge →
SCREEN
+Projector
Resolution
SVGA 800 x 600
480.000 Pixel SXGA 1280 x 1024 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Light Source
230 / 180W im Eco Mode Lamp Article Nr.: VLT-XD510LP
Freeze
