Brief Introduction
 Beta 2.5 |

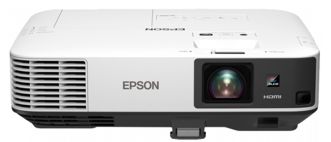

The Epson EB-2245U standard portable LCD projector has 4200 Ansi lumens, a contrast of 15000:1 and a WUXGA 1920 x 1200 resolution. The lamp in the projector is specified with a lamp life of 10000 hours, which converts to over 13.7 years at 2 hours per day. The projector is equipped with an integrated media player, so direct playback of files will not be a problem. A built-in horizontal and vertical keystone correction provides freedom when positioning the projector. Thanks to the brightness of 4200 Ansi lumens, a picture width of 658 cm is possible. The projector can also handle slightly brighter rooms with a narrower picture width (we recommend max. 439 cm). The HDMI MHL (Mobile High-Definition Link) port allows 1080p / 60 Hz image mirroring (screen mirroring) to be transmitted from a smartphone while it is being charged at the same time via the connection. The model is also Full HD 1080P compatible. This model is no longer offered by Epson.
|
Display Type |
3 x 0,67" LCD TFT Panel WUXGA 16/9 Liquid Crystal Display
|
Ansi-Lumen |
Projector |
4200 / 3100 im Eco Mode |
Screen |
1867 Lux (200 cm Screen width) |
Contrast |
15000:1 full on/off |
15000:1 full on/off
|
Black Level |
0,2800 min. Lumen |
0,124 min. Lumen |
Offset |
46,42% show
|
Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: jpg
bmp
gif
png
pdf
avi
Motion
JPEG) |
Application |
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens). |
Light Source |
300W Lamp Article Nr.: ELPLP95
|
|
Light Life |
5000 h. 10000 in Eco Mode |
Operating Costs |
|
|
314 - 516 cm
|
 |
|
Lux: |
1867 Lux |
|
Room light max.: |
373 Lux |
|
Candela pro m²: |
593 cd/m² |
|
Foot-Lamberts: |
173 fL |
|
 |
| 52 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
Focus |
Manual |
Zoom |
Manual 1,62 |
Objective |
F=1,5-2,0 f=23-38,4 mm |
Throw Ratio |
1,57-2,58:1 show |
Audio |
16W |

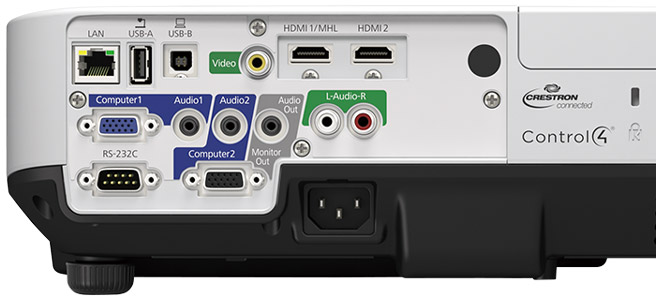

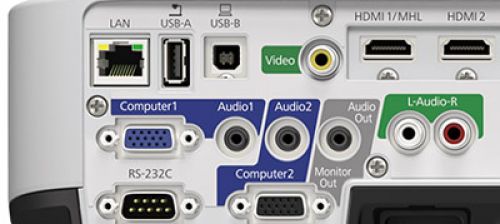

Connections |
2 x HDMI mit MHL in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
 |
Ceiling Mounting |
Yes, is possible. |
Power |
410 / 350W in Eco Mode |
Size WxHxD |
377 x 110 x 291 mm (14,8"x4,3"x11,5") 12,07 L/dm³
|
Operating Noise |
37 / 29 dB in Eco Mode |
Key: 233 cm |
Key: 181 cm |
| Key: 181 cm |
| |
|
|
Weight |
4,80 kg / 8,82 lbs. |
Keystone |
Vert.: +/-30° Hori.: +/-30°
|
Illumination |
- |
Frequenz |
- |
Foot-Lamberts |
173 fL
/ max. 658 cm screen width |
Candela m² |
593 cd/m² |
Features |
Full HD 1080P compatible
Integrated Mediaplayer
Eco Mode
Kensington Slot
sRGB
Password protection
Lan network compatible. Crestron®-Software compatible.
|
|
über HDMI MHL |
In Comparison
The Epson EB-2245U compared to others not current "Standard-Portabel" projectors. |
Ansi-Lumen: |
|
51 |
Weight: |
|
77 |
Contrast: |
|
1 |
dB: |
|
31 |
Black level: |
|
99 |
Power cons.: |
|
95 |
Picture Total Points: | 50 |
Projector Total Points: | 68 |
|
Popularity Top 100 |
|
Points: |
|
12 |
Ranking: |
944 (From: 7662) |
|
|
|
|
Status |
2017 Discontinued (EOL) // Last update of the data: 2023-09-20 Created: 2016-12-16 11:37:37
|
