Brief Introduction
 Beta 2.5 |
The Epson EH-TW5820 home cinema 3D LCD projector has 2700 Ansi lumens, a contrast of 70000:1 and an HDTV 1920 x 1080 resolution. The lamp life is up to 4500 hours, which is over 6.2 years if enjoyed for two hours a day. Includes a lens shift and keystone correction function, which provides freedom during installation. An image width of up to 528 cm is possible. However, the image should be smaller in room lighting. We recommend max. 352 cm. Playing 1080P and 3D is also no problem for the projector. It was launched in 2020 and is no longer offered by the manufacturer Epson.
|
Display Type |
3 x 0,61" LCD TFT Panel mit MLA HDTV 16/9 Liquid Crystal Display with Micro Lense Array
|
Ansi-Lumen |
Projector |
2700 / 1780 im Eco Mode |
Screen |
1200 Lux (200 cm Screen width) |
Contrast |
70000:1 full on/off |
70000:1 full on/off
|
Black Level |
0,0386 min. Lumen |
0,017 min. Lumen |
Lens shift |
Vert.: +/-60%
|
Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
Application |
Homecinema | Medium screen width or rooms with little light, max. 100 lumens. |
Light Source |

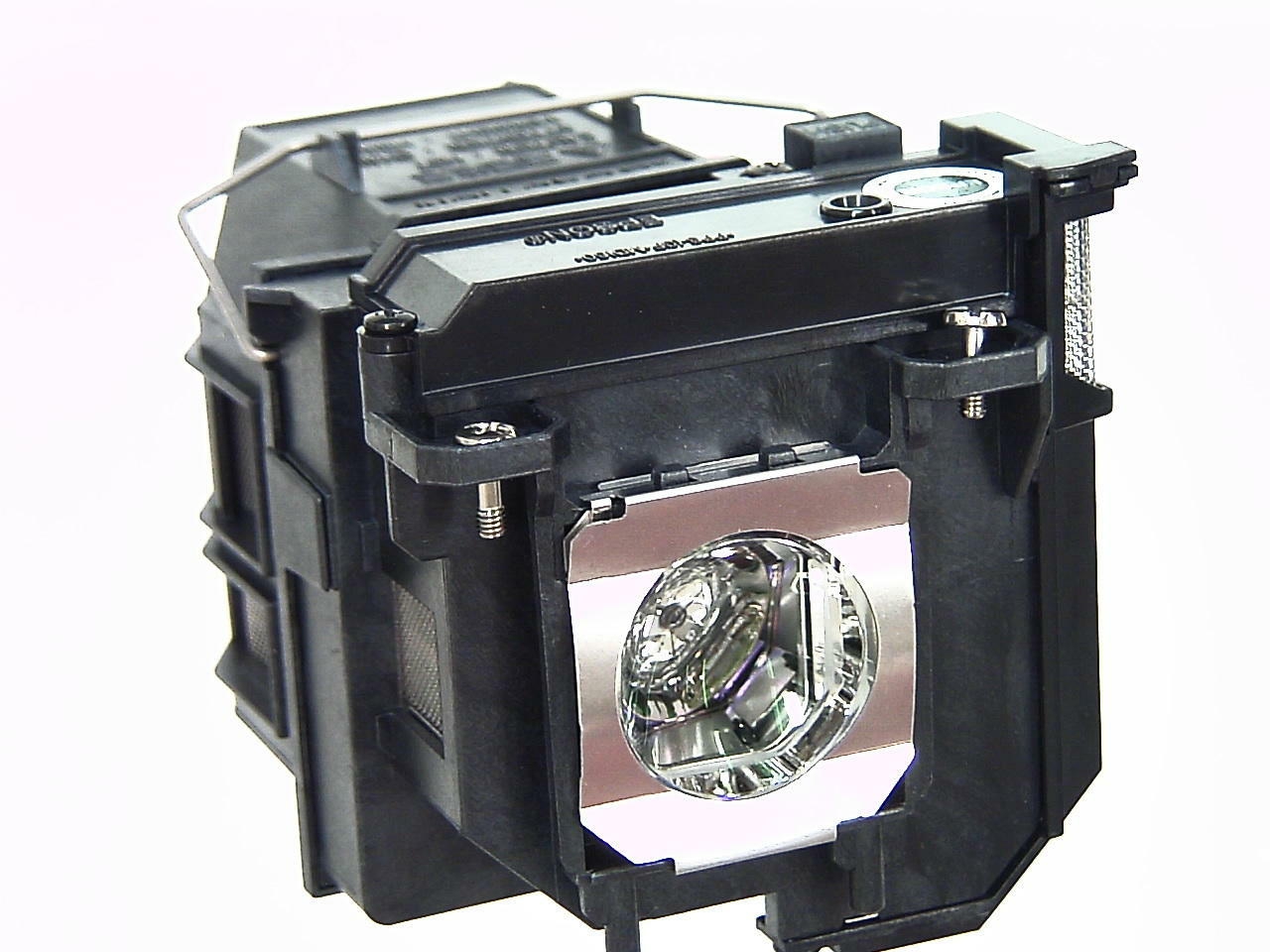

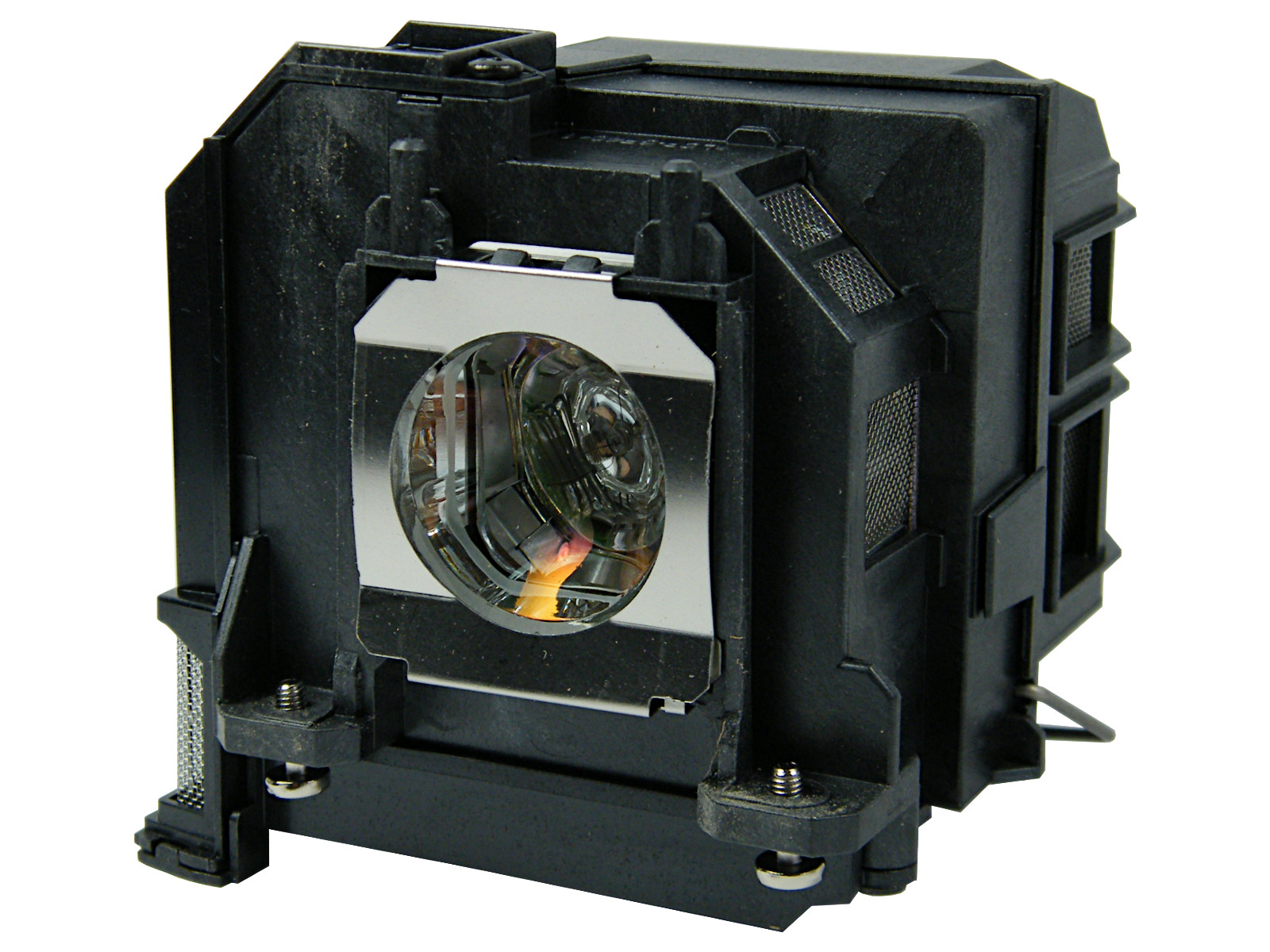

200W UHE Lamp Article Nr.: ELPLP96 / V13H010L96 / ELPLP97 / V13H010L97
|
|
Light Life |
4500 h. 7500 h. in Eco Mode |
Operating Costs |
|
|
266 - 400 cm
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
Focus |
Manual |
Zoom |
Manual 1,6 |
Objective |
F=1,51-1,99 f=18,2-29,2 mm |
Throw Ratio |
1,33-2:1 show |
Audio |
10W |

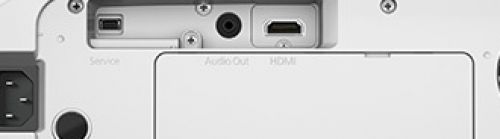

Connections |
HDMI in
Mini Jack Audio out
USB 2. Type B
 |
Ceiling Mounting |
Yes, is possible. |
Power |
297W / 227W in Eco Mode |
Size WxHxD |
309 x 107 x 278 mm (12,2"x4,2"x10,9") 9,19 L/dm³
|
Operating Noise |
37 / 27 dB in Eco Mode |
Key: 154 cm Shift: 68 cm |
Key: 154 cm |
| Key: 154 cm |
| |
|
|
Weight |
3,50 kg / 6,61 lbs. |
Keystone |
Vert.: +/-30° automatisch Hori.: +/-30°
|
Illumination |
- |
Frequenz |
- |
Foot-Lamberts |
111 fL
/ max. 528 cm screen width |
Candela m² |
380 cd/m² |
Features |
Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Wi-Fi network compatible. Bluetooth
Integrated Android TV.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson EH-TW5820 compared to others not current "Homecinema" projectors. |
Ansi-Lumen: |
|
25 |
Weight: |
|
100 |
Contrast: |
|
2 |
dB: |
|
43 |
Black level: |
|
100 |
Power cons.: |
|
93 |
Picture Total Points: | 42 |
Projector Total Points: | 79 |
|
Popularity Top 100 |
|
Points: |
|
8 |
Ranking: |
499 (From: 984) |
|
|
|
|
Status |
2020 Discontinued (EOL) // Last update of the data: 2023-08-30 Created: 2020-10-07 11:51:58
|
Data |
Product Sheet english HC
User Manual english (2.35 MB)

|
