Brief Introduction
Beta 2.5 |

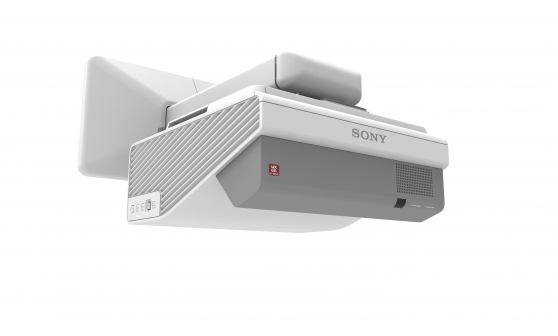

The Sony VPL SX631 short-throw LCD projector has 3300 Ansi lumens, a contrast of 3000:1 and an XGA 1024 x 768 resolution. The lamp life is up to 4000 hours, which is over 5.5 years with a daily viewing time of 2 hours. The integrated lens shift gives freedom when positioning the projector. As it is a short-throw projector, the projector can be placed very close to the wall. For a 2 m wide image, the projector needs to be just 54 cm away from the screen. The model offers a microphone jack plug and 16W speakers, so no additional audio equipment is required for presentations or training courses. The model built in 2016 is no longer offered by Sony.
|
| Display Type |
3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3300 |
Screen |
1100 Lux (200 cm Screen width) |
| Contrast |
3000:1 full on/off |
3000:1 full on/off
|
| Black Level |
1,1000 min. Lumen |
0,367 min. Lumen |
| Lens shift |
Vert.: +/-3,1% Hori.: +/-2,3%
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

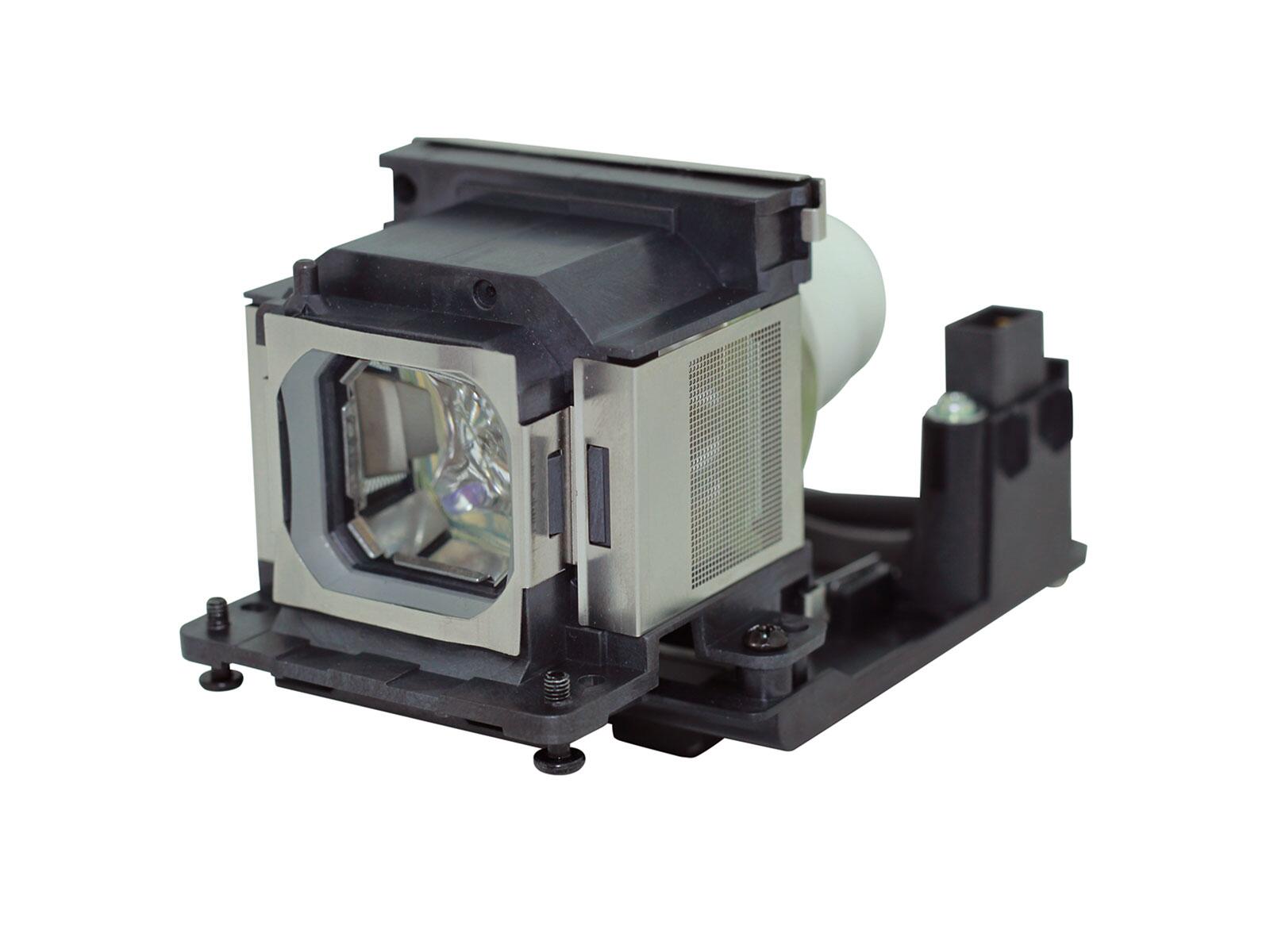

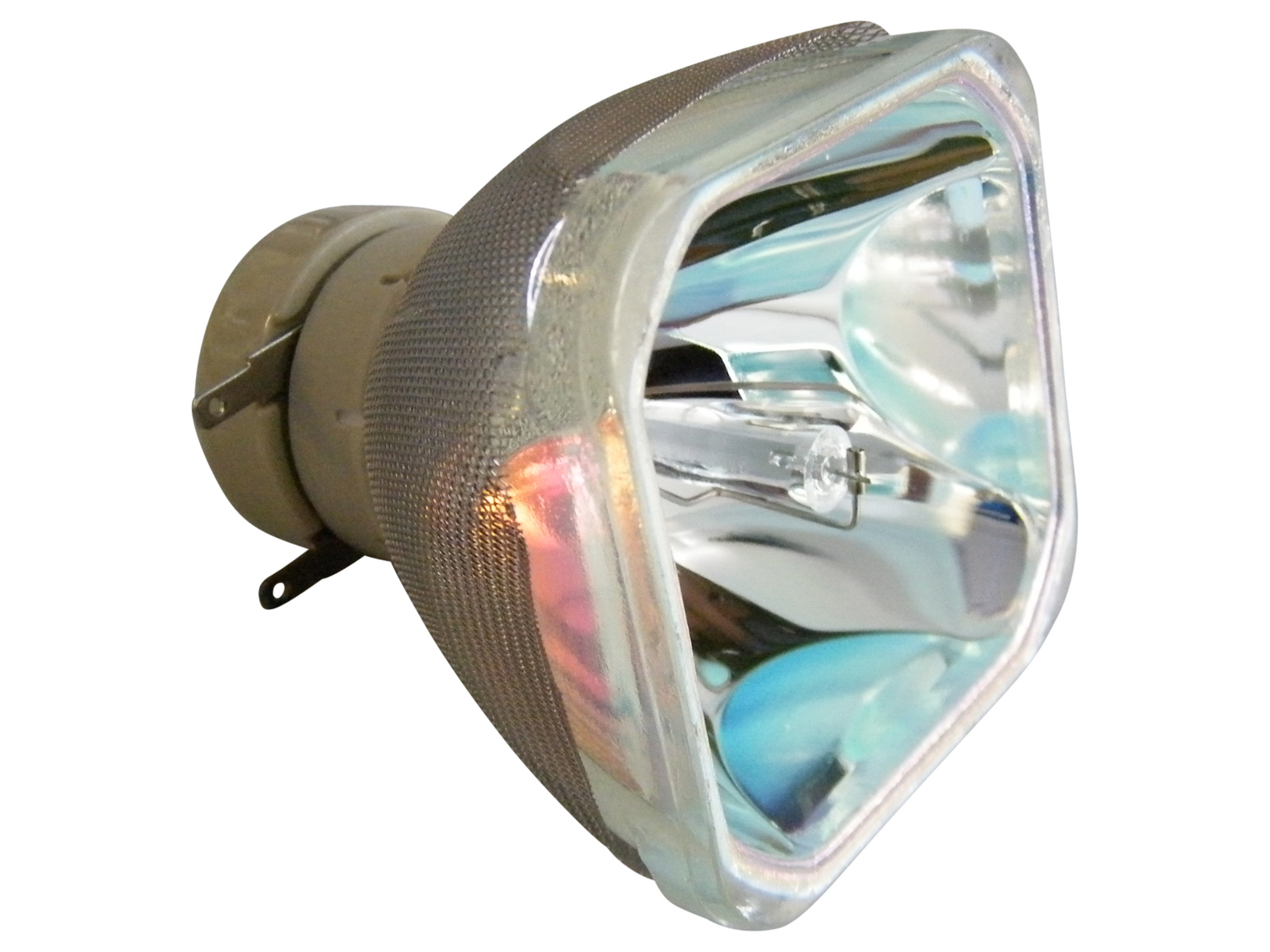

225W Lamp
Article Nr.: LMP-E220
|
|
| Light Life |
4000 h. 6000 h. in Eco Mode |
| Operating Costs |
-
|
|
54 - 58 cm
|
 |
|
Lux: |
1100 Lux |
|
Room light max.: |
220 Lux |
|
Candela pro m²: |
349 cd/m² |
|
Foot-Lamberts: |
102 fL |
|
 |
| 5 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,07 |
| Objective |
- |
| Throw Ratio |
0,27-0,29:1 show |
| Audio |
1 x 16W |
| Connections |
HDMI in
2 x D-sub 15pin in 1 x out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB Typ A, B in
RS232C Din 9 pin in
RJ45 in
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
294 / 255W in Eco Mode |
| Size WxHxD |
372 x 138 x 382 mm (14,6"x5,4"x15") 19,61 L/dm³
|
| Operating Noise |
35 / 28 dB in Eco Mode |
Key: 5 cm
Shift: 5 cm |
Shift: 4 cm
|
|
Shift: 4 cm
|
| |
|
|
| Weight |
6,00 kg / 13,23 lbs. |
| Keystone |
Vert.: +/-5°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
102 fL
/ max. 500 cm screen width |
| Candela m² |
349 cd/m² |
| Features |
 Lens shift Funktion
Eco Mode
Optional Wi-Fi network compatible.
Lan network compatible.
Short-throw projector
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL SX631 compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
39 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
35 |
| Black level: |
|
98 |
Power cons.: |
|
94 |
| Picture Total Points: | 46 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
22 |
| Ranking: |
140 (From: 974) |
|
|
|
|
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2016-01-07 09:56:32
|
| Data |
 Product Sheet english
Product Sheet english HC
|
Sony Website
