Brief Introduction
Beta 2.5 |

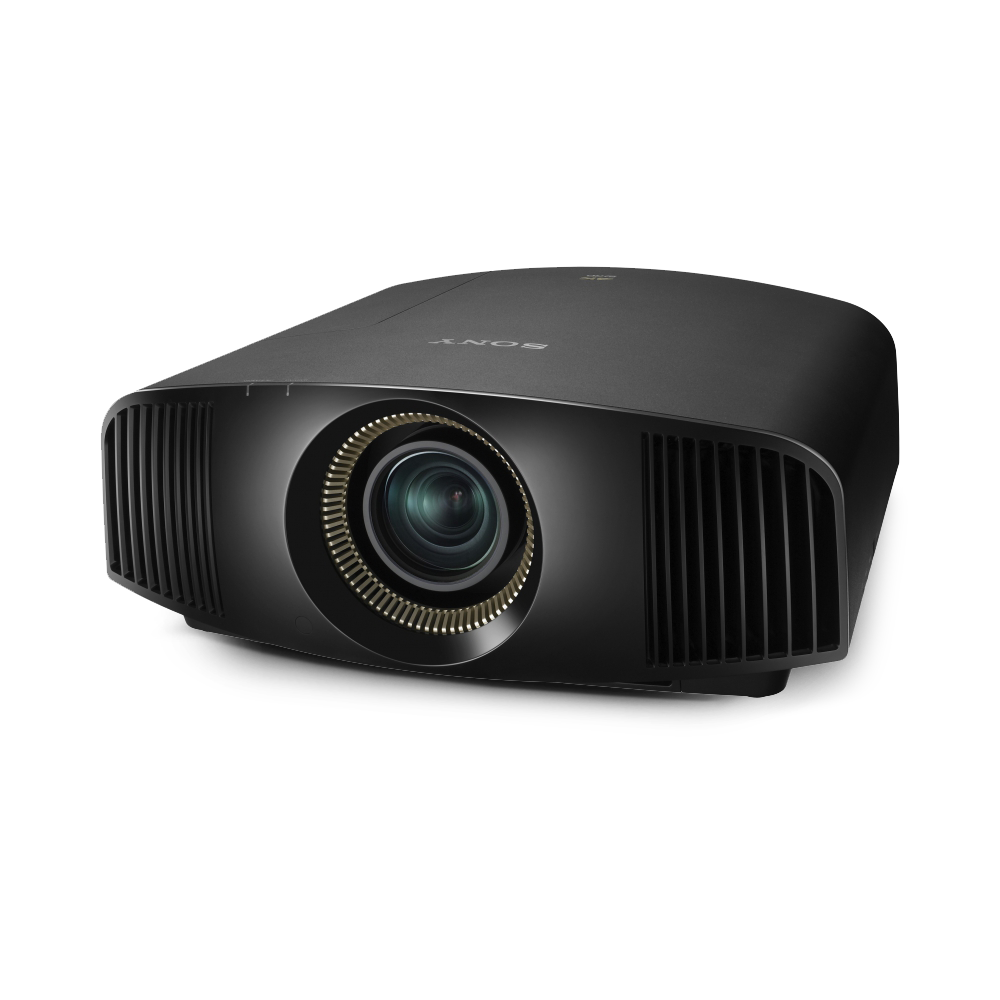

The VPL VW320ES 3D SXRD has 1500 Ansi lumens, a contrast of 300000:1 and a UHD (4K+2K) 4096 x 2160 resolution. The projector also offers a lens shift function that makes image adjustment childs play. An image width of up to 287 cm is possible. However, the picture should be smaller in room light. We recommend max. 191 cm. Furthermore, it is Full HD 1080P and 4K as well as 3D compatible, and therefore all currently available Blu-ray formats can be recognized by the projector. With an operating noise of just 26 decibels, the model is already very quiet compared to others. On the market since 2015, the model is no longer offered by the manufacturer Sony.
|
| Display Type |
3 x 0,74" SXRD Panel
UHD 19/10 Silicon X-tal Reflective Display (SXRD)
|
| Ansi-Lumen |
Projector |
1500 |
Screen |
711 Lux (200 cm Screen width) |
| Contrast |
300000:1 full on/off |
300000:1 full on/off
|
| Black Level |
0,0050 min. Lumen |
0,002 min. Lumen |
| Lens shift |
Vert.: +85% -80% Hori.: +/-31%
|
| Resolution |
UHD (4K+2K) 4096 x 2160
8.847.360 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
225W Lamp
Article Nr.: LMP-H220
|
|
| Light Life |
h. |
| Operating Costs |
-
|
|
276 - 566 cm
|
 |
|
Lux: |
711 Lux |
|
Room light max.: |
142 Lux |
|
Candela pro m²: |
226 cd/m² |
|
Foot-Lamberts: |
66 fL |
|
 |
| 85 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2,05 |
| Objective |
- |
| Throw Ratio |
1,38-2,83:1 show |
| Audio |
Nein |
| Connections |
2 x HDMI 2.0 mit HDCP 2.2 in
RJ45 in
2 x 12V Trigger out
3D Sync
USB in
RS232C
12V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
330W |
| Size WxHxD |
496 x 202 x 464 mm (19,5"x8"x18,3") 46,49 L/dm³
|
| Operating Noise |
26dB |
Shift: 90 cm
|
Shift: 62 cm
|
|
Shift: 62 cm
|
| |
|
|
| Weight |
14,00 kg / 30,86 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 19-72 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
66 fL
/ max. 287 cm screen width |
| Candela m² |
226 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
sRGB
Gamma correction
Dynamic iris
High Dynamic Range (HDR)
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL VW320ES compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
11 |
Weight: |
|
75 |
| Contrast: |
|
19 |
dB: |
|
76 |
| Black level: |
|
100 |
Power cons.: |
|
90 |
| Picture Total Points: | 43 |
Projector Total Points: | 80 |
|
| Popularity Top 100 |
|
| Points: |
|
21 |
| Ranking: |
163 (From: 499) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2015-09-03 07:56:54
|
