SONY VPL-VW500
|
| Customer review |
|
 |
|
Brief Introduction
Beta 2.5 |
The high-end home cinema Sony VPL VW500ES 3D SXRD projector has 1700 Ansi lumens, a contrast of 200000:1 and a UHD (4K+2K) 4096 x 2160 resolution. Including a lens shift function, which provides freedom during installation. A picture width of up to 305 cm is possible. However, the image should be smaller in room light. We recommend a maximum of 203 cm. Playing 1080P and 4K as well as 3D is also no problem for the projector, which means that all Blu-ray formats currently available can be recognized by the projector. At just 26 decibels, the device is one of the quieter projectors. It was launched in 2013 and is no longer offered by the manufacturer Sony, but is still very popular in our projector database.
|
| Display Type |
3 x 0,74" SXRD Panel
UHD 19/10 Silicon X-tal Reflective Display (SXRD)
|
| Ansi-Lumen |
Projector |
1700 |
Screen |
806 Lux (200 cm Screen width) |
| Contrast |
200000:1 |
200000:1
|
| Black Level |
0,0085 min. Lumen |
0,004 min. Lumen |
| Lens shift |
Vert.: +85% -80% Hori.: +/-31%
|
| Resolution |
UHD (4K+2K) 4096 x 2160
8.847.360 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

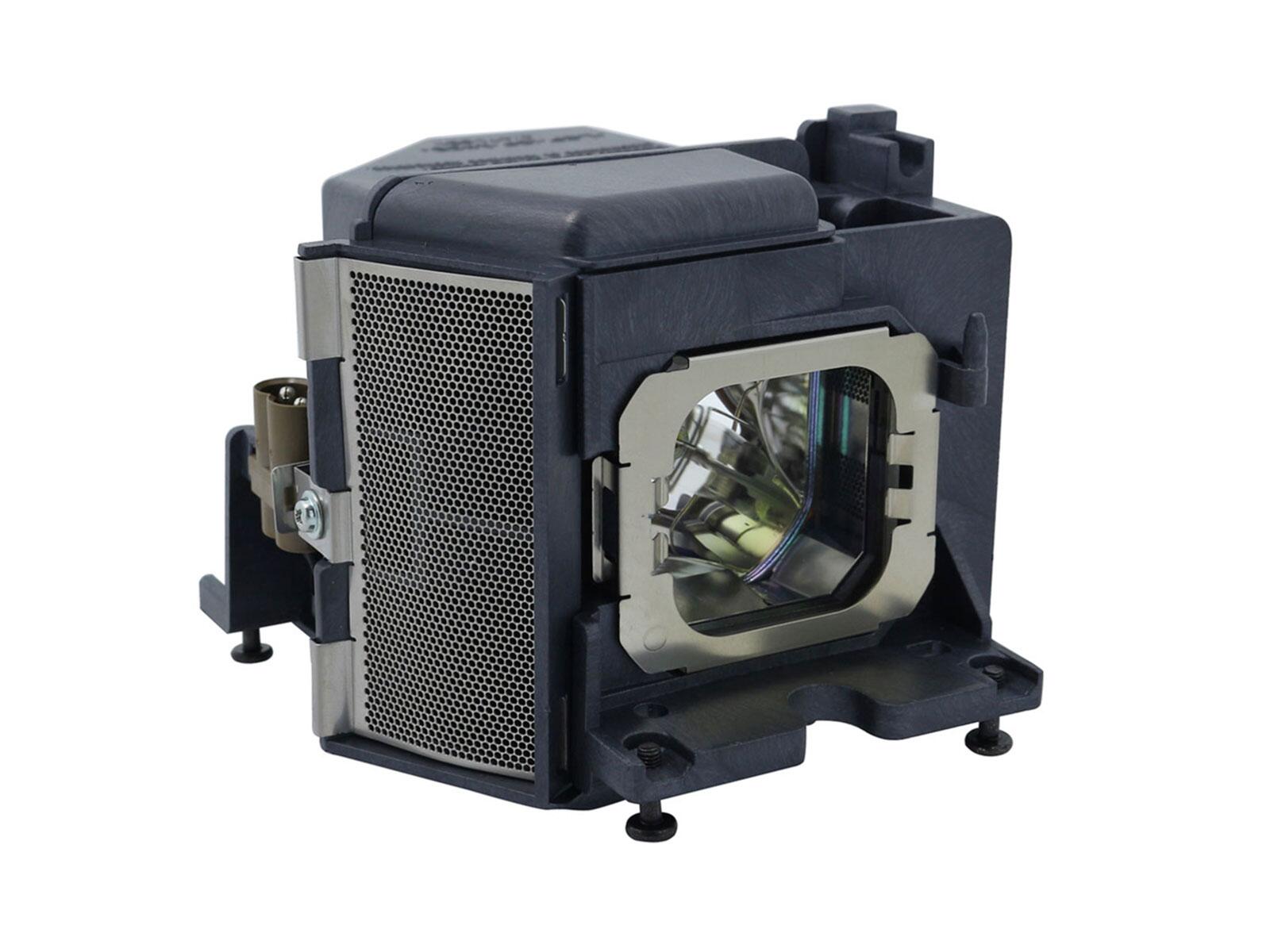

265W Lamp
Article Nr.: LMP-H260
|
|
| Light Life |
h. |
| Operating Costs |
-
|
|
254 - 546 cm
|
 |
|
Lux: |
806 Lux |
|
Room light max.: |
161 Lux |
|
Candela pro m²: |
257 cd/m² |
|
Foot-Lamberts: |
75 fL |
|
 |
| 85 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2,15 |
| Objective |
F=2,9-3,9 f=21,3-46,2 mm |
| Throw Ratio |
1,27-2,73:1 show |
| Audio |
- |
| Connections |
2 x HDMI 2.0
RJ45 in
2 x 12V Trigger out
3D Sync
USB in
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
375W |
| Size WxHxD |
495,6 x 195,3 x 463,6 mm (19,5"x7,7"x18,3") 44,69 L/dm³
|
| Operating Noise |
26dB |
Shift: 90 cm
|
Shift: 62 cm
|
|
Shift: 62 cm
|
| |
|
|
| Weight |
14,00 kg / 30,86 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
75 fL
/ max. 305 cm screen width |
| Candela m² |
257 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
sRGB
Gamma correction
Dynamic iris
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL VW500ES compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
13 |
Weight: |
|
75 |
| Contrast: |
|
12 |
dB: |
|
76 |
| Black level: |
|
100 |
Power cons.: |
|
87 |
| Picture Total Points: | 42 |
Projector Total Points: | 79 |
|
| Popularity Top 100 |
|
| Points: |
|
32 |
| Ranking: |
73 (From: 499) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2013-09-04 17:01:07
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
Product Sheet english Serie 2014
Press release english
User Manual english (3.05 MB)

|
|
|
Autor:
Martin Wieland 03.04.14 |
|
5 Stars |
Reference! |
|
The 500 conjures up a breathtaking picture on the screen in native 4k mode, you literally believe you are looking into a window to reality.
HD sources are once again greatly enhanced with Reality Creation, the difference to 4k is smaller than you might think. The menu and operating instructions are also easy to understand and it‘s easy to find your way around. There is nothing to complain about. The 3D has also been revised again with software version 1.006 and is also second to none, with zero ghosting. For me as a filmmaker and cineaste, the projector is worth every penny, and there are quite a few of them
Clear reference image compared to HD projectors.
|
|
|
|
