Brief Introduction
Beta 2.5 |
The Sony VPL EW225 LCD projector has 2600 Ansi lumens, a contrast of 2300:1 and a WXGA 1280 x 800 resolution. 2600 Ansi lumens ensure that a picture width of 518 cm is also possible. However, if room light is available, the picture should be a maximum of 345 cm wide. Furthermore, the projector can play 1080P without any problems. The model built in 2012 is no longer offered by Sony.
|
| Display Type |
3 x 0,59" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2600 / 1500 im Eco Mode |
Screen |
1040 Lux (200 cm Screen width) |
| Contrast |
2300:1 full on/off |
2300:1 full on/off
|
| Black Level |
1,1304 min. Lumen |
0,453 min. Lumen |
| Offset |
-
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |

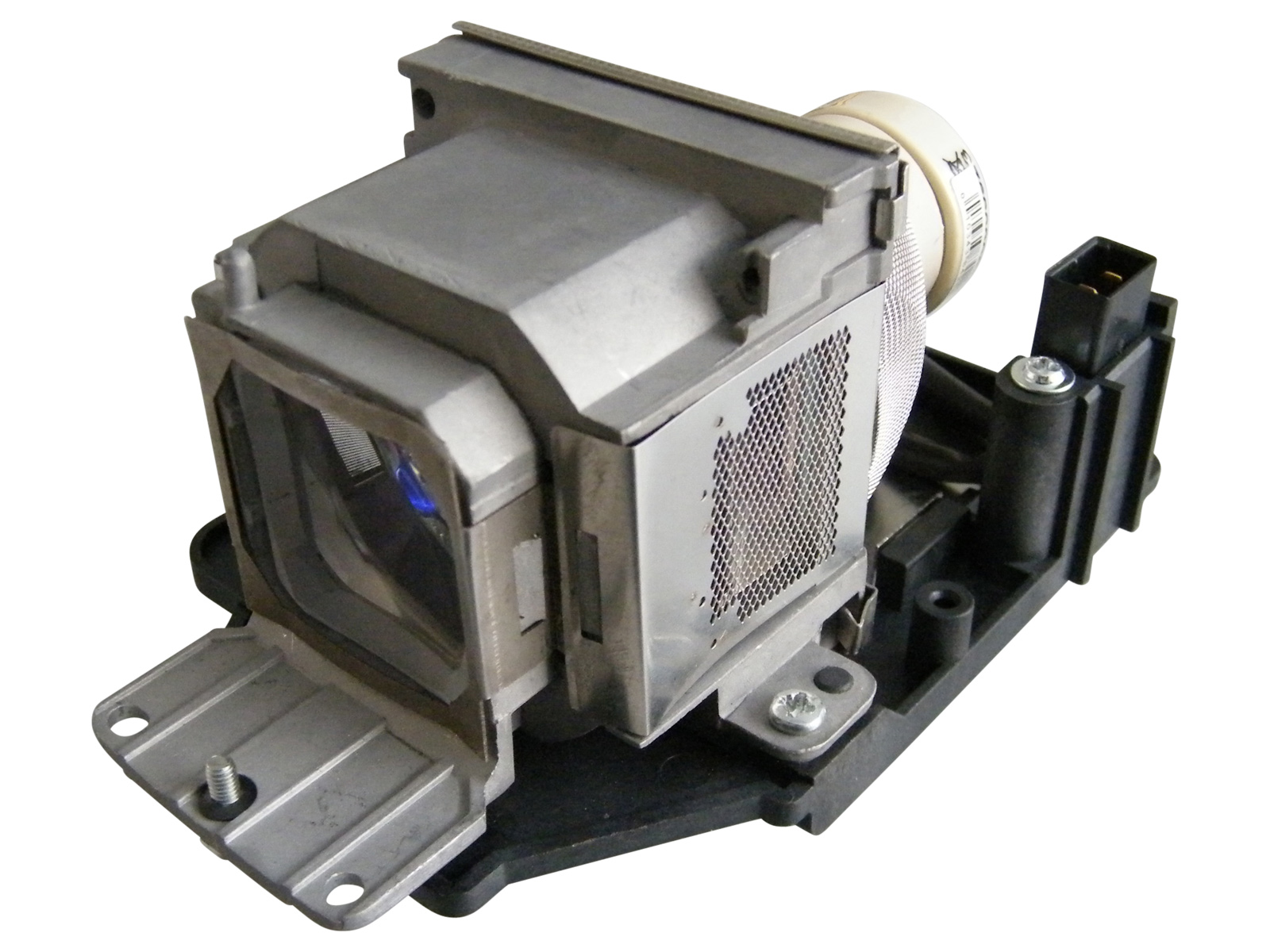

| Light Source |
210W Lamp
Article Nr.: LMP-E212
|
|
| Light Life |
3000 h. 7000 h. in eco Mode |
| Operating Costs |
|
|
274 - 360 cm
|
 |
|
Lux: |
1040 Lux |
|
Room light max.: |
208 Lux |
|
Candela pro m²: |
332 cd/m² |
|
Foot-Lamberts: |
97 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,31 |
| Objective |
- |
| Throw Ratio |
1,37-1,80:1 show |
| Audio |
2 x 8W |
| Connections |
HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in
RS232C
RJ45 in
USB Typ A,B
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
227 / 218W in Eco Mode |
| Size WxHxD |
365 x 105,3 x 252,5 mm (14,4"x4,1"x9,9") 9,66 L/dm³
|
| Operating Noise |
- |
|
| Weight |
3,90 kg / 8,6 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
- |
| Frequenz |
H-sync: 19-92 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
97 fL
/ max. 518 cm screen width |
| Candela m² |
332 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Freeze
Blank (Black screen button)
Eco Mode
Lan network compatible.
Digital Zoom
Auto Dimming Mode
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL EW225 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
31 |
Weight: |
|
81 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 43 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
1234 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
