Sony VPL-FHZ90L /W/B


Sony VPL-FHZ90LW | Sony VPL-FHZ90LB

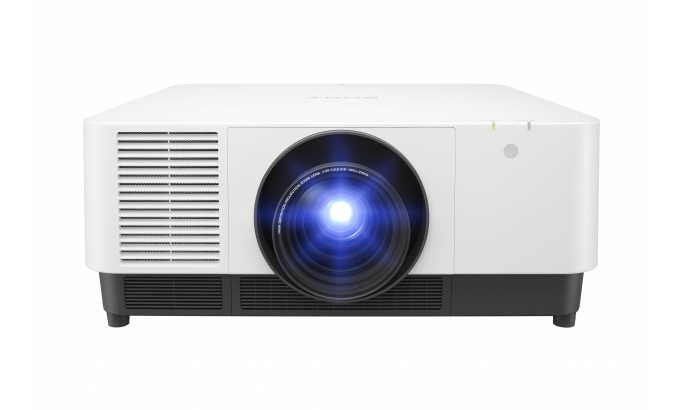

Image Sony VPL-FHZ90L /W/B
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The Sony VPL-FHZ90L / is a Laser-LCD projector offering 9000 ANSI lumens and a WUXGA 1920 x 1200 resolution. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours, which translates to 13.7 years with 4 hours of daily use. You can choose between black and white for the housing color.
Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Lens Calculator.
A look at the light output reveals: The 9000 ANSI lumens are sufficient to illuminate an image width of up to 964 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 643 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable.
The projector was released in 2018 and is officially no longer distributed by Sony.
Display Type       3 x LCD TFT Panel
      WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
9000
Screen
4000 Lux (200 cm Screen width)
Contrast - -
Black Level - -
Lens shift Vert.: +/-107% Hori.: +/-60%
 Lens shift
107%  120cm
107%  120cm
60%  120cm
60%  120cm
+ Projector
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser
Order Accessories
56,23 €
Light Life 20000 h.
Operating Costs 0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 4000 Lux
Contrast:
Candela pro m²: 1275 cd/m²
Foot-Lamberts: 372 fL
120 cm



Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio Nein
Connections HDMI 1.4 in
DVI-D in
D-sub 15pin in und out
5 x BNC RGBHV in
USB Typ A in
RS232C Din 9 pin in
HDBaseT in
RJ45 in
Ceiling Mounting Yes, is possible.
Power -
Size WxHxD 544 x 205 x 564 mm (21,4"x8,1"x22,2") 62,9 L/dm³
Operating Noise -

Shift: 120 cm

Shift: 120 cm

Shift: 120 cm

Shift: 120 cm

Weight 28,00 kg / 61,73 lbs.
Keystone Vert.: +/-30°
Hori.: +/-30°
Illumination -
Frequenz H-sync: 15-92 kHz
V-sync: 48-92 Hz
Foot-Lamberts 372 fL / max. 964 cm screen width
Candela m² 1275 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Lan network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Sony VPL-FHZ90L /W/B compared to others not current "Stationary" projectors.
Ansi-Lumen:
90 Weight:
88
Contrast: 0 dB: 0
Black level: 0 Power cons.: 0
Picture Total Points:0 Projector Total Points:0
Popularity Top 100
18 popularity points 9 popularity points 14 popularity points 1 popularity points 12 popularity points 4 popularity points
Points:
4
Ranking: 888 (From: 2536)
Optional accessories
object lens OriginalVPLL-Z41112.090,28 €
object lens OriginalVPLL-Z4025EOL €
object lens OriginalVPLL-Z4015EOL €
remote control Original149289111 / RM-PJ27 / 148909211 / RM-PJ1956,23 €
ceiling bracket white Halterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
VPLL-Z4025 3.02-5.58:1 604-1116 m +/-107% +/-60% Powered
VPLL-Z4019 2.41-3.07:1 482-614 m +/-107% +/-60% Powered
VPLL-Z4015 1.85-2.44:1 370-488 m +/-98% +/-51% Powered
VPLL-Z4111 1.3-1.95:1 260-390 m +/-99% +/-51% Powered
VPLL-4008 1:1 200 m +/-32% +/-15% No Zoom
Status 2018 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Sony Website
Product Sheet english
Product Sheet english
Product Sheet english HC
Product Sheet japanisch
User Manual english (4.85 MB)

Projektor Sony VPL-FHZ90L /W/B Projektor Sony VPL-FHZ90L /W/B Projektor Sony VPL-FHZ90L /W/B Projektor Sony VPL-FHZ90L /W/B Projektor Sony VPL-FHZ90L /W/B Projektor Sony VPL-FHZ90L /W/B
