Brief Introduction
Beta 2.5 |

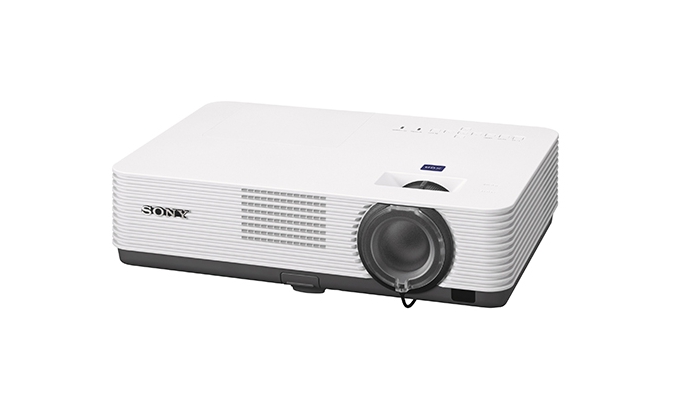

A brief introduction to the Sony VPL-DX270. The standard portable LCD projector has an XGA 1024 x 768 resolution and a contrast of 4000:1. The manufacturer Sony specifies a lamp life of 10000 hours, which converts to over 13.7 years at 2 hours of use. An image width of up to 515 cm is possible as the projector has 3500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 343 cm. Furthermore, the projector can play 1080P without any problems. On the market since 2016, the model is no longer offered by the manufacturer Sony.
|
| Display Type |
3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3500 / 2200 im Eco Mode |
Screen |
1167 Lux (200 cm Screen width) |
| Contrast |
4000:1 full on/off |
4000:1 full on/off
|
| Black Level |
0,8750 min. Lumen |
0,292 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
215W Lamp
Article Nr.: LMP-D214
|
|
| Light Life |
3000 h. 10000 h. in eco Mode |
| Operating Costs |
|
|
274 - 360 cm
|
 |
|
Lux: |
1167 Lux |
|
Room light max.: |
233 Lux |
|
Candela pro m²: |
370 cd/m² |
|
Foot-Lamberts: |
108 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
- |
| Throw Ratio |
1,37-1,80:1 show |
| Audio |
1 x 1W |
| Connections |
2 x HDMI in
D-sub 15pin in
Cinch Video in
Mini Jack Audio out
USB Typ A |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
325,1 x 79,8 x 230,5 mm (12,8"x3,1"x9,1") 5,91 L/dm³
|
| Operating Noise |
41 / 35 dB in Eco Mode |
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 19-92 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
108 fL
/ max. 515 cm screen width |
| Candela m² |
370 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL-DX270 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
21 |
| Black level: |
|
97 |
Power cons.: |
|
0 |
| Picture Total Points: | 47 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
1511 (From: 7662) |
|
|
|
|
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2023-08-04
