Brief Introduction
Beta 2.5 |
With the VPL DX146, manufacturer Sony offers a standard portable LCD projector with XGA 1024 x 768 resolution and a contrast of 2500:1. An image width of up to 493 cm is possible as the projector has 3200 Ansi lumens. However, if room light is available, the image should be a maximum of 329 cm wide. The model is also Full HD 1080P compatible. The model built in 2013 is no longer offered by Sony.
|
| Display Type |
3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3200 / 1900 im Eco Mode |
Screen |
1067 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
1,2800 min. Lumen |
0,427 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |

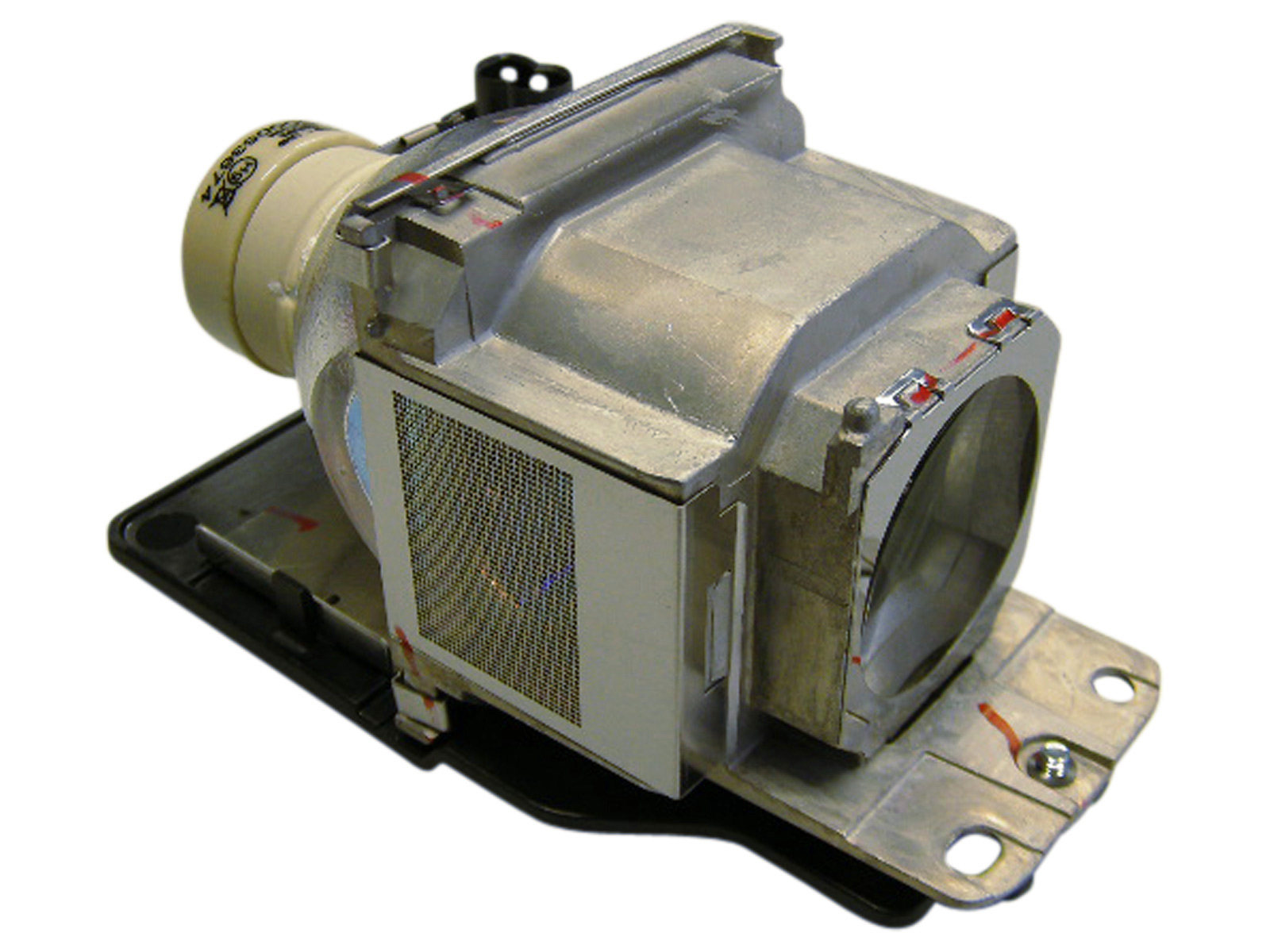

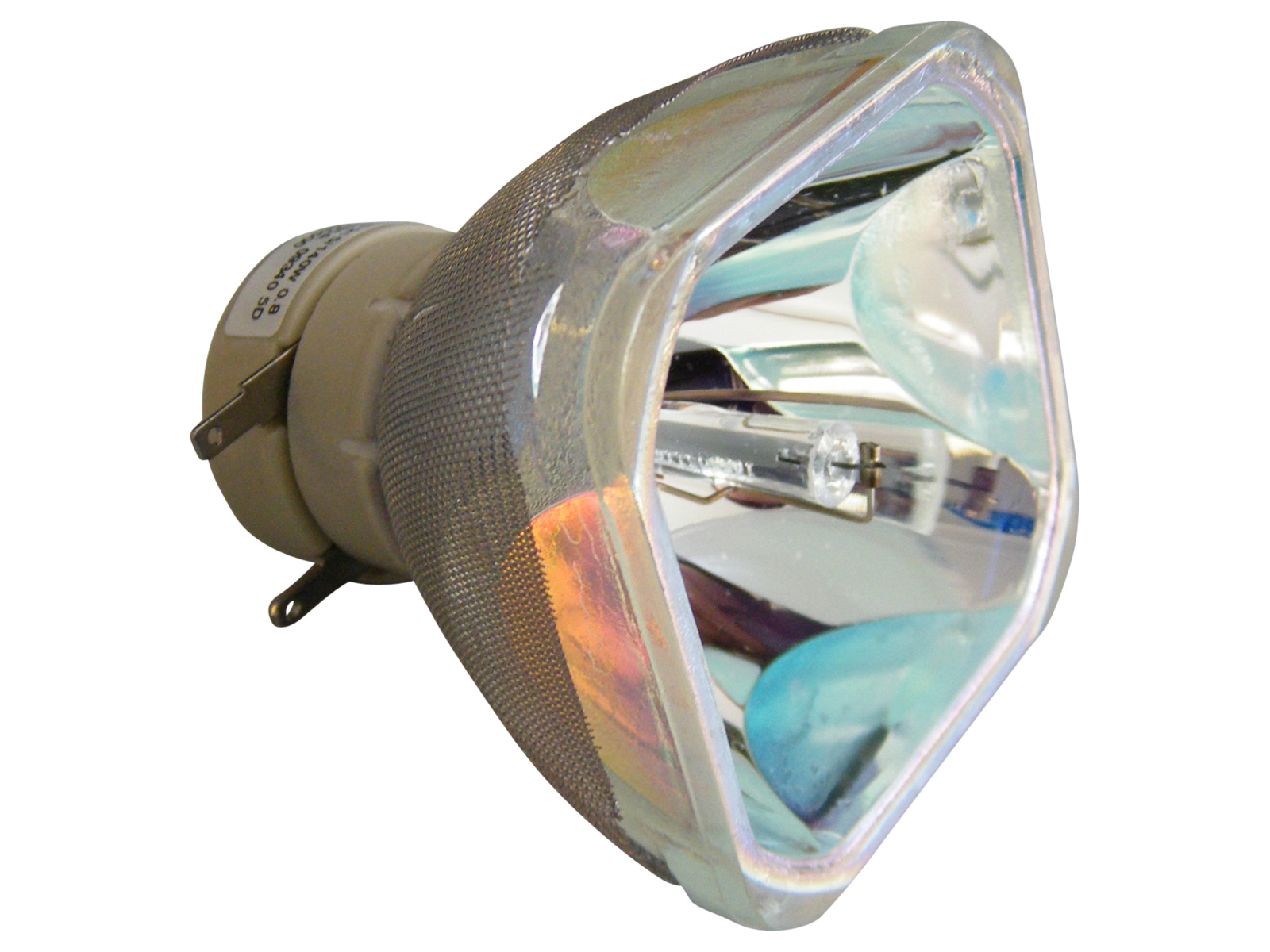

| Light Source |
210W Lamp
Article Nr.: LMP-D213
|
|
| Light Life |
3000 h. 7000 h. in eco Mode |
| Operating Costs |
|
|
274 - 360 cm
|
 |
|
Lux: |
1067 Lux |
|
Room light max.: |
213 Lux |
|
Candela pro m²: |
339 cd/m² |
|
Foot-Lamberts: |
99 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,31 |
| Objective |
- |
| Throw Ratio |
1,37-1,80:1 show |
| Audio |
1 x 1W Mono |
| Connections |
HDMI in
D-sub 15 pin in
Cinch Video in
USB Typ A,B
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
279 / 223W in Eco Mode |
| Size WxHxD |
315 x 87,2 x 233 mm (12,4"x3,4"x9,2") 6,39 L/dm³
|
| Operating Noise |
- |
|
| Weight |
2,50 kg / 5,51 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
99 fL
/ max. 493 cm screen width |
| Candela m² |
339 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Freeze
Eco Mode
Lan network compatible.
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL DX146 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
30 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 42 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2275 (From: 7662) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-09-11
Created: 2013-10-21 17:03:14
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (3.53 MB)
|
Sony Website
