Brief Introduction
Beta 2.5 |

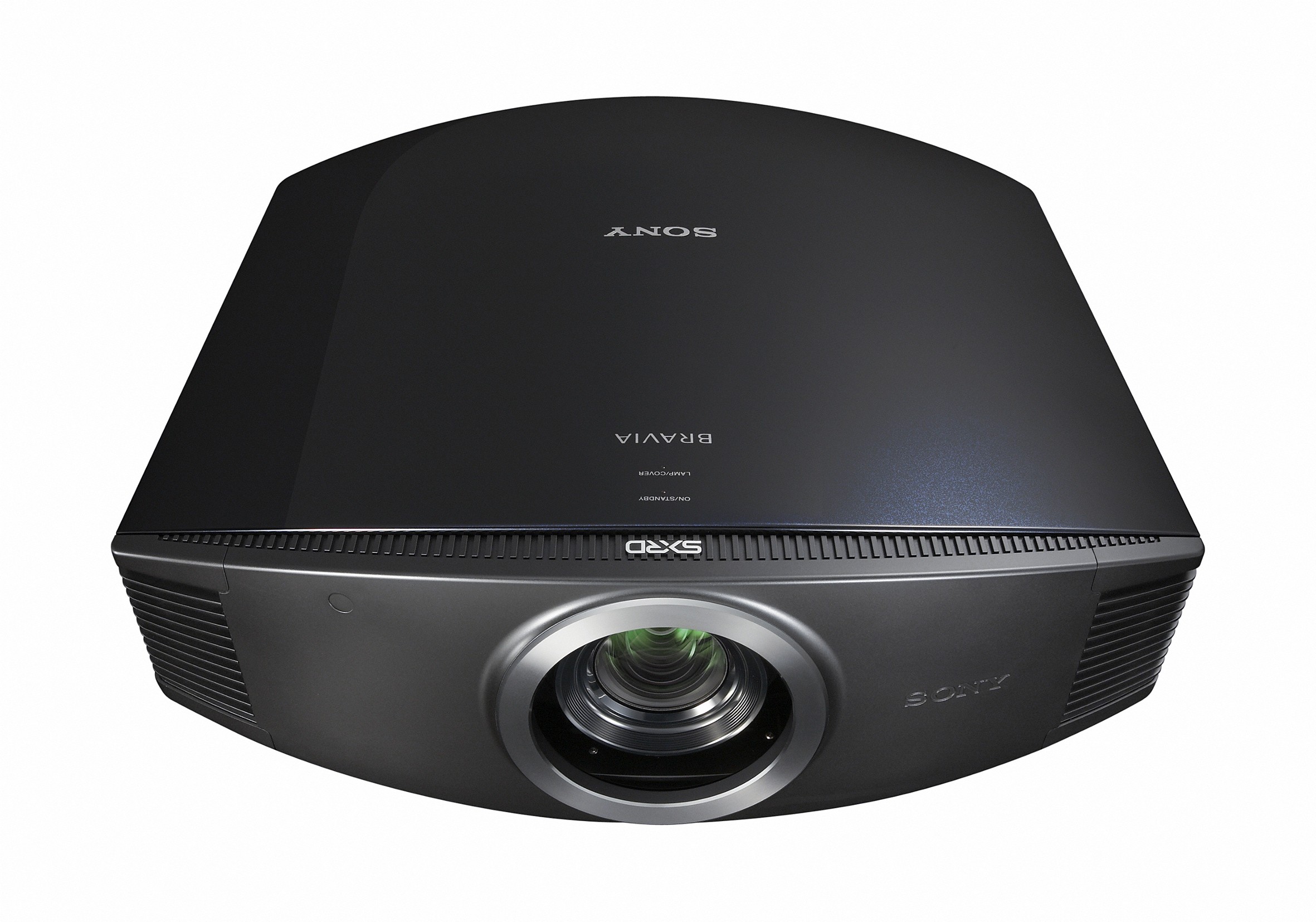

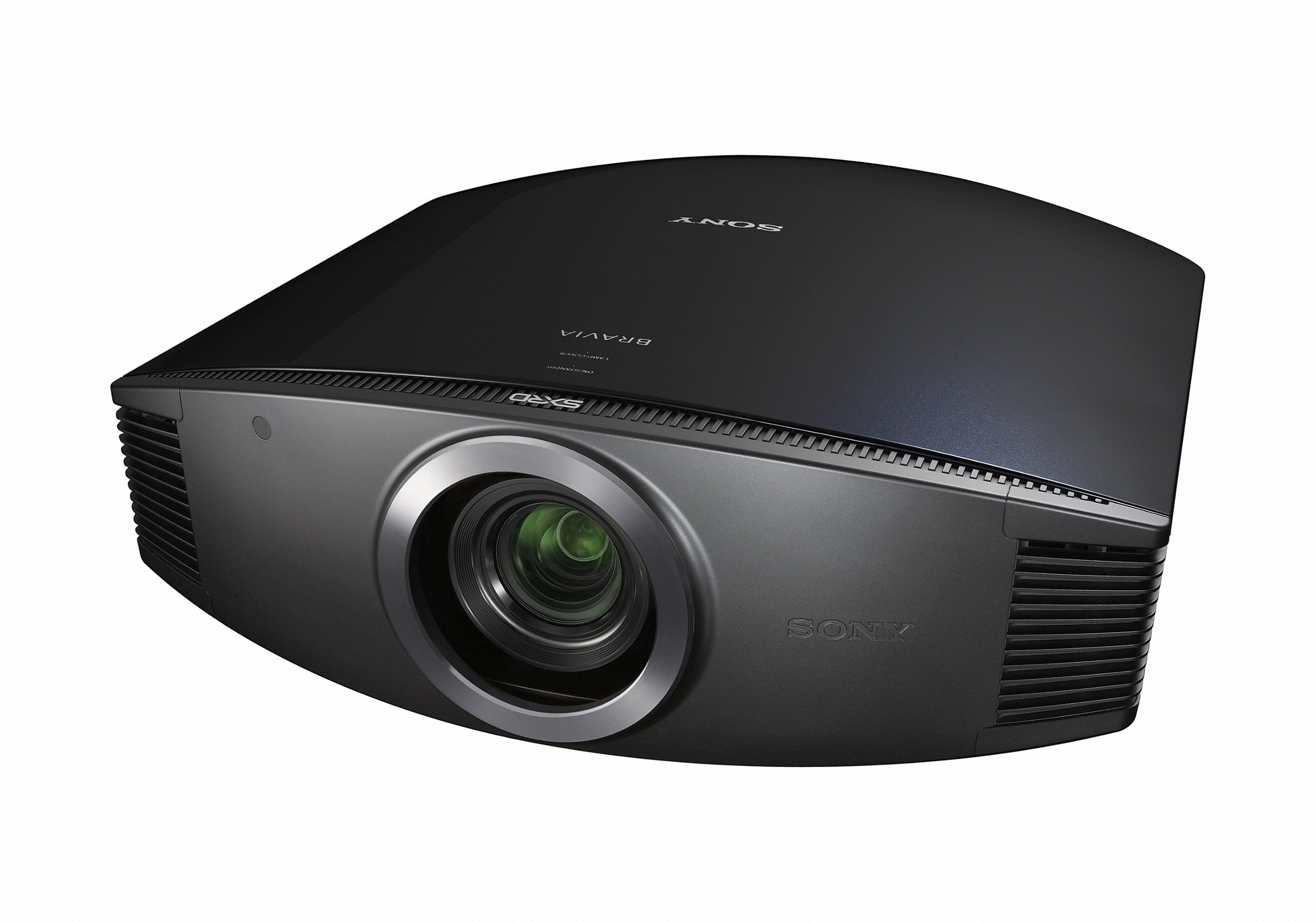

The high-end home cinema VPL VW80 SXRD has 800 Ansi lumens, a contrast of 60,000:1 and an HDTV 1920 x 1080 resolution. The built-in lens shift function provides freedom when setting up. The projector can illuminate a picture width of up to 287 cm thanks to the 800 Ansi lumens. In room light, however, the picture width should ideally be less than 191 cm. It is also Full HD 1080P compatible. At just 20 decibels, the device is one of the quieter projectors. On the market since 2008, the model is no longer offered by the manufacturer Sony, but is still a popular projector in our database.
|
| Display Type |
3 x 0,61" SXRD Panel
HDTV 16/9 Silicon X-tal Reflective Display (SXRD)
|
| Ansi-Lumen |
Projector |
800 |
Screen |
356 Lux (200 cm Screen width) |
| Contrast |
60000:1 |
60000:1
|
| Black Level |
0,0133 min. Lumen |
0,006 min. Lumen |
| Lens shift |
Vert.: +65% -0% Hori.: +/-25%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
200W UHP Lamp
Article Nr.: LMP-H201
|
|
| Light Life |
3000 h. |
| Operating Costs |
-
|
|
274 - 438 cm
|
 |
|
Lux: |
356 Lux |
|
Room light max.: |
71 Lux |
|
Candela pro m²: |
113 cd/m² |
|
Foot-Lamberts: |
33 fL |
|
 |
| 73 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,6 |
| Objective |
F=2,50-3,40 f=18,5-29,6 mm |
| Throw Ratio |
1,37-2,19:1 show |
| Audio |
- |
| Connections |
2 x HDMI in
D-sub 15 pin in
YUV in
S-Video in
Cinch Video in
RS232C Din 9 pin in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
320W |
| Size WxHxD |
470 x 179,2 x 482,4 mm (18,5"x7,1"x19") 40,55 L/dm³
|
| Operating Noise |
20dB |
Shift: 73 cm
|
Shift: 50 cm
|
|
Shift: 50 cm
|
| |
|
|
| Weight |
12,00 kg / 26,46 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 19-72 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
33 fL
/ max. 287 cm screen width |
| Candela m² |
113 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
sRGB
Gamma correction
Dynamic iris
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL VW80 compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
4 |
Weight: |
|
79 |
| Contrast: |
|
4 |
dB: |
|
97 |
| Black level: |
|
100 |
Power cons.: |
|
90 |
| Picture Total Points: | 36 |
Projector Total Points: | 89 |
|
| Popularity Top 100 |
|
| Points: |
|
27 |
| Ranking: |
106 (From: 499) |
|
|
|
| In Test
|
-
|
|
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2023-08-04
|
