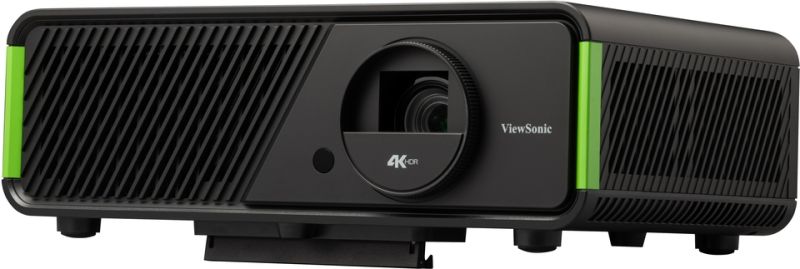

Viewsonic X1-4KE Pro

Image Viewsonic X1-4KE Pro
Customer review
Offer Ads
Discover the popular projector on Amazon.
Model Overview The projector X1-4KE Pro by Viewsonic utilizes DLP technology and, according to the spec sheet, achieves 2500 ANSI lumens, a contrast of 3500000:1 at a resolution of UHD (4K2K) 3840 x 2160. An LED lifespan of 60000 hours is noted in the data sheet for this model – equivalent to a usable life of 41.1 years at 4 hours a day.
To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction. Precise setup distances can be determined in the Lens Shift Calculator.
Looking at practical performance, up to 508 cm can be illuminated with 2500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 339 cm.
For media input, video signals up to 1080P and 4K as well as 3D are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. Equipped with Google TV, the device provides direct access to a broad spectrum of streaming services. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers.
Display Type 1 x 0,65" DMD DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2500
Screen
1111 Lux (200 cm Screen width)
Contrast 3500000:1 full on/off 3500000:1 full on/off
Black Level 0,0007 min. Lumen 0 min. Lumen
Lens shift Vert.: +65% --55%
 Lens shift
10%  11cm
+ Projector 6 cm over screen top edge.
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
Media player formats: doc/docx xls/xlsx ppt/pptx Pdf avi mp4* mov mkv ts vob mpg JPEG/.jpeg bmp png
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p)
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application Homecinema | Gaming | Medium screen width or rooms with little light, max. 100 lumens.
Light Source 3th Gen RGGB LED
Light Life 60000 h.
Operating Costs 0,00 € LED
Calculated brightness quality
The screen width may also be larger. Perfect
230 - 300 cm
Lux: 1111 Lux
Contrast: 3500000:1
Candela pro m²: 353 cd/m²
Foot-Lamberts: 103 fL
73 cm


Screen width:cm
          Room:
•
Focus Manual
Zoom Manual x1,3
Objective F=2,48-2,78 f=16,89-21,87 mm
Throw Ratio 1,15-1,5:1 show
Audio 2 x 6W Cube

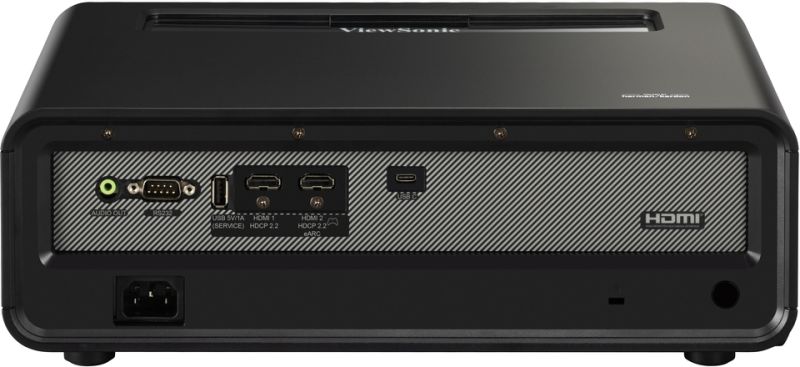

Connections 2x HDMI 2.0 (HDCP2.2, eARC) in
USB-A (5V/1A) in
USB-C in
Mini Jack Audio in und out
RS232C DB-9 Pin in
Bluetooth 5.0
Ceiling Mounting Yes, is possible.
Size WxHxD 355 x 121 x 244 mm (14"x4,8"x9,6") 10,48 L/dm³
Power 236W
Keystone & Lens shift
Key: 248 cm
Shift: 73 cm

Key: 193 cm
+
+
SCREEN

Key: 193 cm
Key: 138 cm
Shift: -62 cm

Operating Noise 33 / 29 dB in Eco Mode
Weight 3,68 kg / 6,61 lbs.
Keystone Vert.: +/-40°
Hori.: +/-40°
Illumination -
Frequenz H-sync: 15-135 kHz
V-sync: 23-120 Hz
Foot-Lamberts 103 fL / max. 508 cm screen width
Candela m² 353 cd/m²
Features Real Full HD 3D
4K UHD (Ultra High Definition)
Integrated Media Player
Eco Mode
High Dynamic Range (HDR)
360° Installation Capable
Password Protection
W-Lan Netzwerk kompatibel.
Google TV
Bluetooth
Local storage 16GB (10GB available)
Game Mode input latency: 4.2ms
Refresh rate: 120Hz @ 1440p
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Viewsonic X1-4KE Pro compared to others current "Homecinema" projectors.
Ansi-Lumen:
19 Weight:
96
Contrast:
58 dB:
52
Black level:
100 Power cons.:
79
Picture Total Points:59 Projector Total Points:76
Popularity Top 100
0 popularity points in May 0 popularity points in June 0 popularity points in July 0 popularity points in August 12 popularity points in September 13 popularity points in October
Points:
13
Ranking: 86 (From: 153)
Live-Trend (Last 3 days)   LiveLIVE
Points: 9 -4% Trend
Please note Game Ready: Inputlag 4.2ms , 1440p @ 120 Hz
Status 2023 Current model // Last update of the data: 2026-11-19
