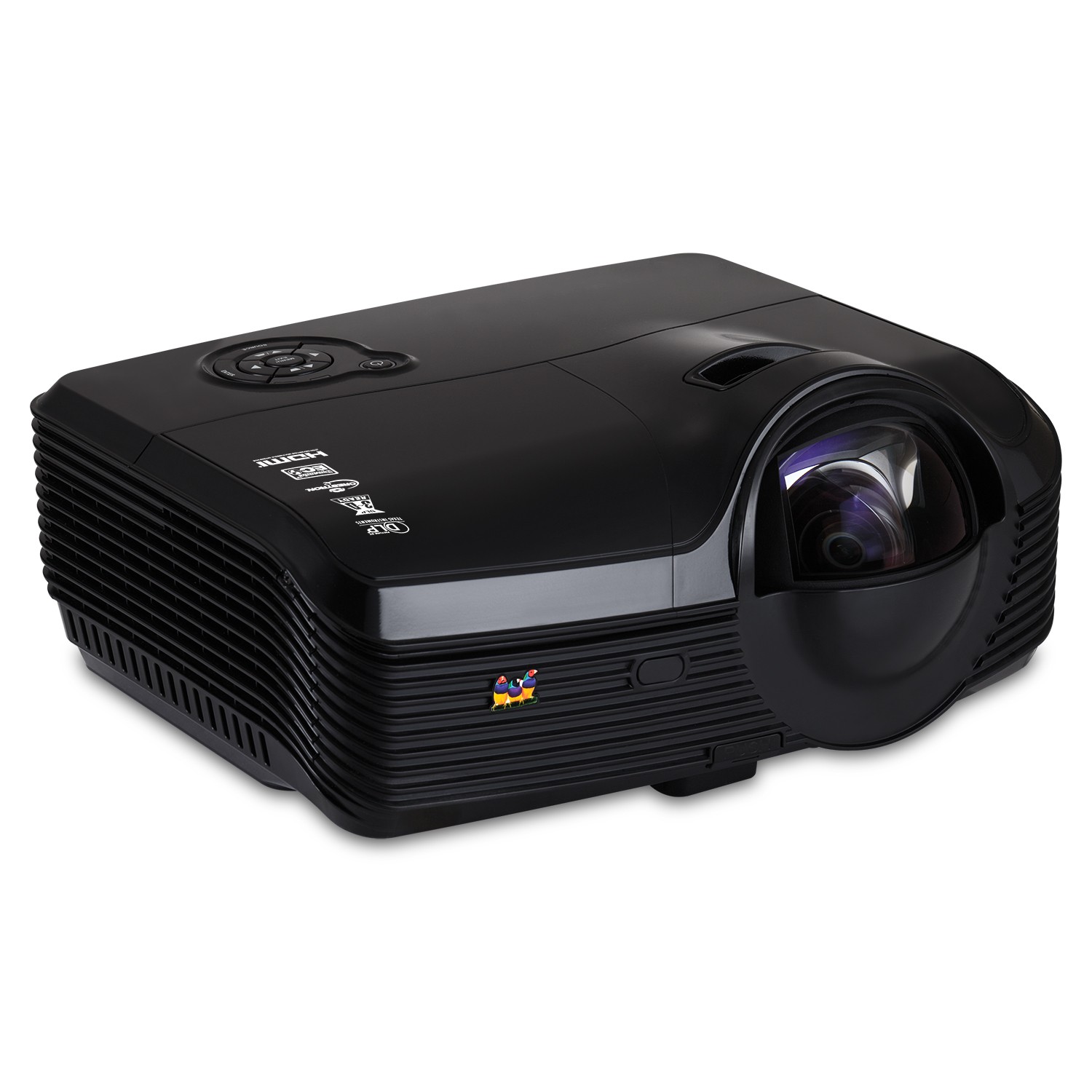

The technical data of the Viewsonic PJD8333s includes 3000 ANSI lumens, a contrast of 15000:1 as well as a XGA 1024 x 768 display. According to Viewsonic, the lamp has a durability of 3500 hours. Thanks to its low throw ratio, the model is excellently suited for rooms with limited space. A distance of just 94 cm is sufficient to generate an image width of 2 meters. A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 477 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 318 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2013 and is officially no longer distributed by Viewsonic.
Display Type
1 x 0,55" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3000
Screen
1000 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,2000 min. Lumen
0,067 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Calculated brightness quality The screen width may also be larger. Perfect
94 cm (no Zoom)
Lux:
1000 Lux
Contrast:
15000:1
Candela pro m²:
319 cd/m²
Foot-Lamberts:
93 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
0,468:1
Audio
1 x 16W
Connections
HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A, B in
RJ45 in
RS232C Din 9 pin in
12V Trigger out
Ceiling Mounting
Yes, is possible.
Power
350W
Size WxHxD
335 x 128,30 x 265 mm (13,2"x5,1"x10,4") 11,36 L/dm³
Real Full HD 3D Full HD 1080P compatible Freeze Eco Mode Kensington Slot BrilliantColor™ Remote control with laser pointer und mouse control Optional Wi-Fi network compatible. Lan network compatible. Short-throw projector Crestron®-Software compatible. DICOM simulation 6-seg RGBCYW colour wheel Digital zoom 1.6x.
Real Full HD 3D
