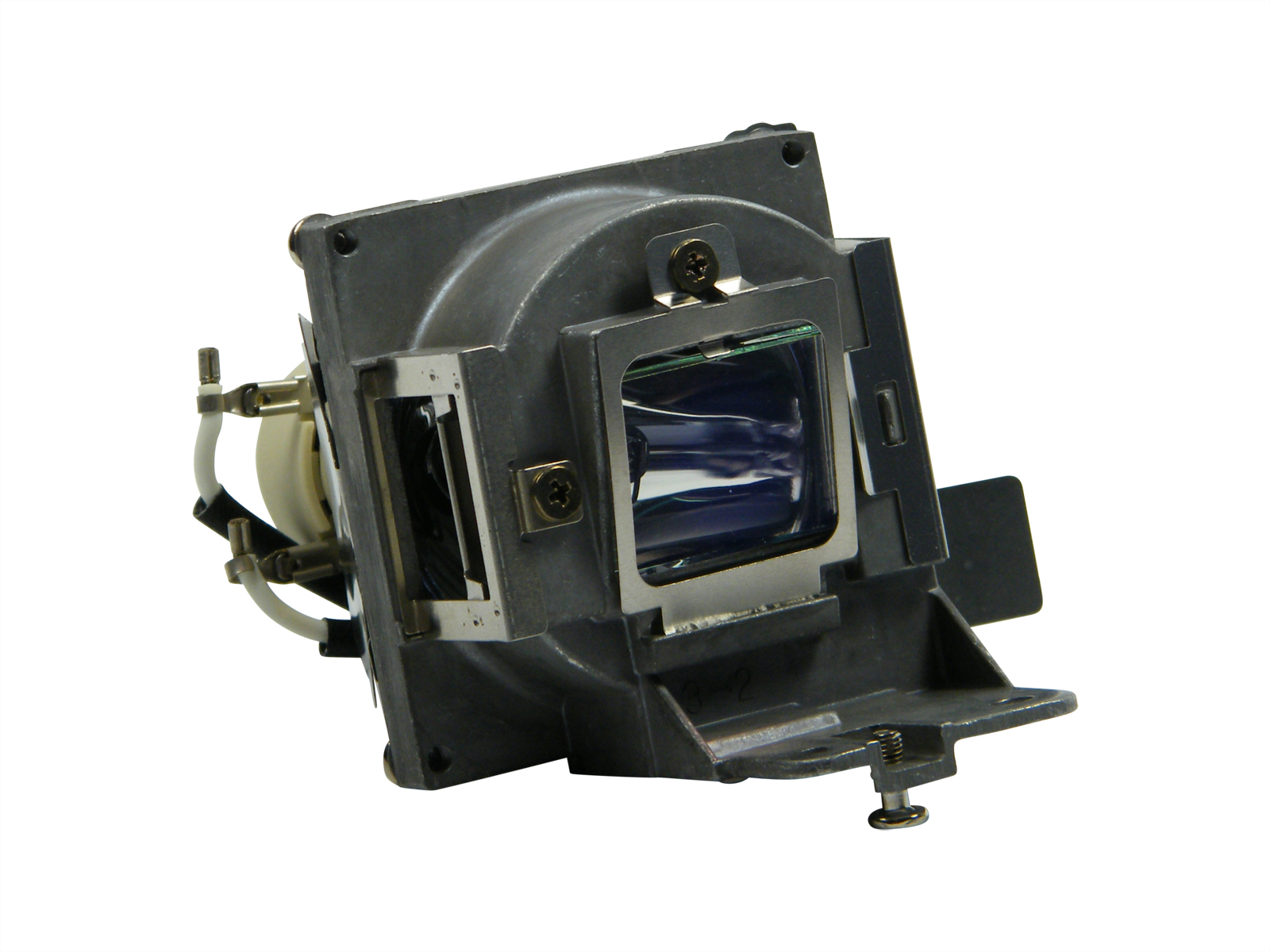

The hardware properties of the PJD6552LW manufactured by Viewsonic include 3200 ANSI lumens, a WXGA 1280 x 800 resolution and a contrast value of 22000:1. The manufacturer rates the durability of the included lamp at 4000 hours. A daily usage of 2 hours makes an operational lifespan of 5.5 years possible. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. A look at the light output reveals: The 3200 ANSI lumens are sufficient to illuminate an image width of up to 575 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 383 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2015, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3200
Screen
1280 Lux (200 cm Screen width)
Contrast
22000:1 full on/off
22000:1 full on/off
Black Level
0,1455 min. Lumen
0,058 min. Lumen
Offset
65% 19 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Real Full HD 3D
