According to Viewsonic, the PJD8633ws model provides 3000 ANSI lumens, a contrast ratio of 15000:1 alongside a WXGA 1280 x 800 resolution. According to Viewsonic, the included lamp lasts up to 3500 hours. The short-throw capabilities allow for large images at a short projection distance. According to specifications, a 2-meter wide image requires a distance of only 75 cm. A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 556 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 371 cm. For media input, video signals up to 1080P as well as 3D are supported. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2013, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3000
Screen
1200 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,2000 min. Lumen
0,08 min. Lumen
Offset
-
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Calculated brightness quality The screen width may also be larger. Perfect
75 cm (no Zoom)
Lux:
1200 Lux
Contrast:
15000:1
Candela pro m²:
380 cd/m²
Foot-Lamberts:
111 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
0,375:1
Audio
1 x 16W
Connections
HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A, B in
RJ45 in
RS232C Din 9 pin in
12V Trigger out
Ceiling Mounting
Yes, is possible.
Power
350W
Size WxHxD
335 x 128,30 x 265 mm (13,2"x5,1"x10,4") 11,36 L/dm³

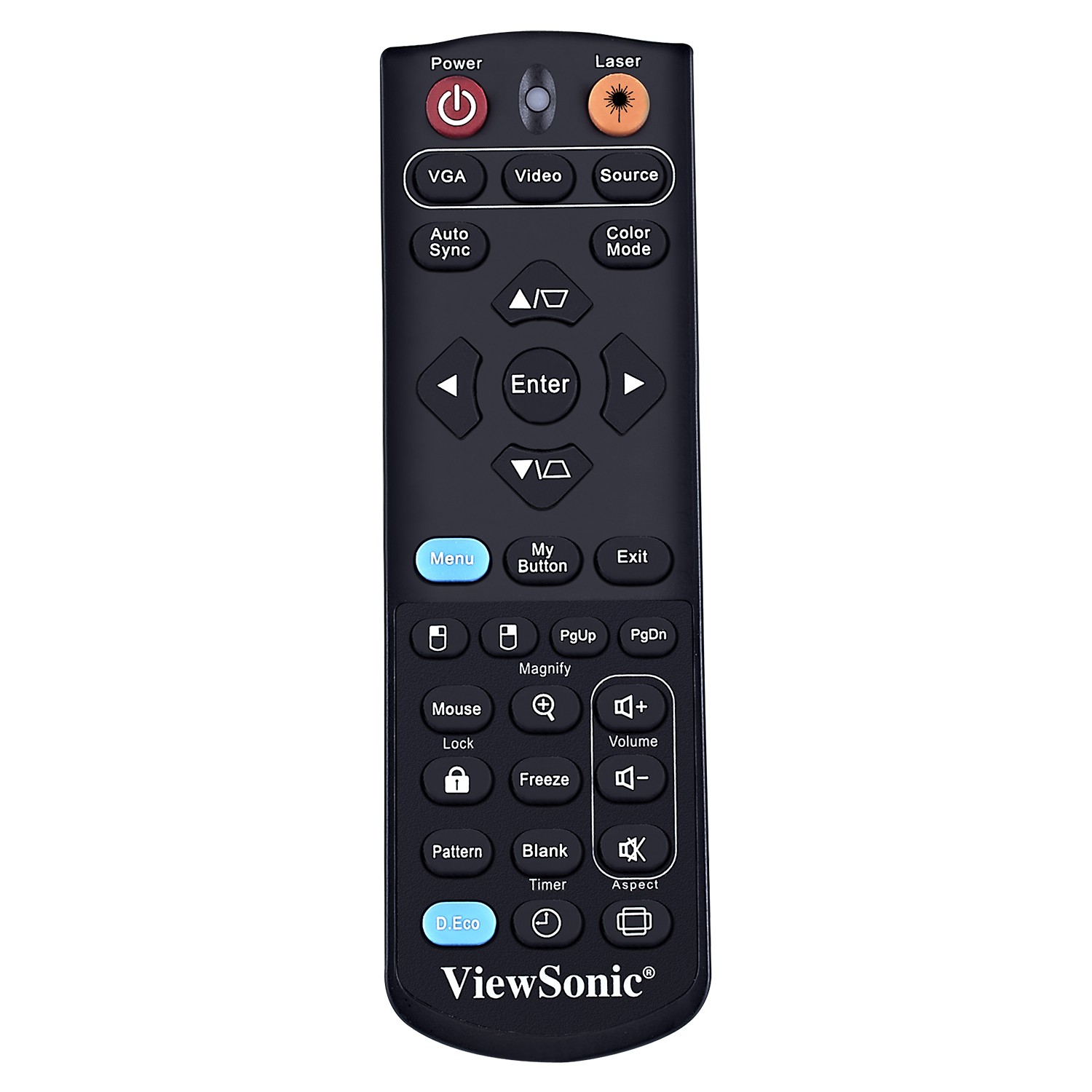

Real Full HD 3D Full HD 1080P compatible Freeze Eco Mode Kensington Slot BrilliantColor™ Remote control with laser pointer und mouse control Optional Wi-Fi network compatible. Lan network compatible. Short-throw projector Crestron®-Software compatible. 6-seg RGBCYW colour wheel Digital zoom 1.6x
Real Full HD 3D
