JVC DLA X590 /R


JVC DLA X590R | JVC DLA X590RBK
Image JVC DLA X590 /R
Customer review
Offer Ads
Discover other popular projectors on Amazon!

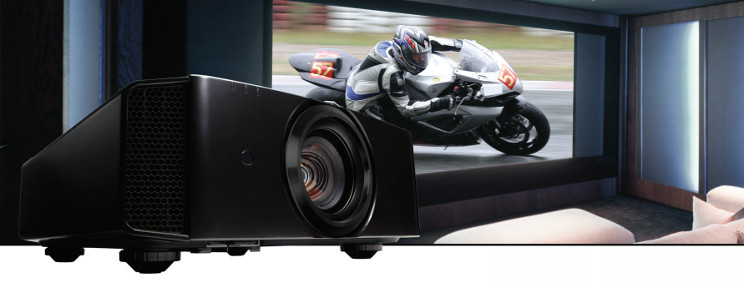

Model Overview The JVC DLA X590 is a 3D-DILA projector offering 1800 ANSI lumens, a contrast of 400000:1 and a resolution of UHD (4K2K) 3840 x 2160.
The presence of a lens shift function enables flexible vertical or horizontal positioning of the projector. The achievable distances are shown in the Projector Calculator.
A look at the light output reveals: The 1800 ANSI lumens are sufficient to illuminate an image width of up to 431 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 287 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
In the specifications, the operating noise is listed at a mere 20 decibels, indicating very quiet cooling. Since entering the market in 2017, production has been discontinued; the manufacturer no longer actively offers the model. However, it remains frequently searched within our database.
Display Type       3 x 0,7" DILA Chip
      HDTV 16/9 Direct-Drive Image Light Amplification (D-ILA)
Ansi-Lumen
Projector
1800
Screen
800 Lux (200 cm Screen width)
Contrast 400000:1 full on/off 400000:1 full on/off
Black Level 0,0045 min. Lumen 0,002 min. Lumen
Lens shift Vert.: +/-80% Hori.: +/-34%
 Lens shift
80%  90cm
80%  90cm
34%  68cm
34%  68cm
+ Projector
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
HD4K 4096 x 2160 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p)
3D Compatibility
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) | 2D-zu-3D Video Converter
Application High-End Homecinema | Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 265W NSH Lamp
Article Nr.: PK-L2615U
Order Lamp
95,21 - 501,20 €
Light Life -
Operating Costs -
Calculated brightness quality Perfect
280 - 560 cm
Lux: 800 Lux
Contrast: 400000:1
Candela pro m²: 254 cd/m²
Foot-Lamberts: 74 fL
90 cm



Screen width:cm
          Room:
Focus Powered
Zoom Powered 2
Objective F=3,2-4,0 f=21,4-42,80 mm
Throw Ratio 1,4-2,8:1 show
Audio Nein
Connections 2 x HDMI 2.0a/2.0b mit HDCP 2.2
D-sub 15 pin in
YUV in
RS232C
RJ45 in
12V Trigger out
Ceiling Mounting Yes, is possible.
Power -
Size WxHxD 455 x 179 x 472 mm (17,9"x7"x18,6") 38,44 L/dm³
Operating Noise 20dB

Shift: 90 cm

Shift: 68 cm

Shift: 68 cm

Shift: 90 cm

Weight 15,60 kg / 34,39 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 74 fL / max. 431 cm screen width
Candela m² 254 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
sRGB
Gamma correction
High Dynamic Range (HDR)
Remote control with backlight
Lan network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The JVC DLA X590 /R compared to others not current "High-End Homecinema" projectors.
Ansi-Lumen:
14 Weight:
71
Contrast:
25 dB:
97
Black level:
100 Power cons.: 0
Picture Total Points:46 Projector Total Points:0
Popularity Top 100
10 popularity points 27 popularity points 22 popularity points 6 popularity points 10 popularity points 12 popularity points
Points:
12
Ranking: 182 (From: 508)
Optional accessories
lamp ruby Ruby-LMP23576189,82 €
lamp OriginalPK-L2615UG / PK-L2615U501,20 €
Compatible lamp LMP-K2357695,21 €
ceiling bracket white Halterung45W83,60 €
Status 2017 Discontinued (EOL) // Last update of the data: 2026-06-09
