Digital Projection TITAN 1080p 660

Image Digital Projection TITAN 1080p 660
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Behind the name TITAN 1080p 660 is a 3D-DLP projector by Digital Projection, whose main features include 10000 ANSI lumens, a contrast of 2000:1 and a HDTV 1920 x 1080 resolution. The runtime of the lamp in this model is estimated at 1500 hours before a replacement is necessary.
In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projection Calculator is available to calculate the exact dimensions.
A look at the light output reveals: The 10000 ANSI lumens are sufficient to illuminate an image width of up to 1016 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 677 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams.
For media input, video signals up to 1080P as well as 3D are supported. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
This model dates back to 2013 and is no longer part of Digital Projection's current product range. For your information: Compatible lamps for this device are no longer available in stores.
Display Type       3 x 0,95" DLP Chip
      HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
10000
Screen
4444 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 5,0000 min. Lumen 2,225 min. Lumen
Lens shift Vert.: +70% -50% Hori.: +/-18%
 Lens shift
70%  79cm
50%  56cm
18%  36cm
18%  36cm
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Event | Very large screen width and rooms with plenty of light and shaded daylight.

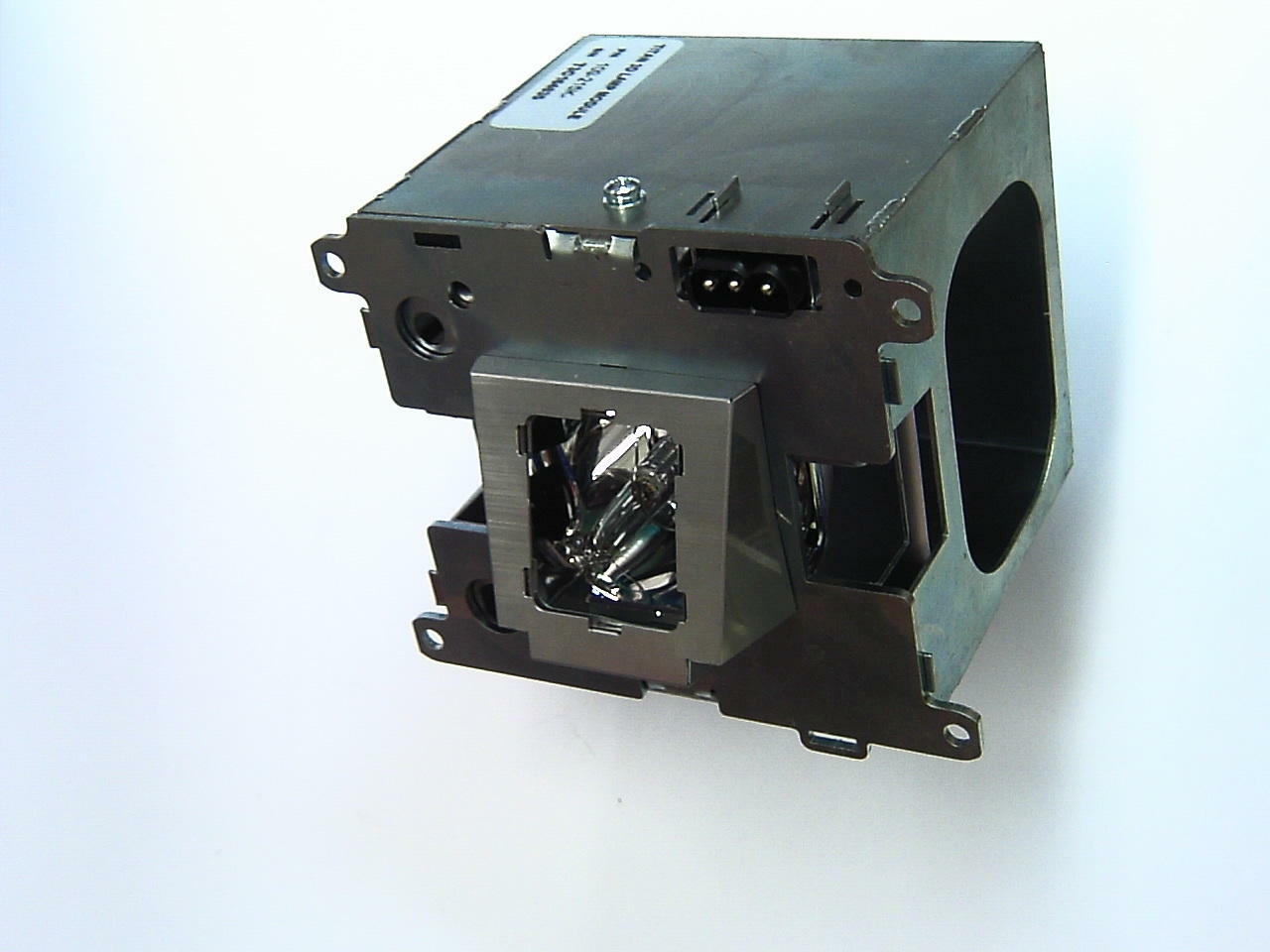

Light Source 2 x 330W Lamp
Article Nr.: 109-319
Order Lamp
Light Life 1500 h. 3000 h. in Eco Mode
Operating Costs -
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 4444 Lux
Contrast: 2000:1
Candela pro m²: 1415 cd/m²
Foot-Lamberts: 413 fL
79 cm


Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio Nein
Connections HDMI 1.4 in
DVI in
SDI in
D-sub 15pin in
4 x BNC YUV in
S-Video in
RJ45
RS232C
Ceiling Mounting Yes, is possible.
Power 950W
Size WxHxD 664 x 253,3 x 568,5 mm (26,1"x10"x22,4") 95,42 L/dm³
Operating Noise 45dB

Shift: 79 cm

Shift: 36 cm

Shift: 36 cm

Shift: 56 cm

Weight 39,00 kg / 85,98 lbs.
Keystone -
Illumination 86%
Frequenz -
Foot-Lamberts 413 fL / max. 1016 cm screen width
Candela m² 1415 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Freeze
Eco Mode
Gamma correction
Edge Blending
Picture-in-Picture
Password protection
Wi-Fi network compatible.
Lan network compatible.
Digital Zoom
De-interlacer with 3:2 2:2 pull down.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Digital Projection TITAN 1080p 660 compared to others not current "Event" projectors.
Ansi-Lumen:
7 Weight:
87
Contrast:
1 dB:
61
Black level:
92 Power cons.:
91
Picture Total Points:33 Projector Total Points:80
Popularity Top 100
13 popularity points 23 popularity points 31 popularity points 32 popularity points 26 popularity points 31 popularity points
Points:
31
Ranking: 227 (From: 590)
Optional accessories
lamp incl. air filter Original110-582EOL €
ceiling bracketHeavyDuty470,94 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
105-613 4.16-6.96:1 832-1392 m 70-50% +/-18%
105-612 2.56-4.16:1 512-832 m 70-50% +/-18%
105-611 1.87-2.56:1 374-512 m 70-50% +/-18% Powered
109-235 6.92-10.36:1 1384-2072 m 70-50% +/-18%
105-610 1.39-1.87:1 278-374 m 70-50% +/-18% Powered
109-236 1.16-1.49:1 232-298 m +/-50% +/-18%
105-607 0.67:1 134 m +/-10% +/-10% No Zoom
105-608 1.12:1 224 m 70-50% +/-18%
Status 2013 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Digital Projection Website
Product Sheet english
Product Sheet english HC
User Manual english (8.24 MB)
