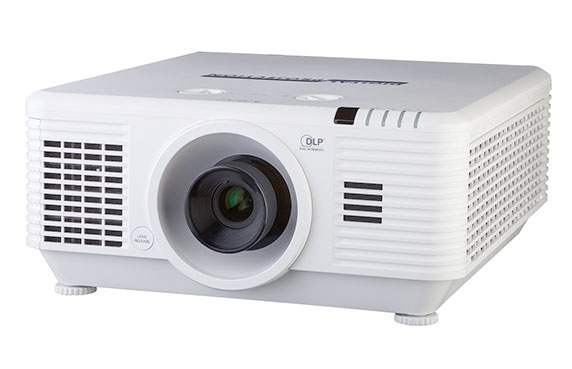

The equipment of the Digital Projection E-Vision Laser 6500 WUXGA projector includes 6500 ANSI lumens, a contrast of 5000:1 with a WUXGA 1920 x 1200 display. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. For precise setup, the device features a lens shift mechanism that allows for purely optical image shifting. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projector Calculator. Regarding projection size, the value of 6500 ANSI lumens allows for an image width of up to 819 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 546 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. This model dates back to 2016 and is no longer part of Digital Projection's current product range. This model continues to hold a solid place in our database search queries.
Display Type
1 x 0,67" DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2889 Lux
Contrast:
5000:1
Candela pro m²:
918 cd/m²
Foot-Lamberts:
268 fL
62 cm
•
Focus
Manual
Zoom
Manual
Objective
Throw Ratio
optional
Audio
-
Connections
2 x HDMI 1.4b in
DVI-I in
D-sub 15pin in und out
5 x BNC RGBHV in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in und out
RJ45 mit HDBaseT in
12V Trigger out
3D Sync In und out
Real Full HD 3D
Digital Projection Website
Product Sheet english
