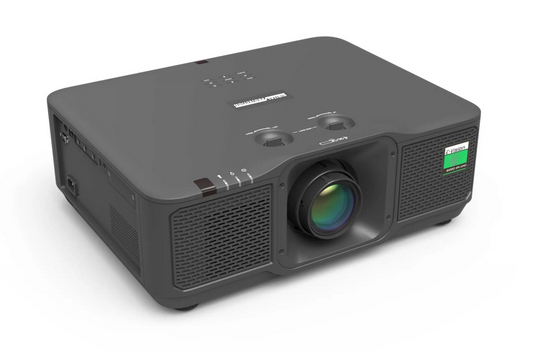

The E-Vision 6220 4K-UHD model from Digital Projection combines DLP technology in the Stationary sector with 5700 ANSI lumens, a contrast of 3000000:1 and a native WUXGA 1920 x 1200 resolution. With its laser unit, the projector offers a specified light lifespan of 30000 hours, covering an estimated 20.5 years based on a 4-hour daily runtime. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Lens Calculator. Looking at practical performance, up to 767 cm can be illuminated with 5700 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 511 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Display Type
1 x 0,65" 4K-UHD VSP DMD DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5700
Screen
2533 Lux (200 cm Screen width)
Contrast
3000000:1 full on/off
3000000:1 full on/off
Black Level
0,0019 min. Lumen
0,001 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel UHD (4K2K) 3840 x 2160 compressed
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) | | 2D-zu-3D Video Converter
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
Laser
Light Life
30000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2533 Lux
Contrast:
3000000:1
Candela pro m²:
805 cd/m²
Foot-Lamberts:
235 fL
•
Focus
Manual
Zoom
Manual Digital Zoom
Objective
Throw Ratio
optional
Audio
-
Connections
DisplayPort 1.2
2x HDMI 2.0 in und 1x out (HDCP 2.3)
2x HDMI 1.4 in (for dual-pipe 3D)
3D Sync Out
3G-SDI with loop-through
Mini Jack Audio out
USB-A (5V/2A) in
Serial RS-232C in
RJ45 in
Real Full HD 3D Full HD 1080P compatible Blank (Black screen button) User logo Eco Mode Kensington Slot High Dynamic Range (HDR) Warping 360° installable 24/7 continuous operation capable Edge Blending Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. Free Digital Projection Controller II Software 4P Keystone Golf Mode DICOM Simulation Pan-and-Scan Auto Input Detection Support for transmission of uncompressed high-definition video up to 100m (Cat5e/6 LAN) Refresh rate: 120Hz @ WUXGA, 60Hz @ 4K
Real Full HD 3D
