Digital Projection Eon XGA 6000

Image Digital Projection Eon XGA 6000
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview As a projector for the Stationary sector, the Digital Projection Eon XGA 6000 is equipped with 6000 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 2400:1. The manufacturer lists the lamp life at 2000 hours.
In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Lens Calculator.
Looking at practical performance, up to 675 cm can be illuminated with 6000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 450 cm.
For media input, video signals up to 1080P are supported. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
The projector was released in 2009 and is officially no longer distributed by Digital Projection.
Display Type       1 x 0,65" DLP Chip
      XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
6000
Screen
2000 Lux (200 cm Screen width)
Contrast 2400:1 full on/off 2400:1 full on/off
Black Level 2,5000 min. Lumen 0,834 min. Lumen
Lens shift Vert.: +50% -0% Hori.: +/-10%
 Lens shift
50%  75cm
0%  0cm
10%  20cm
10%  20cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source -
Article Nr.: 109-804
Order Lamp
60,99 - 435,35 €
Light Life 2000 h. 6000 h. in Eco Mode
Operating Costs
| cheap costly |
1
 6,4% / 0,22 €
Calculated brightness quality
The screen width may also be larger. Perfect
Lux: 2000 Lux
Contrast: 2400:1
Candela pro m²: 637 cd/m²
Foot-Lamberts: 186 fL
75 cm

Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio -
Connections DVI in
D-sub 15 pin in und out
5 x BNC RGBHV in
YUV in
S-Video in
Cinch Video in
Mini Jack Video in und out
RS232C in
RJ45 in
Ceiling Mounting Yes, is possible.
Power 730W
Size WxHxD 385 x 194 x 505 mm (15,2"x7,6"x19,9") 37,72 L/dm³
Operating Noise 39 / 34 dB in Eco Mode

Shift: 75 cm

Shift: 20 cm

Shift: 20 cm

Weight 20,00 kg / 44,09 lbs.
Keystone -
Illumination 86%
Frequenz -
Foot-Lamberts 186 fL / max. 675 cm screen width
Candela m² 637 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Eco Mode
BrilliantColor™
Lan network compatible.
Screen Mirroring -
In Comparison
The Digital Projection Eon XGA 6000 compared to others not current "Stationary" projectors.
Ansi-Lumen:
59 Weight:
93
Contrast:
1 dB:
94
Black level:
93 Power cons.:
91
Picture Total Points:51 Projector Total Points:93
Popularity Top 100
1 popularity points 7 popularity points 6 popularity points 0 popularity points 5 popularity points 2 popularity points
Points:
2
Ranking: 1746 (From: 2536)
Optional accessories

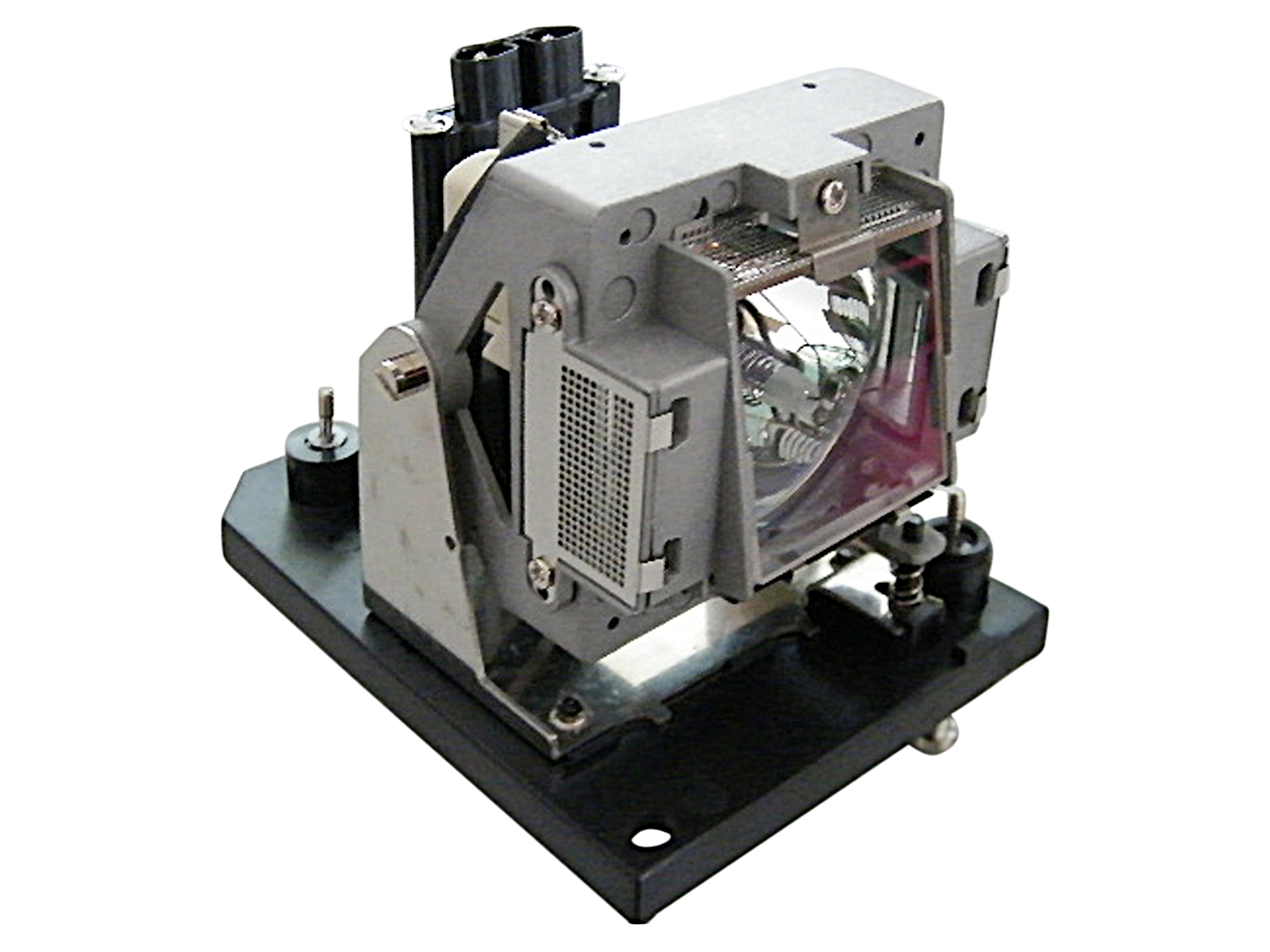

Osram bulb only NLMP1942384,07 €
lamp ruby Ruby-LMP19423107,47 €
lamp Original109-804435,35 €
Compatible lamp LMP-K1942260,99 €
ceiling bracket white Halterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
Status 2009 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Digital Projection Website
Product Sheet english HC
User Manual english (9.16 MB)
