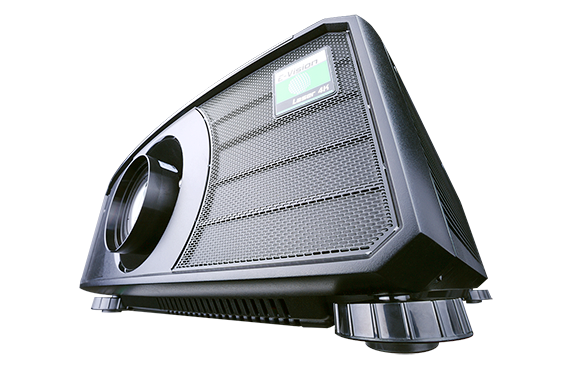

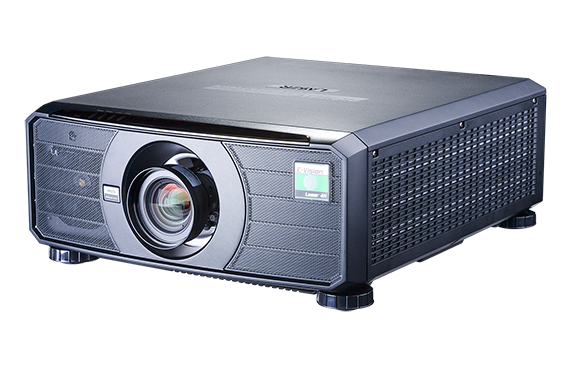

According to Digital Projection, the E-Vision 13000 model provides 11500 ANSI lumens, a contrast ratio of 10000:1 alongside a WUXGA 1920 x 1200 resolution. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projector Calculator. A look at the light output reveals: The 11500 ANSI lumens are sufficient to illuminate an image width of up to 1090 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 727 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. The projector was released in 2018 and is officially no longer distributed by Digital Projection. However, it remains frequently searched within our database.
Display Type
1 x 0,67" Dark DMD Chip WUXGA 16/9 Ti Digital Light Processing Chip
E-Cinema | Digital Cinema (D-Cinema) in the movie theater. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
5111 Lux
Contrast:
10000:1
Candela pro m²:
1627 cd/m²
Foot-Lamberts:
475 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2 x HDMI in
DVI in
Display Port
3G SDI in und out
3D Sync in und out
D-sub 15pin in und out
Component Video in
RS232C Din 9 pin in
RJ45 in
HDBaseT
Wired Remote
Real Full HD 3D Full HD 1080P compatible Eco Mode Kensington Slot 24/7 continuous operation capable Edge Blending Picture-in-Picture PJLink™ Lan network compatible. Crestron®-Software compatible. AMX
Real Full HD 3D
Digital Projection Website
Product Sheet english
