Digital Projection E Vision WXGA 600


Digital Projection E-Vision WXGA 600 Black | Digital Projection E-Vision WXGA 600 White
Image Digital Projection E Vision WXGA 600
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Behind the name E Vision WXGA 600 is a Laser-BrilliantColor-DLP projector by Digital Projection, whose main features include 6000 ANSI lumens, a contrast of 2400:1 and a WXGA 1280 x 800 resolution. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projector Calculator.
Looking at practical performance, up to 787 cm can be illuminated with 6000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 525 cm.
Regarding signal processing, the model is compatible with incoming 1080P content. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
The projector was released in 2010 and is officially no longer distributed by Digital Projection.
Display Type       1 x 0,65" DLP Chip
      WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
6000
Screen
2400 Lux (200 cm Screen width)
Contrast 2400:1 full on/off 2400:1 full on/off
Black Level 2,5000 min. Lumen 1,001 min. Lumen
Offset -
Resolution WXGA 1280 x 800
1.024.000 Pixel
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source -
Article Nr.: 110-284
Order Lamp
57,82 - 435,35 €
Light Life 2000 h.
Operating Costs
| cheap costly |
1
 6,4% / 0,22 €
Calculated brightness quality
The screen width may also be larger. Perfect
Lux: 2400 Lux
Contrast: 2400:1
Candela pro m²: 764 cd/m²
Foot-Lamberts: 223 fL

Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio -
Connections D-sub 15 pin in
5 x BNC RGBHV in
YUV in
S-Video in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting Yes, is possible.
Power 730W
Size WxHxD -
Operating Noise 39 / 34 dB in Eco Mode

Weight 20,00 kg / 44,09 lbs.
Keystone -
Illumination -
Frequenz H-sync: 15-90 kHz
V-sync: 50-85 Hz
Foot-Lamberts 223 fL / max. 787 cm screen width
Candela m² 764 cd/m²
Features Full HD 1080P compatible
Direkt Power Off
Freeze
Blank (Black screen button)
Eco Mode
Kensington Slot
Gamma correction
Password protection
BrilliantColor™
PJLink™
Control via web browser
Lan network compatible.
Overscan adjustable
Screen Mirroring -
In Comparison
The Digital Projection E Vision WXGA 600 compared to others not current "Stationary" projectors.
Ansi-Lumen:
59 Weight:
93
Contrast:
1 dB:
94
Black level:
93 Power cons.:
91
Picture Total Points:51 Projector Total Points:93
Popularity Top 100
6 popularity points 10 popularity points 10 popularity points 1 popularity points 7 popularity points 3 popularity points
Points:
3
Ranking: 1275 (From: 2536)
Optional accessories

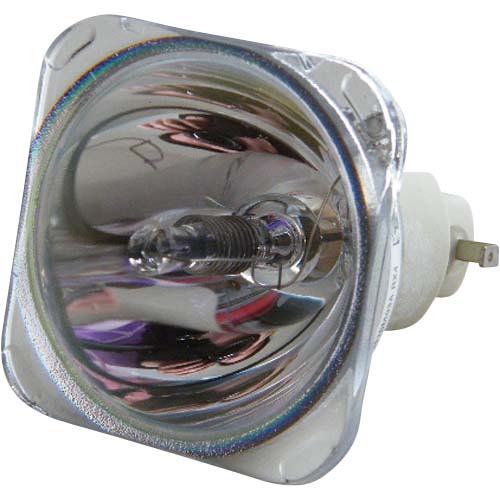

Osram bulb only NLMP2050884,07 €
lamp ruby Ruby-LMP20508107,47 €
lamp Original110-284435,35 €
Compatible lamp LMP-K2045157,82 €
Ceiling Mount 100-120 Halterung10047,86 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
109-548 4.43-8.3:1 886-1660 m 50% Powered
109-547 2.22-4.43:1 444-886 m 50% Powered
109-546 1.78-2.35:1 356-470 m 50% Powered
109-544 0.77:1 154 m No Zoom
109-545 1.33:1 266 m 50% No Zoom
Status 2010 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Digital Projection Website
Product Sheet english
Product Sheet english 2
Product Sheet english HC
User Manual english (10.78 MB)
