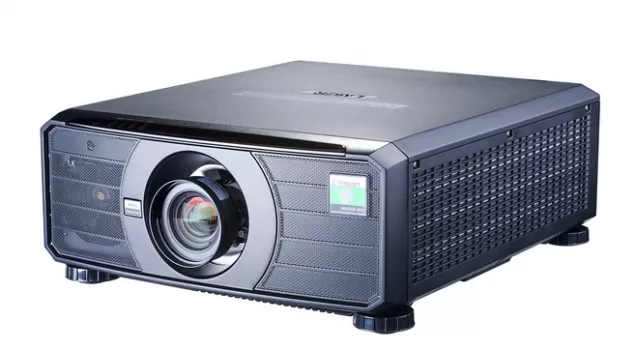

The projector E-Vision 10000i 4K+ RGB by Digital Projection utilizes DLP technology and, according to the spec sheet, achieves 9000 ANSI lumens, a contrast of 10000:1 at a resolution of UHD (4K2K+) 3840 x 2400. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projector Calculator. A look at the light output reveals: The 9000 ANSI lumens are sufficient to illuminate an image width of up to 826 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 551 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Display Type
1 x 0,8" HEP DMD DLP Chip UHD 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
9000
Screen
3000 Lux (200 cm Screen width)
Contrast
10000:1 full on/off
10000:1 full on/off
Black Level
0,9000 min. Lumen
0,3 min. Lumen
Offset
-
Resolution
UHD (4K2K+) 3840 x 2400
9.216.000 Pixel / WUXGA E-Shift
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
3000 Lux
Contrast:
10000:1
Candela pro m²:
956 cd/m²
Foot-Lamberts:
279 fL
•
Focus
Powered
Zoom
Powered 100% Digital Zoom
Objective
Throw Ratio
optional
Audio
Nein
Connections
2x HDMI 2.0 in (HDCP)
DisplayPort 1.2
12G-SDI in BNC
3G-SDI out BNC
USB-A in
RJ45
RS232C in und out
Wired Remote in und out
12V Trigger
Full HD 1080P compatible
