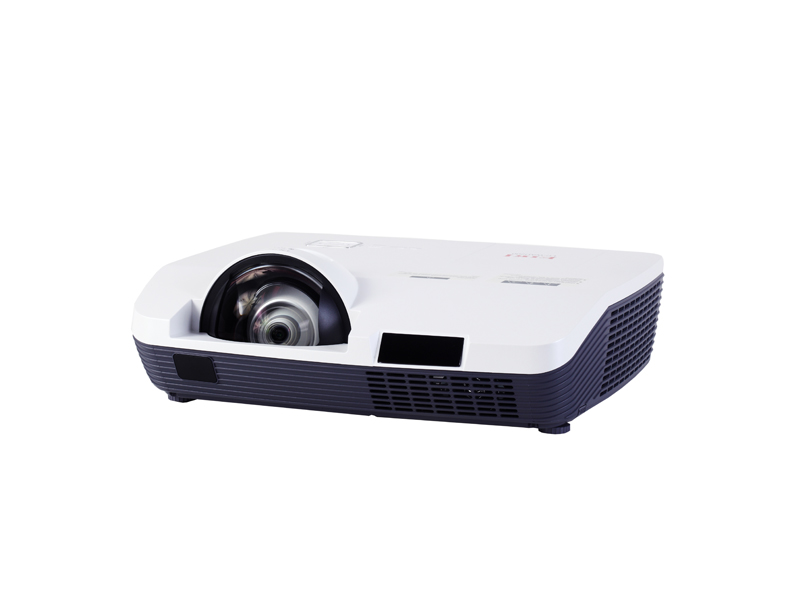

Categorized in the Whiteboard segment, the LC-WAU210 projector from Eiki projects with a WXGA 1280 x 800 resolution, alongside 3000 ANSI lumens and a contrast of 3000:1. In operating mode, the installed projector lamp offers a lifespan of 3000 hours. Looking at practical performance, up to 556 cm can be illuminated with 3000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 371 cm. Regarding signal processing, the model is compatible with incoming 1080P content. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Specifically for the educational or business sector, an interactive whiteboard function is also integrated. The projector was released in 2014 and is officially no longer distributed by Eiki. As an archive device, the projector remains highly relevant in our database.
Display Type
3 x 0,59" LCD TFT Panel mit MLA WXGA 16/10 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3000
Screen
1200 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
1,0000 min. Lumen
0,4 min. Lumen
Offset
-
Resolution
WXGA 1280 x 800
1.024.000 Pixel WUXGA 1920 x 1200 compressed
Whiteboard | Training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source
230W NSH Lamp
Light Life
3000 h. 5000 h. in Eco Mode
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
92 cm (no Zoom)
Lux:
1200 Lux
Contrast:
3000:1
Candela pro m²:
380 cd/m²
Foot-Lamberts:
111 fL
•
Focus
Manual
Zoom
No Zoom
Objective
F=1,8 f=6,08mm
Throw Ratio
0,46:1
Audio
-
Connections
HDMI in
2 x D-sub 15pin in 1 x out
YUV in
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
290W
Size WxHxD
391,2 x 126,3 x 329,2 mm (15,4"x5"x13") 16,21 L/dm³
Operating Noise
34dB
Key: 25 cm
Without offset
Key: 25 cm
Weight
4,00 kg / 8,82 lbs.
Keystone
Vert.: +/-15°
Illumination
80%
Frequenz
H-sync: 15-100 kHz V-sync: 48-85 Hz Range max.: 150 MHz
Full HD 1080P compatible
Eiki Contact
Product Sheet english HC
