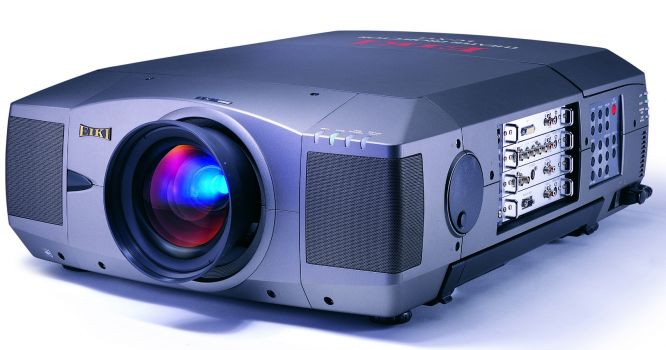

This projector from Eiki utilizes LCD technology, achieving 10000 ANSI lumens and a contrast of 1000:1 at a resolution of XGA 1024 x 768. According to Eiki, the included lamp lasts up to 2000 hours. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projector Calculator. Looking at practical performance, up to 871 cm can be illuminated with 10000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 581 cm. The projector was released in 2002 and is officially no longer distributed by Eiki. This model continues to hold a solid place in our database search queries.
Display Type
3 x 1,8" LCD TFT Panel und PBS XGA 4/3 Liquid Crystal Display
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3333 Lux
Contrast:
1000:1
Candela pro m²:
1062 cd/m²
Foot-Lamberts:
310 fL
75 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
2 x 3W Stereo
Connections
Input 1:
1 x DVI-I (Digital und Analog)
2 x RCA (R, L) für Audio,
1 x Mini DIN 8-PIN (Maus-Kontroll-Anschluß)
Input 2:
1 x BNC x 5 (R, G, B, H, V & Y, Pb/Cb, Pr/Cr),
2 x RCA (R, L) für Audio
1 x Mini DIN 8-PIN (Maus-Kontroll-Anschluß)
Input 3:
2 x BNC Composite und S-Video
1 x Mini DIN 4-PIN S-Video,
2 x RCA (R, L)
Input 4:
1 x D-SUB 15
2 x RCA (R, L)
1 x Mini DIN 8-PIN (Maus-Kontroll-Anschluß)
Ceiling Mounting
Yes, is possible.
Power
1500W
Size WxHxD
581 x 250 x 792 mm (22,9"x9,8"x31,2") 115,04 L/dm³
Operating Noise
46dB
Shift: 75 cm
Shift: 20 cm
Shift: 20 cm
Shift: 75 cm
Weight
35,50 kg / 78,26 lbs.
Keystone
Vert.: +/-40°
Illumination
-
Frequenz
H-sync: 15-120 kHz V-sync: 50-120 Hz Range max.: 230 MHz
Lens shift Funktion motorisch Freeze Gamma correction Remote control with laser pointer Optional LAN network compatible. digital zoom 2-lamp and 4-lamp mode
Lens shift Funktion motorisch
