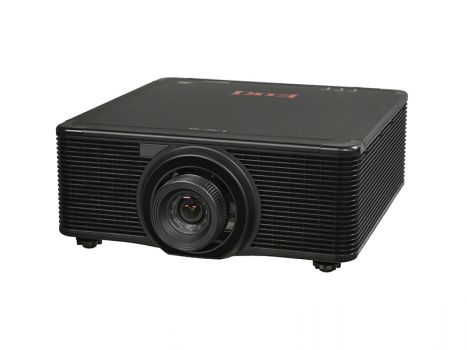

The equipment of the Eiki EK-621W projector includes 6500 ANSI lumens, a contrast of 100000:1 with a WXGA 1280 x 800 display. With its laser unit, the projector offers a specified light lifespan of 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projection Calculator. A look at the light output reveals: The 6500 ANSI lumens are sufficient to illuminate an image width of up to 819 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 546 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. For media input, video signals up to 1080P as well as 3D are supported, and also offers the technical capability for 360° projection. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. The projector was released in 2016 and is officially no longer distributed by Eiki.
Display Type
1 x DLP 0,65" Chip WXGA 16/10 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2600 Lux
Contrast:
100000:1
Candela pro m²:
829 cd/m²
Foot-Lamberts:
242 fL
63 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
1 x HDMI in 1 x out
DVI-D in
D-sub 15pin in
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
Ceiling Mounting
Yes, is possible.
Power
860W
Size WxHxD
484 x 200 x 530 mm (19,1"x7,9"x20,9") 51,3 L/dm³
Operating Noise
35 / 32 dB in Eco Mode
Shift: 63 cm
Shift: 30 cm
Shift: 30 cm
Shift: 63 cm
Weight
23,40 kg / 51,59 lbs.
Keystone
Vert.: +/-20° Hori.: +/-20°
Illumination
-
Frequenz
H-sync: 15,31-91,4 kHz V-sync: 24-120 Hz Range max.: 162 MHz
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot Warping 360° installable Edge Blending Password protection Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. DICOM Simulation
Real Full HD 3D
