Eiki LC X8

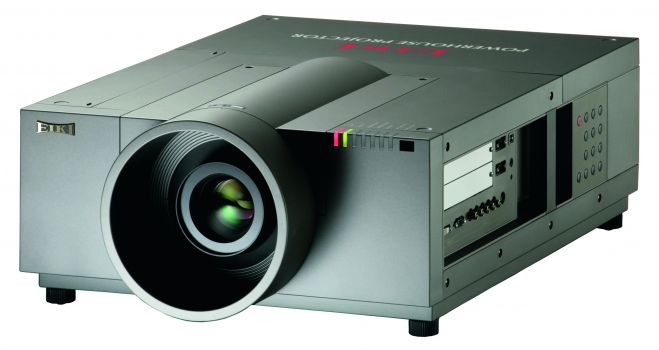

Image Eiki LC X8
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on LCD technology, the Eiki LC X8 device delivers 10000 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 3000:1 as a projector. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary.
For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projection Calculator.
Regarding projection size, the value of 10000 ANSI lumens allows for an image width of up to 871 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 581 cm.
Regarding signal processing, the model is compatible with incoming 1080P content.
Since entering the market in 2009, production has been discontinued; the manufacturer no longer actively offers the model. This model continues to hold a solid place in our database search queries.
Display Type       3 x 1,8" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 10000 / 5000 im singel Lamp Mode
Screen
 3333 Lux (200 cm Screen width)
Contrast 3000:1 full on/off 3000:1 full on/off
Black Level 3,3333 min. Lumen 1,112 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-10%
 Lens shift
 		50%  75cm
50%  75cm
10%  20cm
10%  20cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source 2 x 330W NSHA Lamp
Article Nr.: 610 341 9497
Order Lamp
69,60 - 176,16 €
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 3333 Lux
Contrast: 3000:1
Candela pro m²: 1062 cd/m²
Foot-Lamberts: 310 fL
75 cm

Screen width:cm
          Room:
•
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio -
Connections DVI-D mit HDCP in
5 x BNC RGBHV in
RS232C Din 9 pin in
Weitere Anschlüsse optional.
Ceiling Mounting Yes, is possible.
Power 950 / 780W in Eco Mode
Size WxHxD 530 x 267,5 x 757 mm (20,9"x10,5"x29,8") 107,12 L/dm³
Operating Noise 46 / 45 dB in Eco Mode

Shift: 75 cm

Shift: 20 cm

Shift: 20 cm

Shift: 75 cm
Weight 27,60 kg / 60,85 lbs.
Keystone Vert.: +/-40°
Hori.: +/-20°
Illumination 90%
Frequenz H-sync: 15-120 kHz
V-sync: 48-120 Hz
Range max.: 230 MHz
Foot-Lamberts 310 fL / max. 871 cm screen width
Candela m² 1062 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Freeze
User logo
Eco Mode
Kensington Slot
Gamma correction
Screen Mirroring -
In Comparison
The Eiki LC X8 compared to others not current "Event" projectors.
Ansi-Lumen:
7 Weight:
92
Contrast:
1 dB:
58
Black level:
94 Power cons.:
91
Picture Total Points:34 Projector Total Points:80
Popularity Top 100
11 popularity points 37 popularity points 46 popularity points 51 popularity points 37 popularity points 57 popularity points
Points:
57
Ranking: 37 (From: 590)
Optional accessories
bulb only NLMP18700147,98 €
lamp ruby Ruby-LMP18700176,16 €
lamp Original610-341-9497 / LMP128 / ET-SLMP128EOL €
Compatible lamp LMP-K1870069,60 €
Universal Remote Fernb-uni-V322,31 €
remote control Original6451024589 / CXZLEOL €
air filter OriginalPOA-FIL-180 / 610-335-9830 / ET-SFYL180EOL €
ceiling bracket blackHalterung4583,60 €
ceiling bracket whiteHalterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
AH-32581 (T03) 6.08-8.82:1 1216-1764 m +/-40% +/-10% Powered
0001-4261 5-8.53:1 1000-1706 m +/-40% Manual
AH-21091 (T02) 4.29-6:1 858-1200 m +/-40% +/-10% Powered
AH-21022 (M01Z) 3.38-4.39:1 676-878 m +/-40% +/-10% Powered
0001-4260 3.09-4.39:1 618-878 m +/-40% Manual
AH-22051 (S03) 2.63-3.56:1 526-712 m +/-40% +/-10% Powered
0001-4297 1.9-3.45:1 380-690 m +/-40% Manual
AH-21102 (S02Z) 2.05-2.65:1 410-530 m +/-50% +/-10% Powered
AH-32401 (W04) 1.55-2.03:1 310-406 m +/-40% +/-10% Powered
0001-4299 7.37-12.61:1 1474-2522 m +/-40% Manual
AH-21202 (W02Z) 1.42-1.84:1 284-368 m +/-40% +/-10% Powered
AH-32601 (W06) 1.22-1.55:1 244-310 m +/-40% +/-10% Powered
(T01Z) 7:1 1400 m +/-40% +/-10% No Zoom
AH-21012 (W01Z) 1.21:1 242 m +/-40% +/-10% No Zoom
AH-32021 (W03) 0.81:1 162 m 0.0% Fix No Zoom
Status 2009 Discontinued (EOL) // Last update of the data: 2026-06-09
