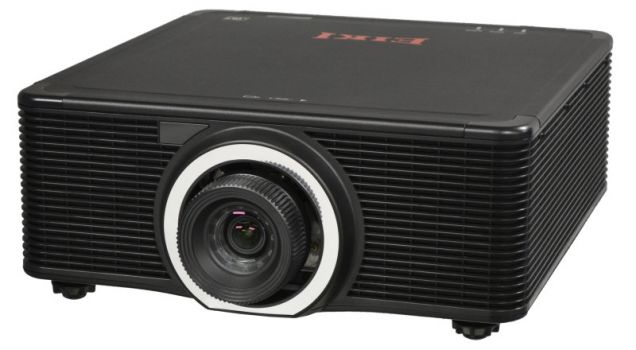

The Eiki EK-811W is a 3D-Laser-DLP projector that brings 8000 ANSI lumens, a WXGA 1280 x 800 resolution alongside a contrast of 100000:1. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Lens Calculator. Regarding projection size, the value of 8000 ANSI lumens allows for an image width of up to 909 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 606 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. Since entering the market in 2016, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
-
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3200 Lux
Contrast:
100000:1
Candela pro m²:
1018 cd/m²
Foot-Lamberts:
297 fL
63 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
HDMI in
DVI-D in
D-sub 15pin in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
Ceiling Mounting
Yes, is possible.
Power
860W
Size WxHxD
484 x 190,9 x 529 mm (19,1"x7,5"x20,8") 48,65 L/dm³
Operating Noise
35 / 33 dB in Eco Mode
Shift: 63 cm
Shift: 30 cm
Shift: 30 cm
Shift: 63 cm
Weight
24,00 kg / 52,91 lbs.
Keystone
Vert.: +/-20° Hori.: +/-20°
Illumination
-
Frequenz
H-sync: 15,7-91,14 kHz V-sync: 24-120 Hz Range max.: 162 MHz
Real Full HD 3D
Eiki Contact
Product Sheet english
