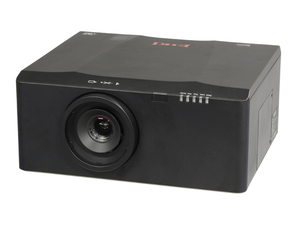

The EK-611W is a 3D-LED-DLP projector by Eiki, whose specifications list 6500 ANSI lumens, a contrast of 4400:1 and a WXGA 1280 x 800 resolution. The manufacturer specifies a runtime of 2000 hours for this projector's lamp. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projection Calculator. Looking at practical performance, up to 819 cm can be illuminated with 6500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 546 cm. For media input, video signals up to 1080P are supported. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. The projector was released in 2016 and is officially no longer distributed by Eiki.
Display Type
1 x 0,67" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2600 Lux
Contrast:
4400:1
Candela pro m²:
829 cd/m²
Foot-Lamberts:
242 fL
63 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
HDMI in
DVI-D in
D-sub 15pin in
YUV in
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in
USB Typ A in
RS232C Din 9 pin in
RJ45 in
1 x HDBaseT
Ceiling Mounting
Yes, is possible.
Power
580 / 450W in Eco Mode
Size WxHxD
453 x 207 x 390 mm (17,8"x8,1"x15,4") 36,57 L/dm³
Operating Noise
39 / 34 dB in Eco Mode
Shift: 63 cm
Shift: 30 cm
Shift: 30 cm
Shift: 63 cm
Weight
14,00 kg / 30,86 lbs.
Keystone
Vert.: +/-20° Hori.: +/-20°
Illumination
90%
Frequenz
H-sync: 15,7-91,1 kHz V-sync: 24-85 Hz Range max.: 162 MHz
Full HD 1080P compatible
Eiki Contact
Product Sheet english
